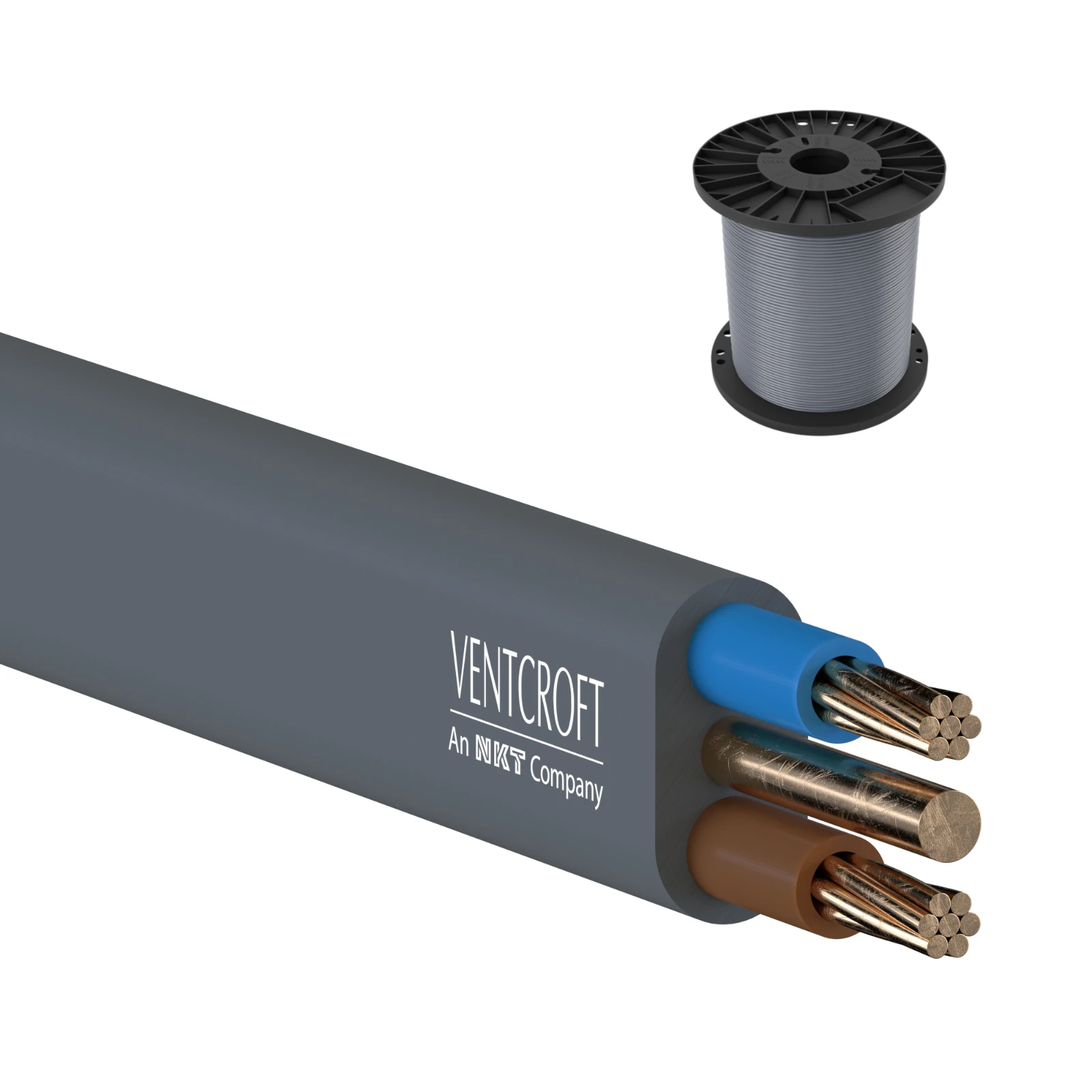

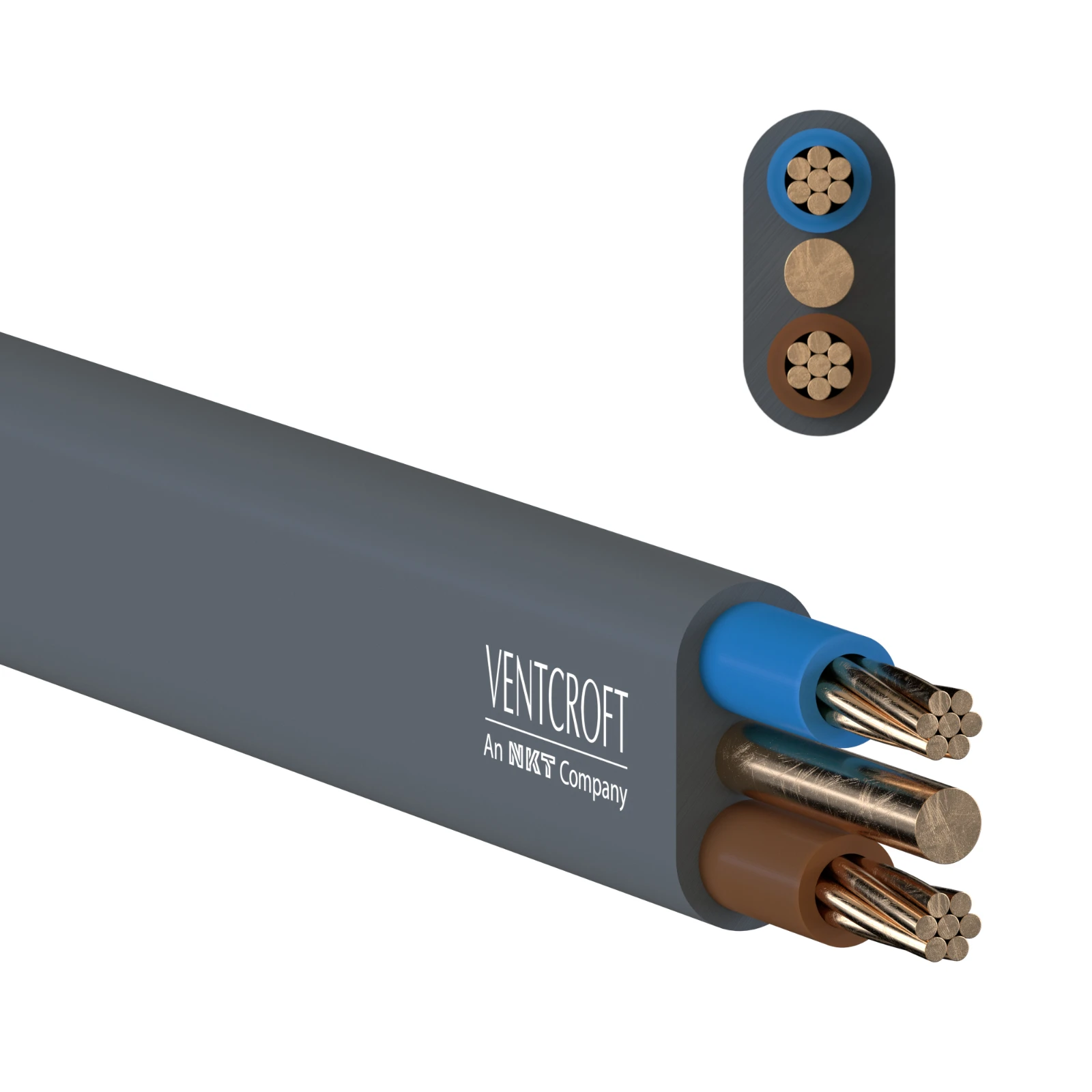

NKT instal 4.0mm Grey Twin and Earth Cable 100m PVC Basec 6242Y

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Armouring/reinforcement None Sheath colour Grey Protective barrier None Reaction-to-fire according to EN 13501-6: Smoke production None Reaction-to-fire according to EN 13501-6: Acidity None Reaction-to-fire according to EN 13501-6: Flaming droplets/particles None Reaction-to-fire according to EN 13501-6: Class Eca Conductor category Class 1 = solid Conductor material Copper Core identification Colour Conductor surface Bare Cable geometry Flat Sheath material Polyvinyl chloride (PVC) Core insulation material Polyvinyl chloride (PVC) Shape of conductor Round Core colour Several Weight 172 kg/km Conductor resistance at 20 °C 4.61 Ohm/km Nominal voltage U0 300 V Min. permitted bending radius, stationary application/permanent installation 4 mm Max. conductor temperature 70 °C Number of cores 2 Nominal cross sectional area of conductor 4 mm² Nominal voltage U 500 V Permitted cable outer temperature during assembling/handling -5 °C Permitted cable outer temperature after assembling without vibration -40 °C Screen No With protective conductor Yes Drain wire No Oil resistant according to IEC 60811-404 No Certified as airport lighting cable No Certified for shipboard application No Twisted cores No Suitable as installation cable Yes Low temperature resistant according to EN 60811-504+505+506 No Core identification according to HD 308 S2 Yes · Technical Data Sheet – Click to Download
