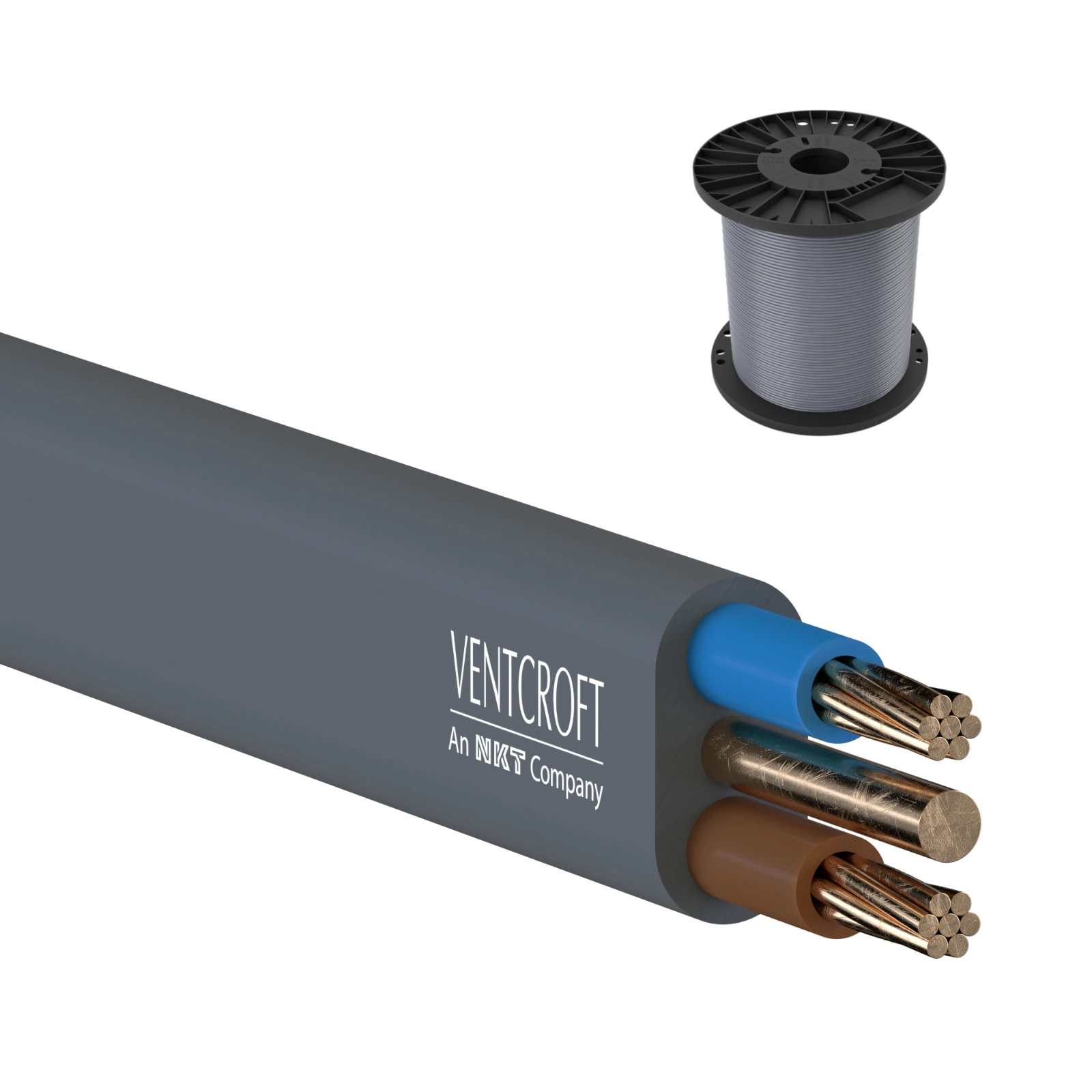

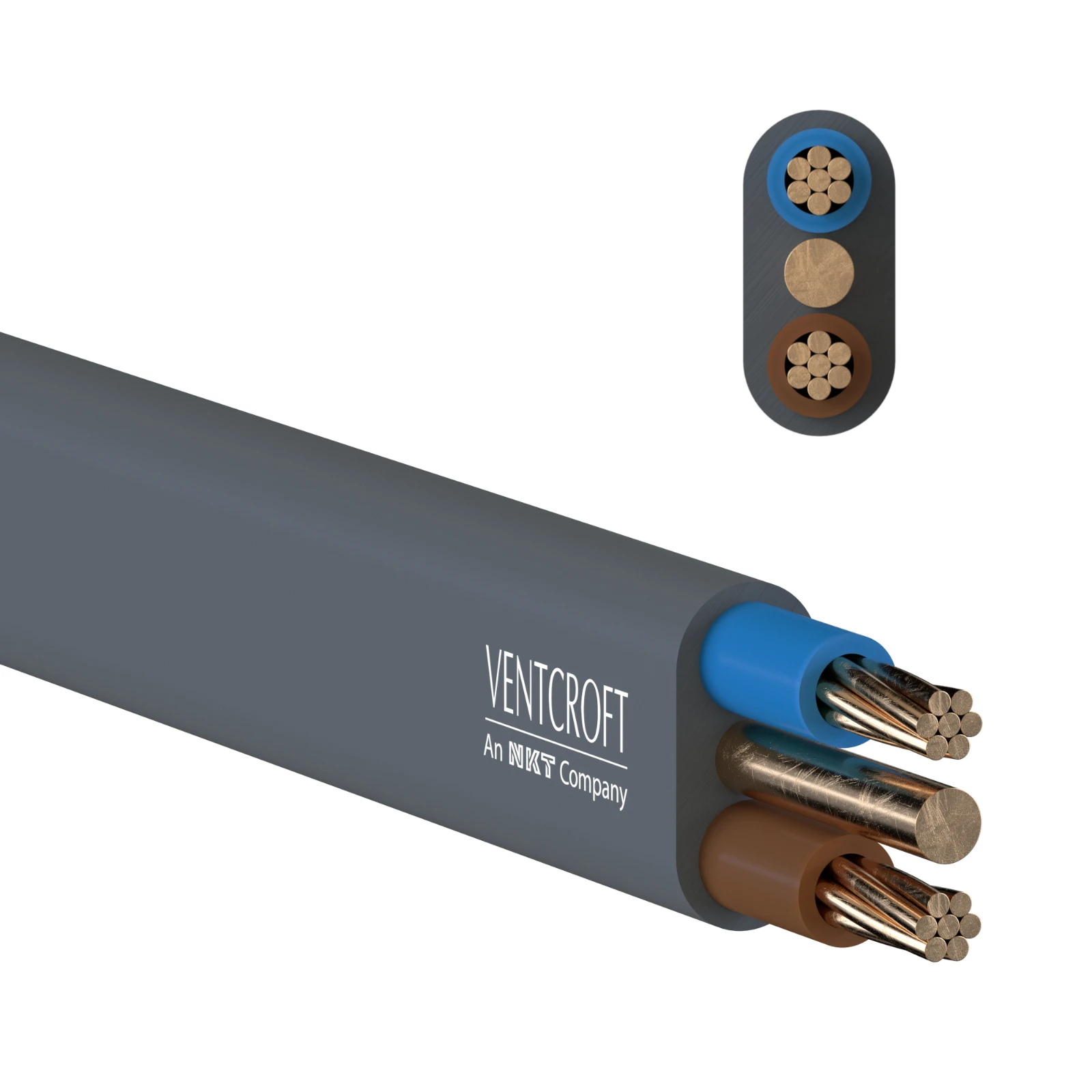

NKT instal 6.0mm Grey Twin and Earth Cable 100M PVC Basec 6242Y

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Reaction-to-fire according to EN 13501-6: Smoke production None Armouring/reinforcement None Sheath colour Grey Reaction-to-fire according to EN 13501-6: Class Eca Conductor material Copper Shape of conductor Round Core colour Several Conductor category Class 1 = solid Reaction-to-fire according to EN 13501-6: Flaming droplets/particles None Reaction-to-fire according to EN 13501-6: Acidity None Protective barrier None Core insulation material Polyvinyl chloride (PVC) Sheath material Polyvinyl chloride (PVC) Cable geometry Flat Conductor surface Bare Number of cores 2 Nominal cross sectional area of conductor 6 mm² Core identification Colour Nominal voltage U 500 V With protective conductor Yes Permitted cable outer temperature after assembling without vibration -40 °C Permitted cable outer temperature during assembling/handling -5 °C Weight 222 kg/km Conductor resistance at 20 °C 3.08 Ohm/km Nominal voltage U0 300 V Min. permitted bending radius, stationary application/permanent installation 4 mm Max. conductor temperature 70 °C Drain wire No Certified as airport lighting cable No Twisted cores No Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No Core identification according to HD 308 S2 Yes Certified for shipboard application No Suitable as installation cable Yes · Technical Data Sheet – Click to Download
