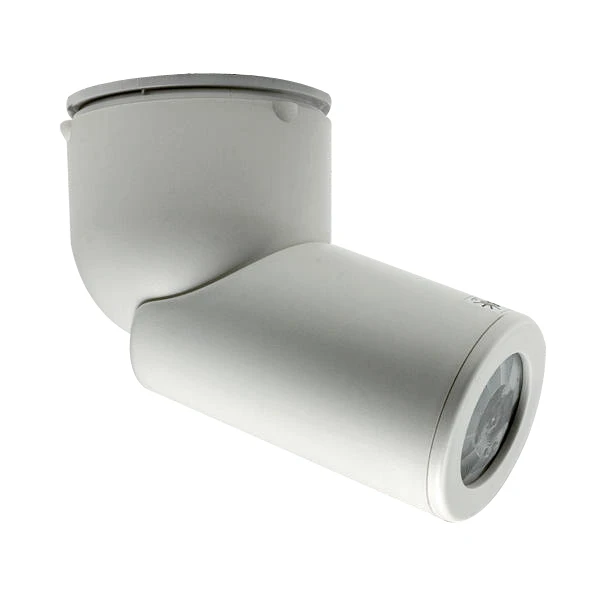

Danlers Occupancy Switch Directional PIR Plug In 230V
Danlers PIR Occupancy Switch plug into a ceiling mounted socket. The socket can be mounted on a BESA box. It is long narrow detection range, ideal for corridors and storage aisles. Features with adjustable time lag settings and photocell override. It switches up to 6 amps (1500W) of resistive, transformer or fluorescent loads or 1 amp (250W) of fans. · · · Plugs into a ceiling socket · · Adjustable time lag settings · · Photocell override · · Long narrow detection range, ideal for corridors and storage aisles
Description
Technical Specifications Technical Specifications Motion detector Colour White Mounting method Surface mounted Model Presence detector Depth 102 mm Diameter 60 mm Max. reach frontally 10 m Switching-on delay 10 s Min. starting current 1 A Scan angle 120 ° Max. switching power 1500 W Optimum mounting height 2.2 m Max. starting current 6 A Max. duty cycle 40 min Suitable for ceiling mounting Yes · Technical Data Sheet – Click to Download
