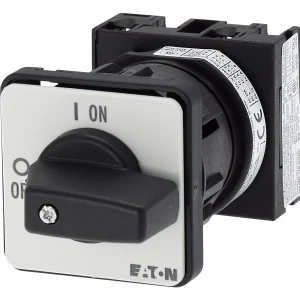

On-Off switch T0 20 A centre mounting 1 contact unit(s) 2 pole with black thumb grip and front plate
On-Off switch T0 20 A centre mounting 1 contact unit(s) 2 pole with black thumb grip and front plate

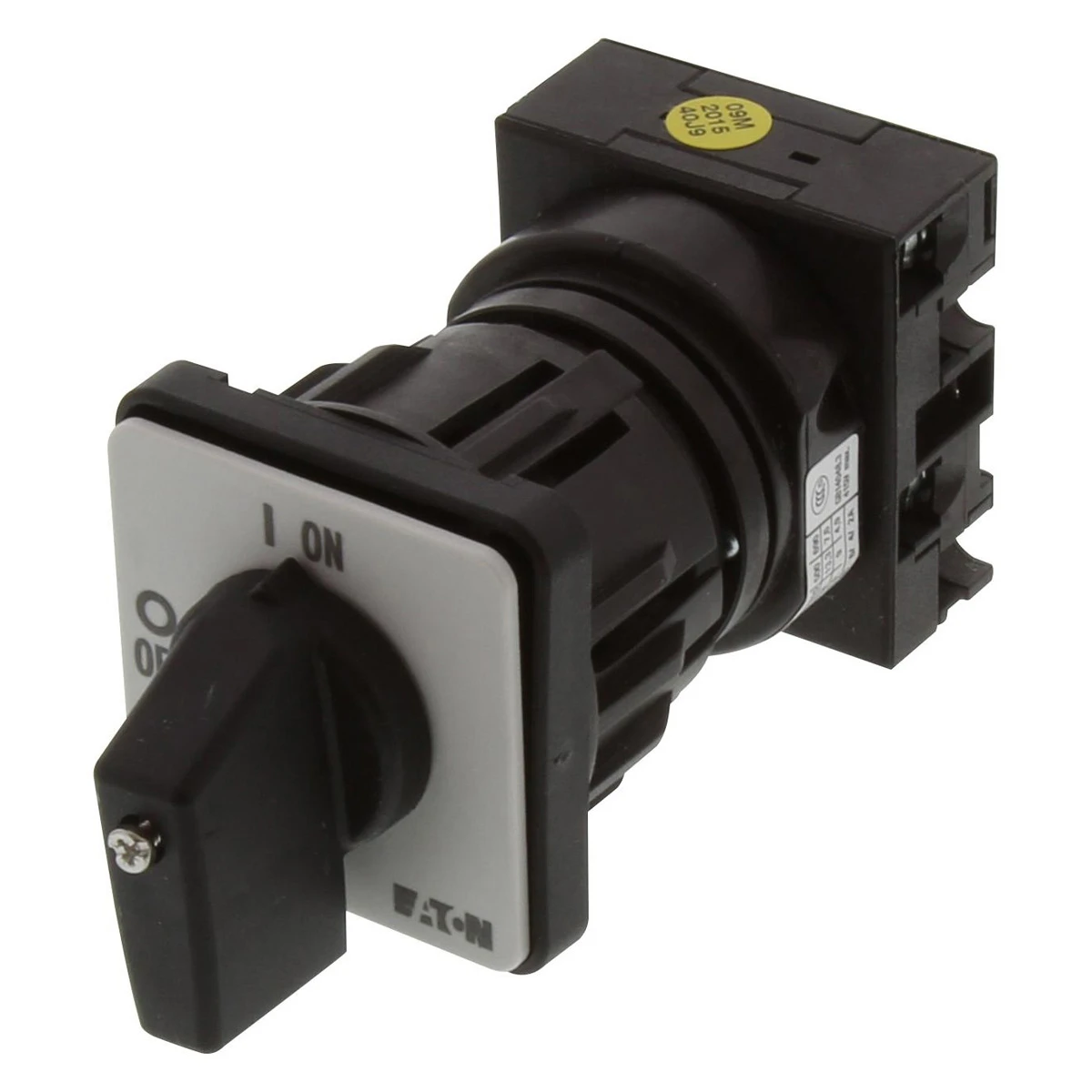

On-Off switch T0 20 A centre mounting 1 contact unit(s) 2 pole with black thumb grip and front plate - Image 2
On-Off switch T0 20 A centre mounting 1 contact unit(s) 2 pole with black thumb grip and front plate - Image 3

On-Off switch T0 20 A centre mounting 1 contact unit(s) 2 pole with black thumb grip and front plate

£22.28 Incl. VAT

On-Off switch, Product range: On-Off switch, Part group reference: T0, with black thumb grip and front plate, 2 pole, Degree of Protection: Front IP65, Design: centre mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 – 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3 · · · built-in device fixed built-in technique device construction · · 1 second rated short-time withstand current · · Centre mounting · · Rated voltage 690 V a.c., rated current up to 315 Amps · · Rated Impulse Withstand Voltage: 5kV · · There is a mechanical state indicator and a test function button on the front face. · · The Ue rated operational voltage is 24VAC to 415VAC or 24VDC to 130VDC. The operating frequency is 50Hz or 60Hz. · · The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. · · The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC.

5 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 91082 Categories: , , Brand: Part Number: 2500019716

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Type of electrical connection of main circuit Screw connection Degree of protection (IP), front side IP65 Type of control element Short thumb-grip Colour control element Black Device construction Built-in device fixed built-in technique Degree of protection (NEMA) 12 Height 48 mm Width 48 mm Rated permanent current Iu 20 A Depth 96 mm Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 5.5 kW Number of auxiliary contacts as normally closed contact 0 Number of poles 2 Rated operation power at AC-23, 400 V 5.5 kW Switching power at 400 V 5.5 kW Rated permanent current at AC-21, 400 V 20 A Max. rated operation voltage Ue AC 690 V Number of auxiliary contacts as change-over contact 0 Conditioned rated short-circuit current Iq 6 kA Rated short-time withstand current lcw 0.32 kA Number of switches 1 Version as emergency stop installation No Motor drive integrated No With pre-assembled cabling No Voltage release optional No Motor drive optional No Suitable for floor mounting No Rated operating voltage 690 – 690 V Rated permanent current at AC-23, 400 V 13.3 A Version as main switch No Version as safety switch No Interlockable No Version as maintenance-/service switch No Suitable for front mounting 4-hole No Suitable for distribution board installation No Suitable for intermediate mounting No Suitable for front mounting centre Yes Version as reversing switch No · Technical Data Sheet – Click to Download
