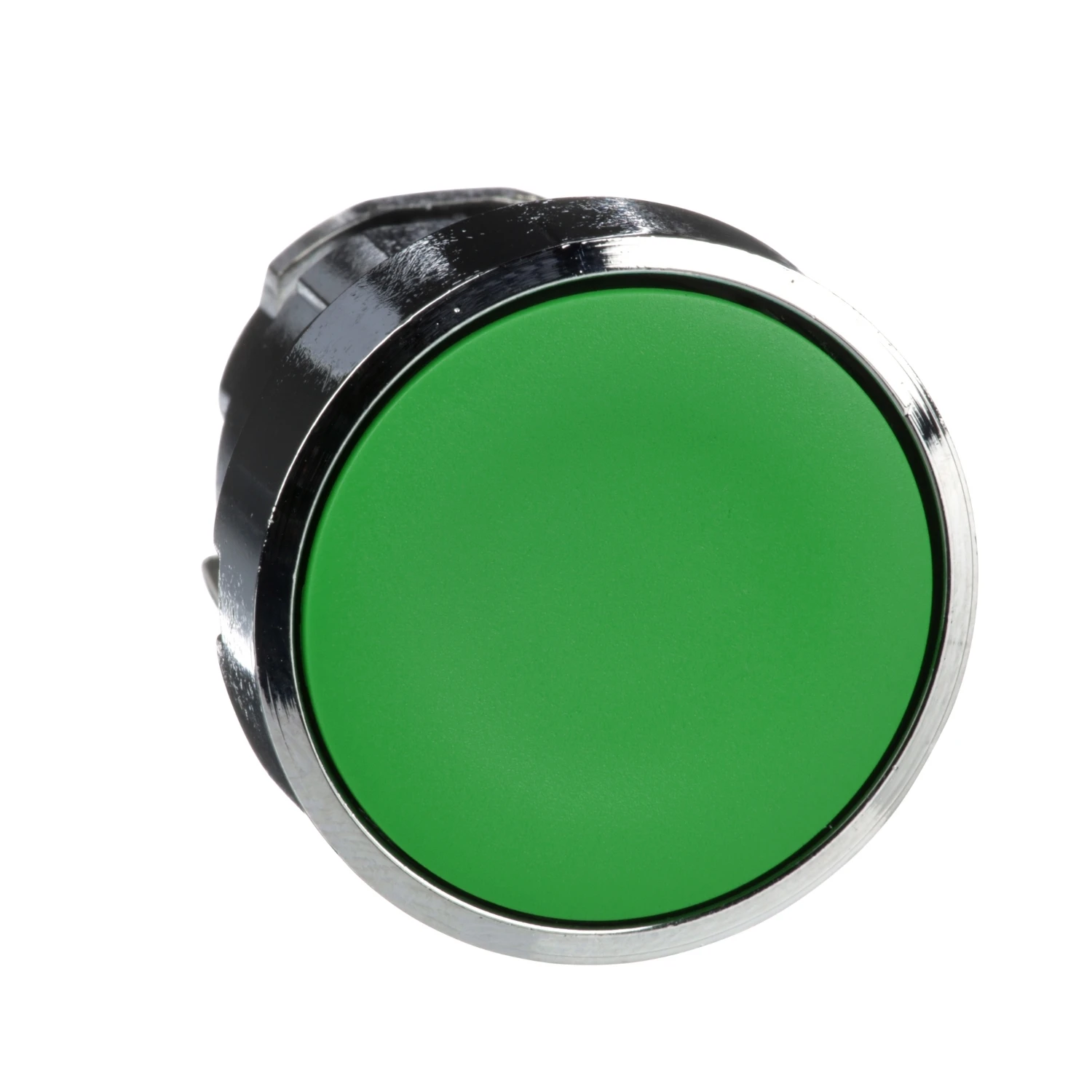

Operating Head For Flush Pushbutton Coloured Green Cap
£6.82 Incl. VAT
This Harmony XB4, green button head operates with a spring return mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. · · · Protection up to IP66, IP67, IP69, and IP69K · · Conformity with IEC, UL, CSA, CCC EAC, and JIS standards · · Operating temperature from -40°C -to 70°C · · Shock protection level up to IK06 · · It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. · · It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. · · Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Out of stock
Description
Technical Specifications Technical Specifications Front element for push button Colour button Green Construction type lens Round Material front ring Metal Colour front ring Chrome Hole diameter 22.5 mm Number of command positions 1 With protective cover No Suitable for illumination No With front ring Yes Spring-return Yes Switching function latching No Labelled No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226406 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226169
