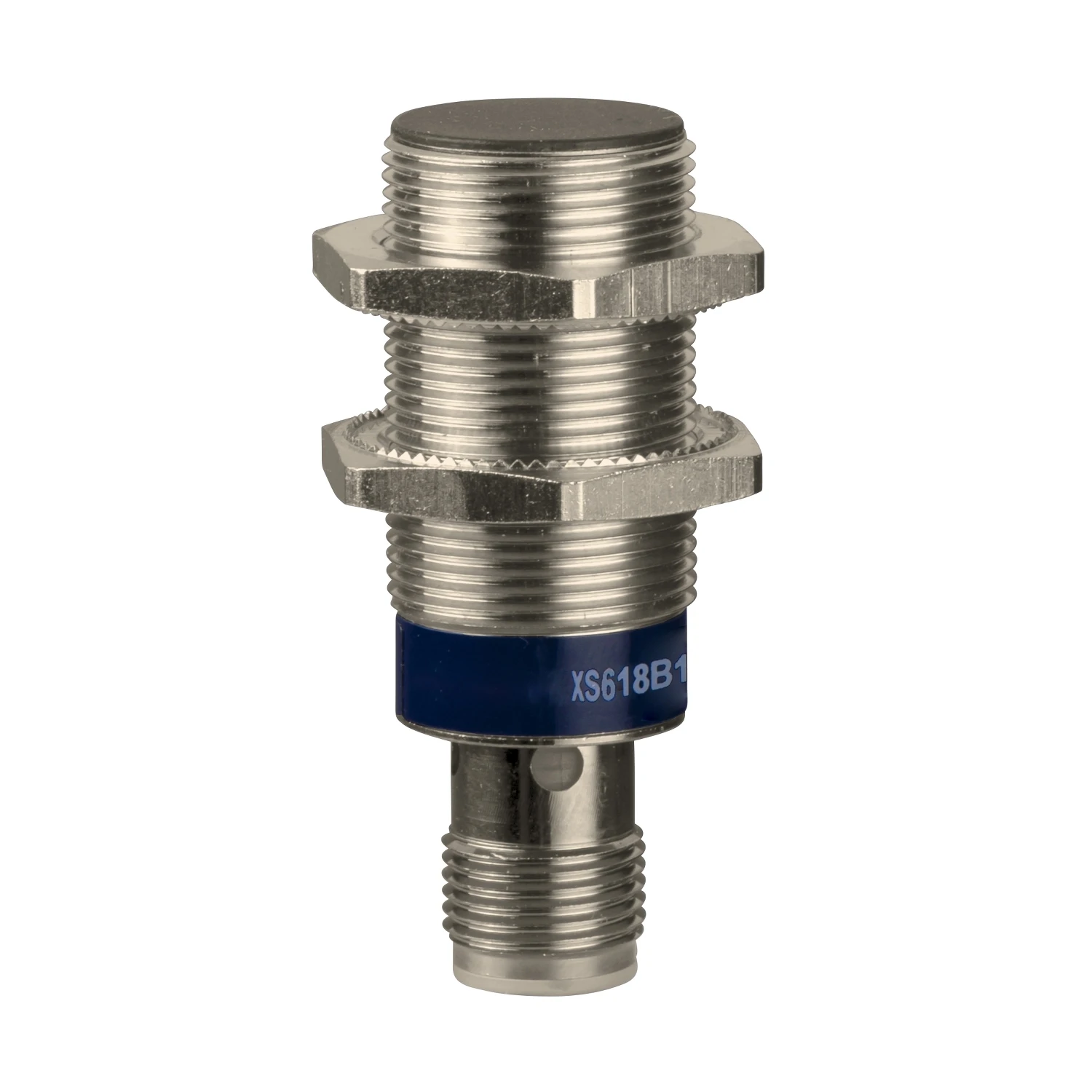

OsiSense Inductive Proximity Sensor Cylindrical Plug-in PNP NO M18 8mm
£68.09 Incl. VAT
This XS cylindrical (M18 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 48V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is CSA, UL certified. · · · This XS cylindrical (M18 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. · · It has a supply voltage of 12V to 48V DC. · · This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. · · It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. · · It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. · · IP65, IP67 and IP69K protection makes this product ready for the harshest environments. · · It can operate in very cold (-25°C) and hot environments (+70°C). · · It has a standard M12 connector, compatible with all existing market sensor cabling. · · It is CSA, UL certified.
3 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Inductive proximity switch Interface type None Type of interface for safety communication None SIL according to IEC 61508 None Performance level acc. to EN ISO 13849-1 None Explosion safety category for dust None Explosion safety category for gas None Coating housing Nickel-plated Type of electric connection Connector M12 Voltage type AC/DC Type of actuation Metallic Target Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Type of switching output PNP/PNP Housing material Metal Mechanical mounting condition for sensor Concise Construction type housing Cylinder, screw-thread Number of protected semiconductor outputs 0 Number of contact energized outputs with signalling function 0 Width sensor – mm Height of sensor – mm Switching frequency 1000 Hz Max. output current at protected output 200 mA Length of sensor 73.2 mm Type of switch function Normally open contact Number of protected contact energized outputs 0 Switching distance 8 mm Diameter sensor 18 mm Number of semiconductor outputs with signalling function 1 Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 48 V Rated control supply voltage at DC 12 – 48 V Suitable for safety functions No With monitoring function downstream switching devices No Cascadable No Compression-resistant No · Technical Data Sheet – Click to Download
