Telemecanique Sensors OsiSense XC Miniature Range Limit Switch 1 NC + 1 NO Steel Roller Plunger Snap 1m
Telemecanique Sensors OsiSense XC Miniature Range Limit Switch 1 NC + 1 NO Steel Roller Plunger Snap 1m
Telemecanique Sensors OsiSense XC Miniature Range Limit Switch 1 NC + 1 NO Steel Roller Plunger Snap 1m - Image 2
Telemecanique Sensors OsiSense XC Miniature Range Limit Switch 1 NC + 1 NO Steel Roller Plunger Snap 1m - Image 3
Telemecanique Sensors OsiSense XC Miniature Range Limit Switch 1 NC + 1 NO Steel Roller Plunger Snap 1m - Image 4

Telemecanique Sensors OsiSense XC Miniature Range Limit Switch 1 NC + 1 NO Steel Roller Plunger Snap 1m

£57.11 Incl. VAT

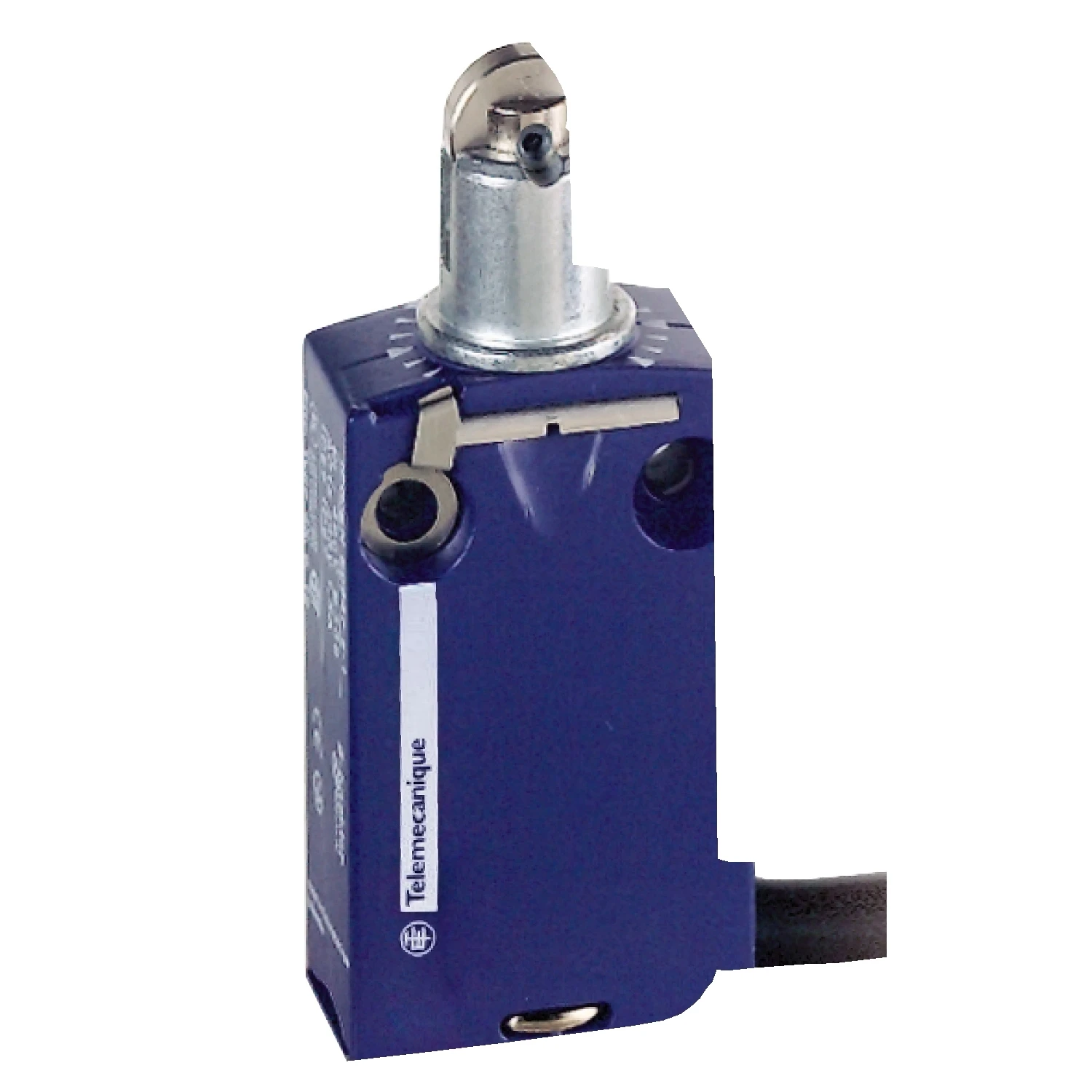

This XCMD miniature format limit switch has a steel roller plunger and a Zamak body. This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head. · · · This XCMD miniature format limit switch has a steel roller plunger and a Zamak body. · · This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. · · It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. · · It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. · · It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. · · Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. · · Variable composition design allows late modifications on the switch, for example change of connection type or head. · · Minimum force for tripping: 7N · · Ambient temperature: -25 to 70°C · · IP66/67/68/IK06 Degree of protection

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCMD2102L1 Categories: , , Brand: Product Code: 2500167075

Description

Technical Specifications  Technical Specifications End switch Type of interface for safety communication None Explosion safety category for dust None Explosion safety category for gas None Degree of protection (IP rating) IP66/IP67 Interface type None Type of control element Roller cam Switching function Quick-break switch Housing material Metal Type of electric connection With cable preassembled Alignment of the control element Roller cam straight Rated operation current Ie at DC-13, 230 V 0.1 A Rated operation current Ie at AC-15, 230 V 1.5 A Number of contacts as change-over contact 0 Diameter sensor – mm Number of contacts as normally closed contact 1 Length of sensor 16 mm Width sensor 30 mm Height of sensor 50 mm Rated operation current Ie at AC-15, 24 V – A Rated operation current Ie at AC-15, 125 V – A Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at DC-13, 125 V – A Number of safety auxiliary contacts 0 Number of contacts as normally open contact 1 Ambient temperature during operating -25 – 70 °C With status indication No Suitable for safety functions No Switching function latching No Output electronic No Forced opening Yes · Technical Data Sheet – Click to Download
