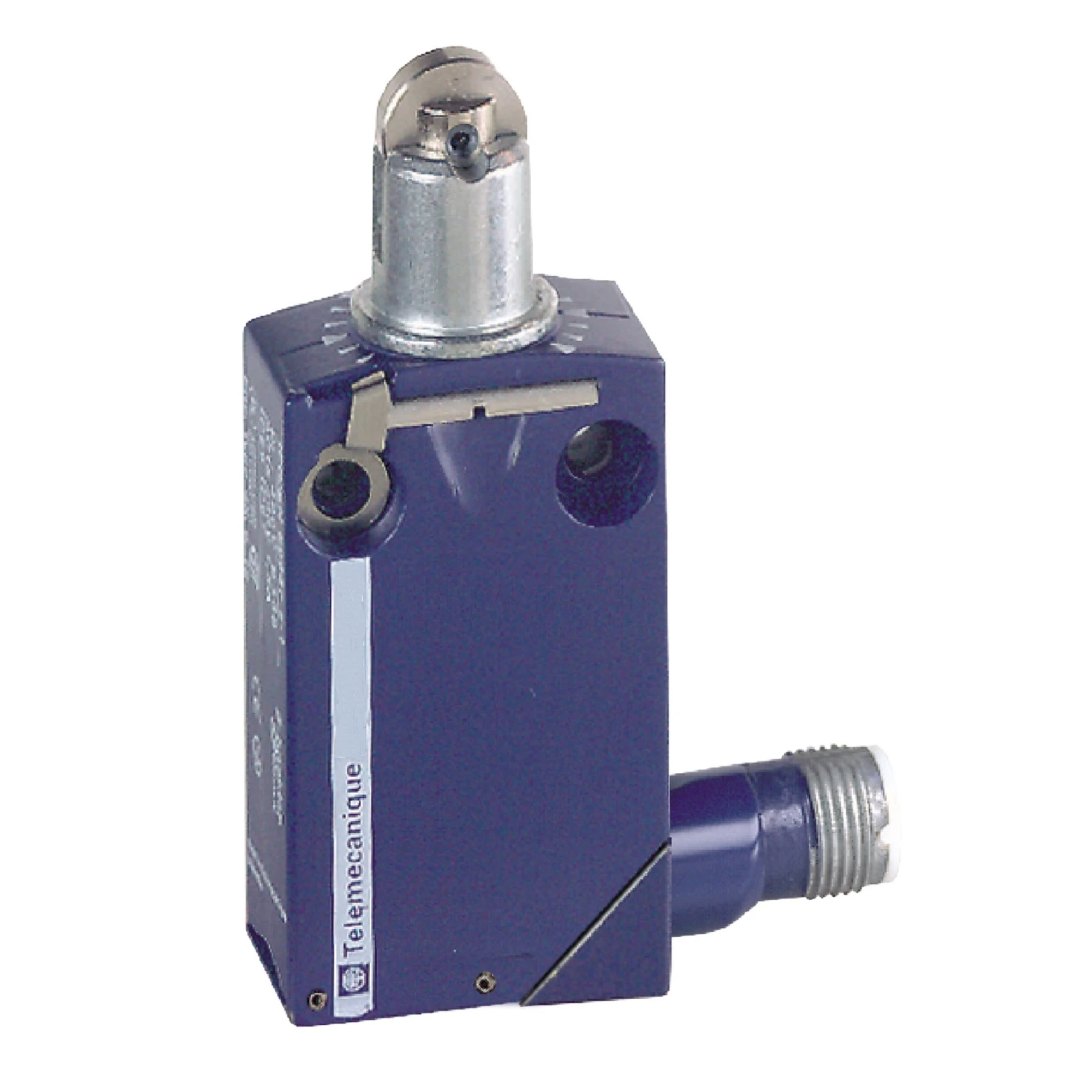

OsiSense XCMD Snap Action Limit Switch Steel Roller Plunger 1NC+1NO M12
£93.86 Incl. VAT
This XCMD miniature format limit switch has a steel roller plunger and a Zamak body. This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head. · · · Galvanic separation of circuits · · Models suitable for low power switching, combined with good electrical durability · · Very good short-circuit withstand in coordination with appropriate fuses · · Total immunity to electromagnetic interference · · High rated operational voltage · · N/C contacts with positive opening operation · · High resistance to the different ambient conditions encountered in industry · · High repeat accuracy, up to 0.01 mm on the tripping points · · Simple visible operation
3 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications End switch Interface type None Type of control element Roller cam Type of interface for safety communication None Degree of protection (IP rating) IP66/IP67 Explosion safety category for dust None Explosion safety category for gas None Alignment of the control element Roller cam straight Number of contacts as normally closed contact 1 Number of safety auxiliary contacts 0 Rated operation current Ie at DC-13, 125 V – A Number of contacts as normally open contact 1 Housing material Metal Switching function Quick-break switch Type of electric connection Connector M12 Rated operation current Ie at DC-13, 230 V 0.22 A Rated operation current Ie at AC-15, 230 V 3 A Height of sensor 50 mm Width sensor 30 mm Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at AC-15, 125 V – A Rated operation current Ie at AC-15, 24 V – A Number of contacts as change-over contact 0 Diameter sensor – mm Length of sensor 16 mm Ambient temperature during operating -25 – 70 °C Suitable for safety functions No Switching function latching No Output electronic No Forced opening Yes With status indication No · Technical Data Sheet – Click to Download
