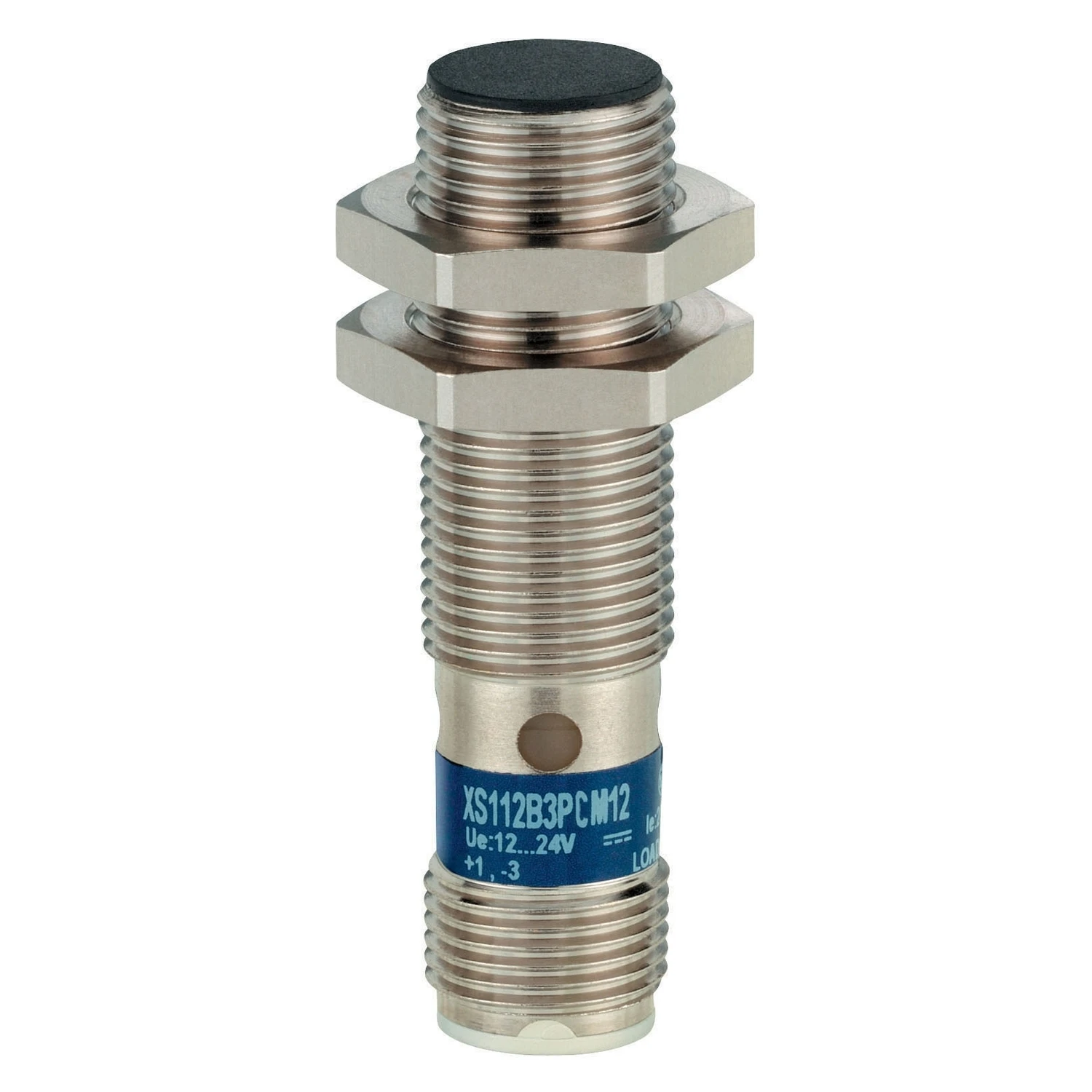

Telemecanique Sensors Osisense XS1 M12 Inductive Sensor 12-24V DC - 50mm length - M12
Telemecanique Sensors Osisense XS1 M12 Inductive Sensor 12-24V DC - 50mm length - M12
Telemecanique Sensors Osisense XS1 M12 Inductive Sensor 12-24V DC - 50mm length - M12 - Image 2
Telemecanique Sensors Osisense XS1 M12 Inductive Sensor 12-24V DC - 50mm length - M12 - Image 3
Telemecanique Sensors Osisense XS1 M12 Inductive Sensor 12-24V DC - 50mm length - M12 - Image 4

Telemecanique Sensors Osisense XS1 M12 Inductive Sensor 12-24V DC – 50mm length – M12

£42.41 Incl. VAT

This XS cylindrical (M12 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. High corrosion and impact-resistant nickel plating, keeping aspect and performance of the sensor for a longer time. Nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65, IP68 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is E2, CSA, UL certified. · · · This XS cylindrical (M12 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. · · It has a supply voltage of 12V to 24V DC. · · This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. · · It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · High corrosion and impact-resistant nickel plating, keeping aspect and performance of the sensor for a longer time.

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS112B3PBM12 Categories: , , , , , Brand: Product Code: 2500388785

Description

Technical Specifications  Technical Specifications Inductive proximity switch Interface type None Explosion safety category for dust None Type of interface for safety communication None SIL according to IEC 61508 None Explosion safety category for gas None Construction type housing Cylinder, screw-thread Performance level acc. to EN ISO 13849-1 None Coating housing Nickel-plated Mechanical mounting condition for sensor Concise Type of electric connection Connector M12 Type of switch function Breaker contact Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Type of switching output PNP/PNP Housing material Metal Type of actuation Metallic Target Voltage type AC/DC Switching frequency 2500 Hz Width sensor – mm Diameter sensor 12 mm Length of sensor 50 mm Number of semiconductor outputs with signalling function 1 Number of protected semiconductor outputs 0 Number of protected contact energized outputs 0 Number of contact energized outputs with signalling function 0 Height of sensor – mm Max. output current at protected output 200 mA Switching distance 4 mm Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 24 V Rated control supply voltage at DC 12 – 24 V With monitoring function downstream switching devices No Cascadable No Compression-resistant No Suitable for safety functions No · Technical Data Sheet – Click to Download
