Osisense XS1 M18 Inductive Sensor 12-24V DC – 50mm length – M12

£60.97 Incl. VAT

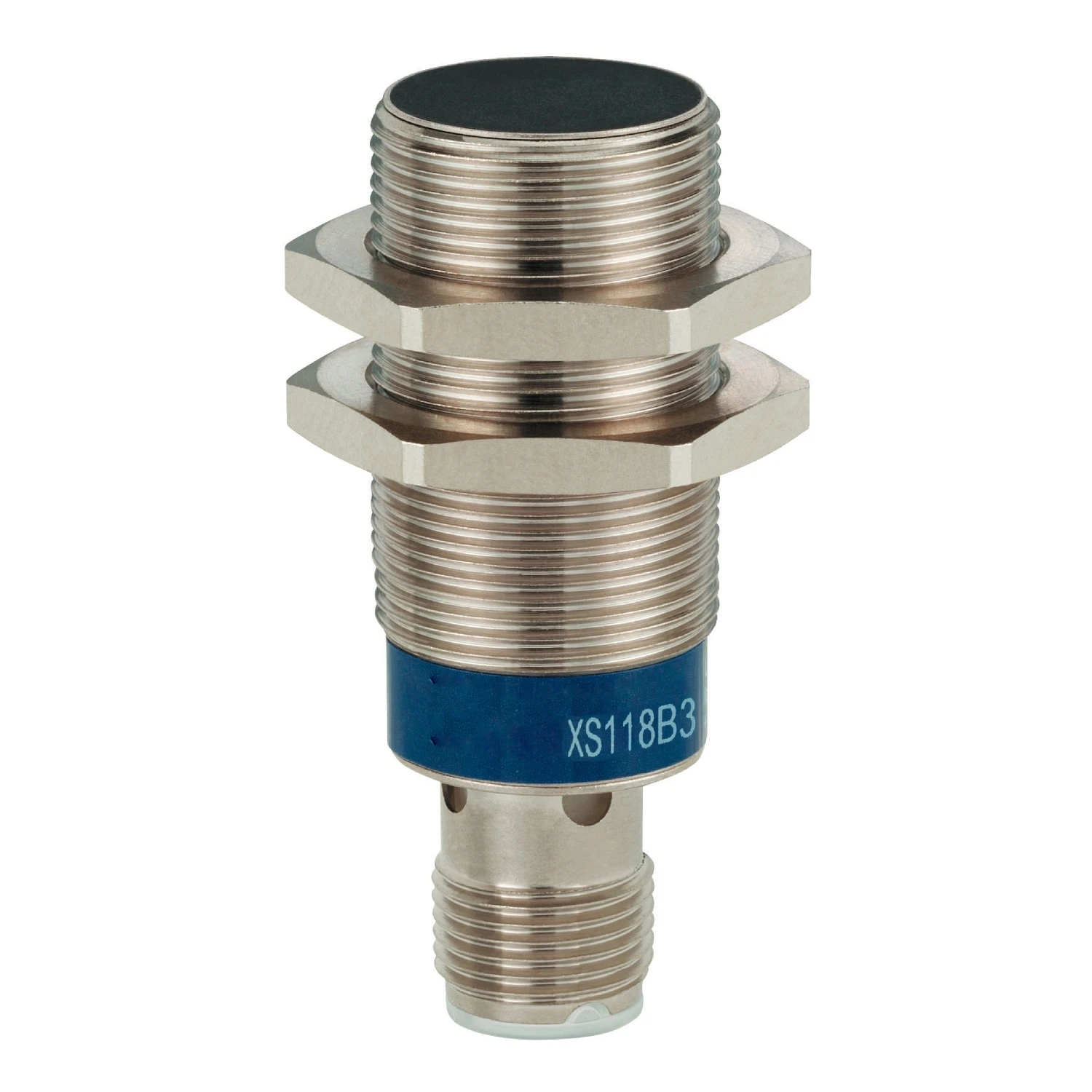

This XS cylindrical (M18 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. High corrosion and impact-resistant nickel plating, keeping aspect and performance of the sensor for a longer time. Nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is E2, CSA, UL certified. · · · This XS cylindrical (M18 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. · · It has a supply voltage of 12V to 24V DC. · · This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. · · It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · High corrosion and impact-resistant nickel plating, keeping aspect and performance of the sensor for a longer time. · · Nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. · · It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. · · IP65, IP67 and IP69K protection makes this product ready for the harshest environments. · · It can operate in very cold (-25°C) and hot environments (+70°C). · · It has a standard M12 connector, compatible with all existing market sensor cabling.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS118B3PAM12 Categories: , , Brand: Part Number: 2500388807

Description

Technical Specifications  Technical Specifications Inductive proximity switch Performance level acc. to EN ISO 13849-1 None SIL according to IEC 61508 None Interface type None Type of interface for safety communication None Explosion safety category for dust None Explosion safety category for gas None Coating housing Nickel-plated Construction type housing Cylinder, screw-thread Mechanical mounting condition for sensor Concise Type of electric connection Connector M12 Housing material Metal Width sensor – mm Number of contact energized outputs with signalling function 0 Switching frequency 1000 Hz Type of switching output PNP/PNP Type of actuation Metallic Target Voltage type AC/DC Type of switch function Normally open contact Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Length of sensor 50 mm Max. output current at protected output 200 mA Number of protected semiconductor outputs 0 Number of semiconductor outputs with signalling function 1 Switching distance 8 mm Number of protected contact energized outputs 0 Diameter sensor 18 mm Height of sensor – mm Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 24 V Rated control supply voltage at DC 12 – 24 V Suitable for safety functions No With monitoring function downstream switching devices No Cascadable No Compression-resistant No · Technical Data Sheet – Click to Download
