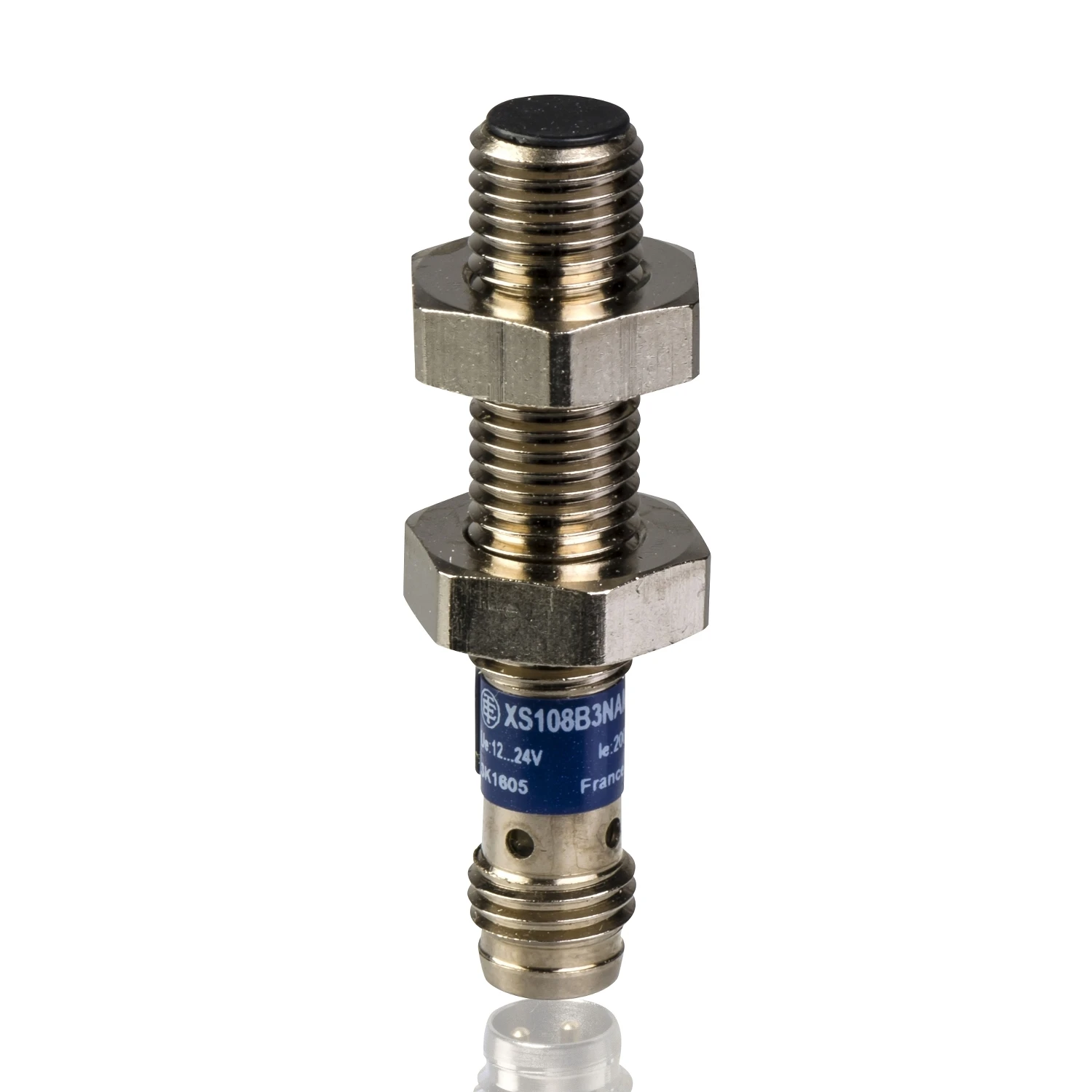

Osisense XS1 M8 Inductive Sensor 12-24V DC – 42mm length – M8
£67.55 Incl. VAT
This XS cylindrical (M8 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. High corrosion and impact-resistant nickel plating, keeping aspect and performance of the sensor for a longer time. Nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M8 connector, compatible with all existing market sensor cabling. It is CSA, UL certified. · · · This XS cylindrical (M8 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. · · It has a supply voltage of 12V to 24V DC. · · This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. · · It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · High corrosion and impact-resistant nickel plating, keeping aspect and performance of the sensor for a longer time. · · Nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. · · It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. · · IP65 and IP67 protection makes this product ready for the harshest environments. · · It can operate in very cold (-25°C) and hot environments (+70°C). · · It has a standard M8 connector, compatible with all existing market sensor cabling.
Out of stock
Description
Technical Specifications Technical Specifications Inductive proximity switch Type of interface for safety communication None Explosion safety category for dust None SIL according to IEC 61508 None Interface type None Explosion safety category for gas None Performance level acc. to EN ISO 13849-1 None Coating housing Nickel-plated Construction type housing Cylinder, screw-thread Mechanical mounting condition for sensor Concise Housing material Metal Interference resistance to magnetic fields Immune against magnetic DC-field Type of electric connection Connector M8 Type of switch function Normally open contact Type of switching output PNP/PNP Width sensor – mm Height of sensor – mm Switching distance 2.5 mm Number of contact energized outputs with signalling function 0 Switching frequency 2500 Hz Type of actuation Metallic Target Voltage type AC/DC Number of protected contact energized outputs 0 Length of sensor 42 mm Supply voltage 12 – 24 V Rated control supply voltage at AC 60 Hz – V Rated control supply voltage at AC 50 Hz – V Number of semiconductor outputs with signalling function 1 Max. output current at protected output 200 mA Number of protected semiconductor outputs 1 Diameter sensor 8 mm Rated control supply voltage at DC 12 – 24 V Suitable for safety functions No Compression-resistant No With monitoring function downstream switching devices No Cascadable No · Technical Data Sheet – Click to Download
