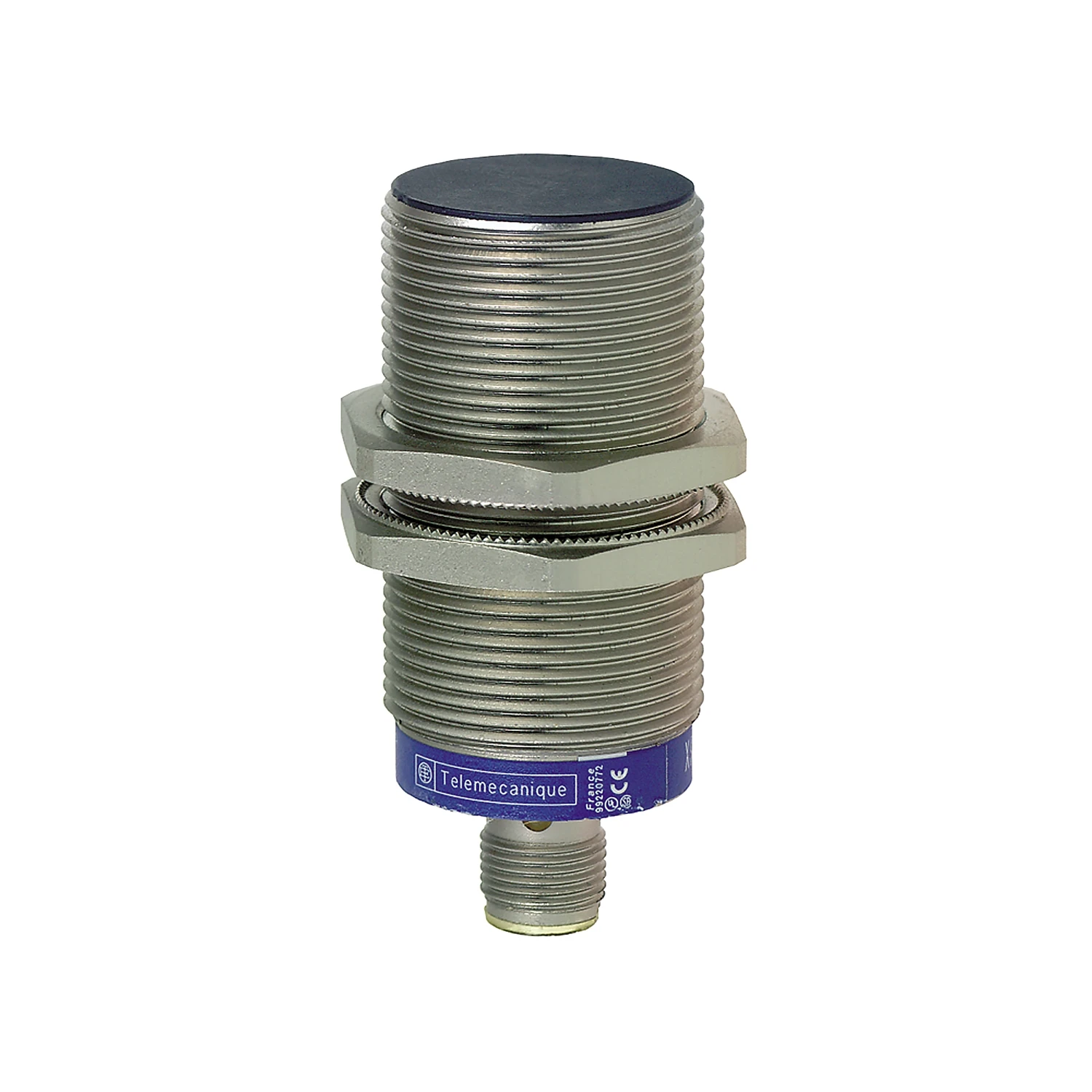

Osisense XS5 M30 Inductive Sensor 12-48V DC – 74mm length – M12
£70.56 Incl. VAT
This XS cylindrical (M30 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 48V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65, IP68 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is CCC, CSA, UL certified. · · · This XS cylindrical (M30 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. · · It has a supply voltage of 12V to 48V DC. · · This general purpose threaded cylindrical inductive proximity sensor is flush mountable. · · It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. · · Thread Size: M30 X 1.5 · · Weight: 0.15kg
Out of stock
Description
Technical Specifications Technical Specifications Inductive proximity switch Interface type None Performance level acc. to EN ISO 13849-1 None SIL according to IEC 61508 None Explosion safety category for dust None Type of interface for safety communication None Explosion safety category for gas None Coating housing Nickel-plated Construction type housing Cylinder, screw-thread Type of electric connection Connector M12 Mechanical mounting condition for sensor Concise Housing material Metal Type of switch function Normally open contact Height of sensor – mm Diameter sensor 30 mm Width sensor – mm Switching frequency 1000 Hz Type of actuation Metallic Target Type of switching output PNP/PNP Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Voltage type AC/DC Max. output current at protected output 200 mA Rated control supply voltage at AC 50 Hz – V Switching distance 10 mm Length of sensor 74 mm Number of protected contact energized outputs 0 Number of protected semiconductor outputs 0 Number of contact energized outputs with signalling function 0 Number of semiconductor outputs with signalling function 1 Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 48 V Rated control supply voltage at DC 12 – 48 V Cascadable No With monitoring function downstream switching devices No Suitable for safety functions No Compression-resistant No · Technical Data Sheet – Click to Download
