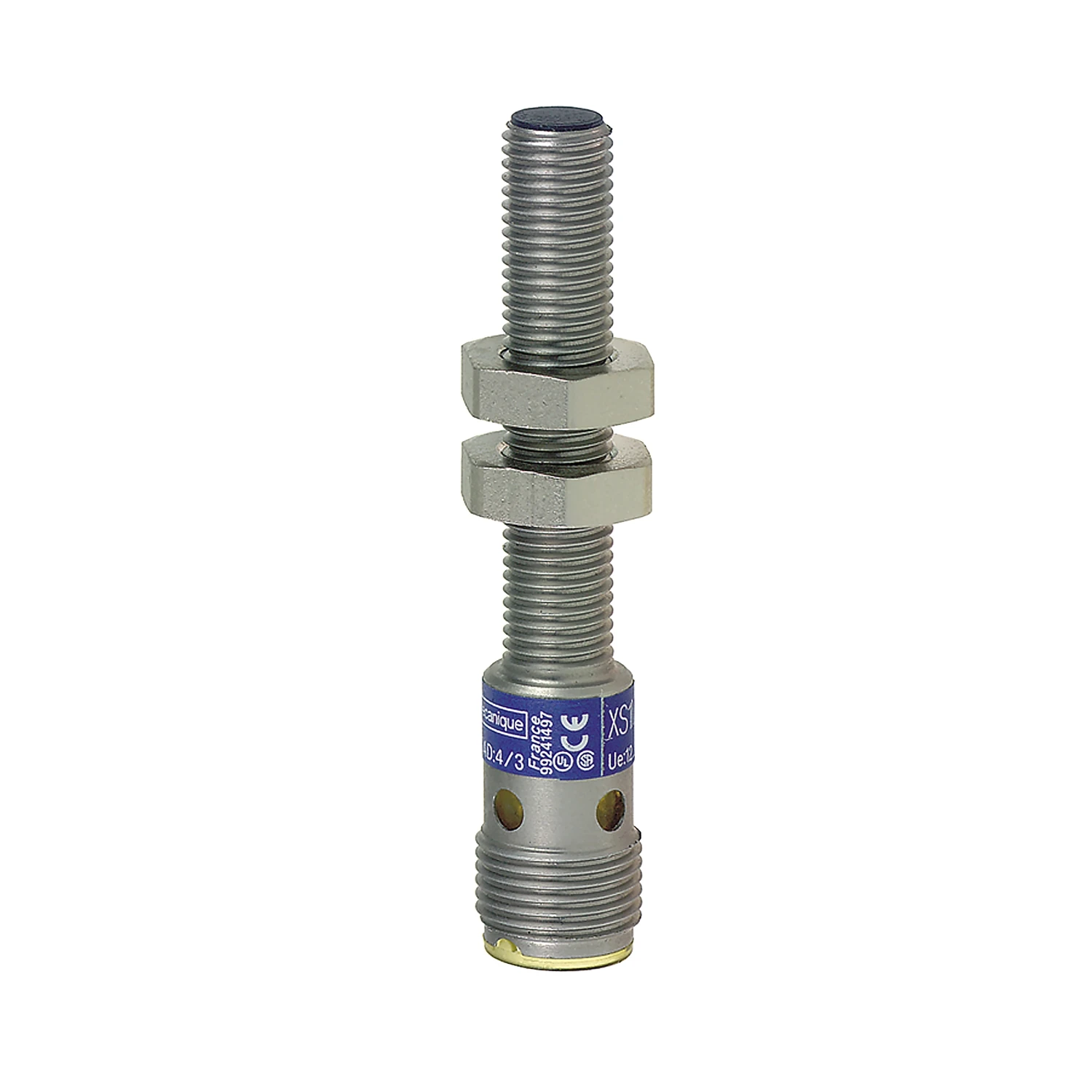

Osisense XS5 M8 Inductive Sensor 12-48V DC – 62mm length – M12
£68.05 Incl. VAT
This XS cylindrical (M8 thread) inductive proximity sensor has a PPS sensing face and a stainless steel grade 303 case. It has a supply voltage of 12V to 48V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Non-magnetic 303 stainless steel provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is CCC, CSA, UL certified. · · · This XS cylindrical (M8 thread) inductive proximity sensor has a PPS sensing face and a stainless steel grade 303 case. · · It has a supply voltage of 12V to 48V DC. · · This general purpose threaded cylindrical inductive proximity sensor is flush mountable. · · It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · Non-magnetic 303 stainless steel provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. · · Thread Size: M8 X 1 · · Weight: 0.035kg · · Compliant with EN 45545-2: 2013 (protection against fire and fumes) and · · Compliant with EN 61373 (resistance to shock and vibration, category 1, class B) · · Compliant WithEN 50155 (resistance to temperature and humidity, class T1)
Out of stock
Description
Technical Specifications Technical Specifications Inductive proximity switch Type of interface for safety communication None SIL according to IEC 61508 None Explosion safety category for gas None Performance level acc. to EN ISO 13849-1 None Explosion safety category for dust None Interface type None Coating housing Nickel-plated Construction type housing Cylinder, screw-thread Type of electric connection Connector M12 Housing material Metal Switching frequency 4000 Hz Voltage type AC/DC Type of actuation Metallic Target Type of switching output PNP/PNP Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Type of switch function Normally open contact Mechanical mounting condition for sensor Concise Number of contact energized outputs with signalling function 0 Length of sensor 61 mm Height of sensor 8 mm Switching distance 1.5 mm Number of protected semiconductor outputs 0 Number of semiconductor outputs with signalling function 1 Width sensor – mm Diameter sensor 8 mm Max. output current at protected output 200 mA Number of protected contact energized outputs 1 Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 24 V Rated control supply voltage at DC 12 – 24 V Suitable for safety functions No With monitoring function downstream switching devices No Cascadable No Compression-resistant No · Technical Data Sheet – Click to Download
