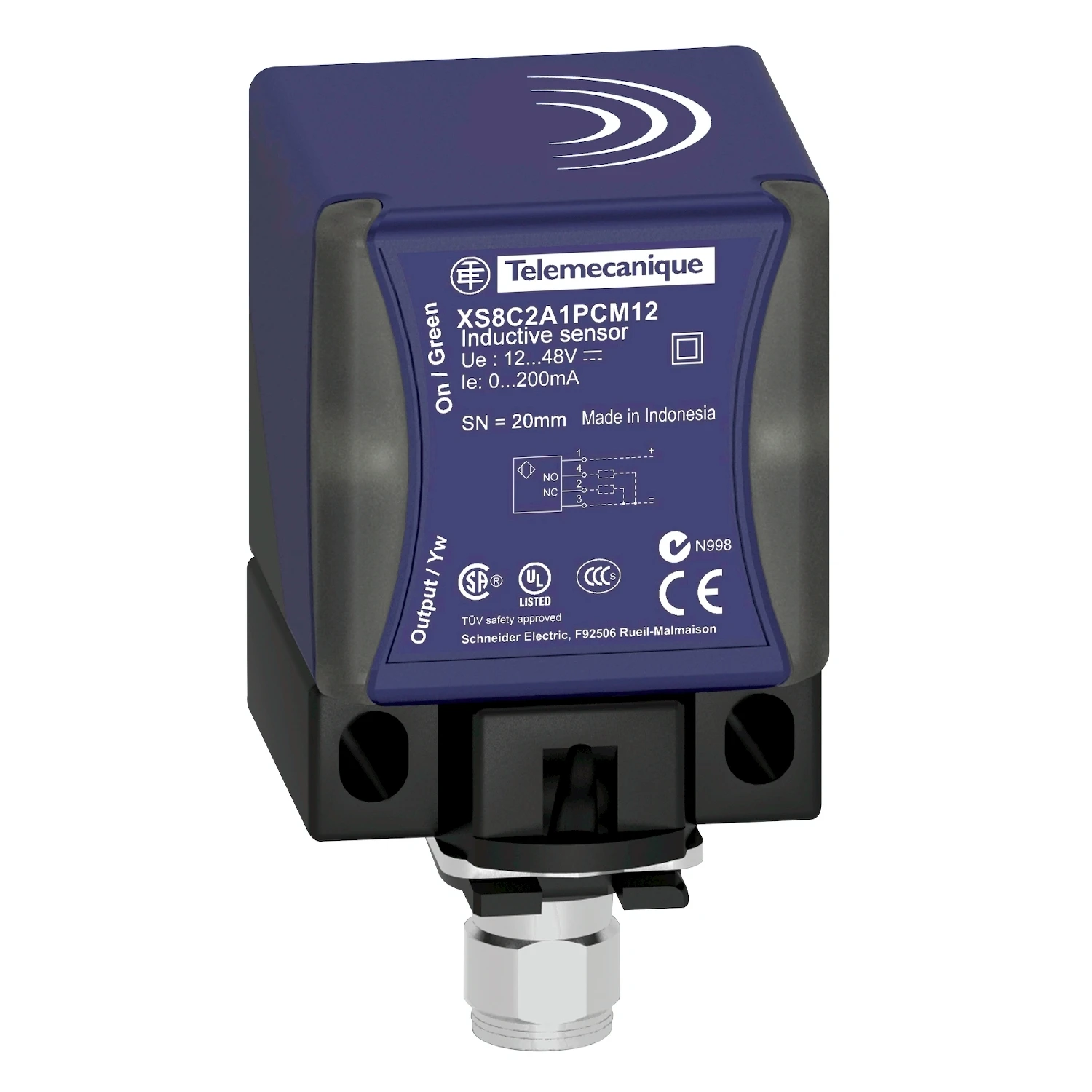

Osisense XS8 Inductive Sensor 12-48V DC - M12 - 20mm operating zone
Osisense XS8 Inductive Sensor 12-48V DC - M12 - 20mm operating zone
Osisense XS8 Inductive Sensor 12-48V DC - M12 - 20mm operating zone - Image 2
Osisense XS8 Inductive Sensor 12-48V DC - M12 - 20mm operating zone - Image 3
Osisense XS8 Inductive Sensor 12-48V DC - M12 - 20mm operating zone - Image 4

Osisense XS8 Inductive Sensor 12-48V DC – M12 – 20mm operating zone

£62.06 Incl. VAT

This XS turret head (40 x 40 x 70 mm) with an inductive proximity sensor has a PBT case. It has a supply voltage of 12V to 48V DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 4 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It features double insulation for better people and system protection from electrical shocks. Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified. · · · Mechanical resistance and chemical withstand thanks to PBT case · · Sensing face yellow LED status indication for easier sensor setup and troubleshooting · · IP67 protection makes this product ready for the harshest environments · · Can operate in very cold (-25°C) and hot environments (+70°C) · · Double insulation for better people and system protection from electrical shocks

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS8C2A1PCM12 Categories: , , Brand: Part Number: 2500663258

Description

Technical Specifications  Technical Specifications Inductive proximity switch Type of interface for safety communication None Interface type None Explosion safety category for gas None SIL according to IEC 61508 None Performance level acc. to EN ISO 13849-1 None Explosion safety category for dust None Housing material Plastic Construction type housing Cuboid Type of electric connection Connector M12 Mechanical mounting condition for sensor Concise Interference resistance to magnetic fields Immune against magnetic DC-field Type of switching output PNP/PNP Diameter sensor – mm Number of protected contact energized outputs 0 Number of contact energized outputs with signalling function 0 Voltage type AC/DC Type of actuation Metallic Target Switching frequency 300 Hz Max. output current at protected output 200 mA Rated control supply voltage at AC 50 Hz – V Width sensor 70 mm Number of protected semiconductor outputs 2 Length of sensor 40 mm Height of sensor 40 mm Number of semiconductor outputs with signalling function 2 Switching distance 20 mm Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 48 V Rated control supply voltage at DC 12 – 48 V With monitoring function downstream switching devices No Compression-resistant No Cascadable No Suitable for safety functions No · Technical Data Sheet – Click to Download
