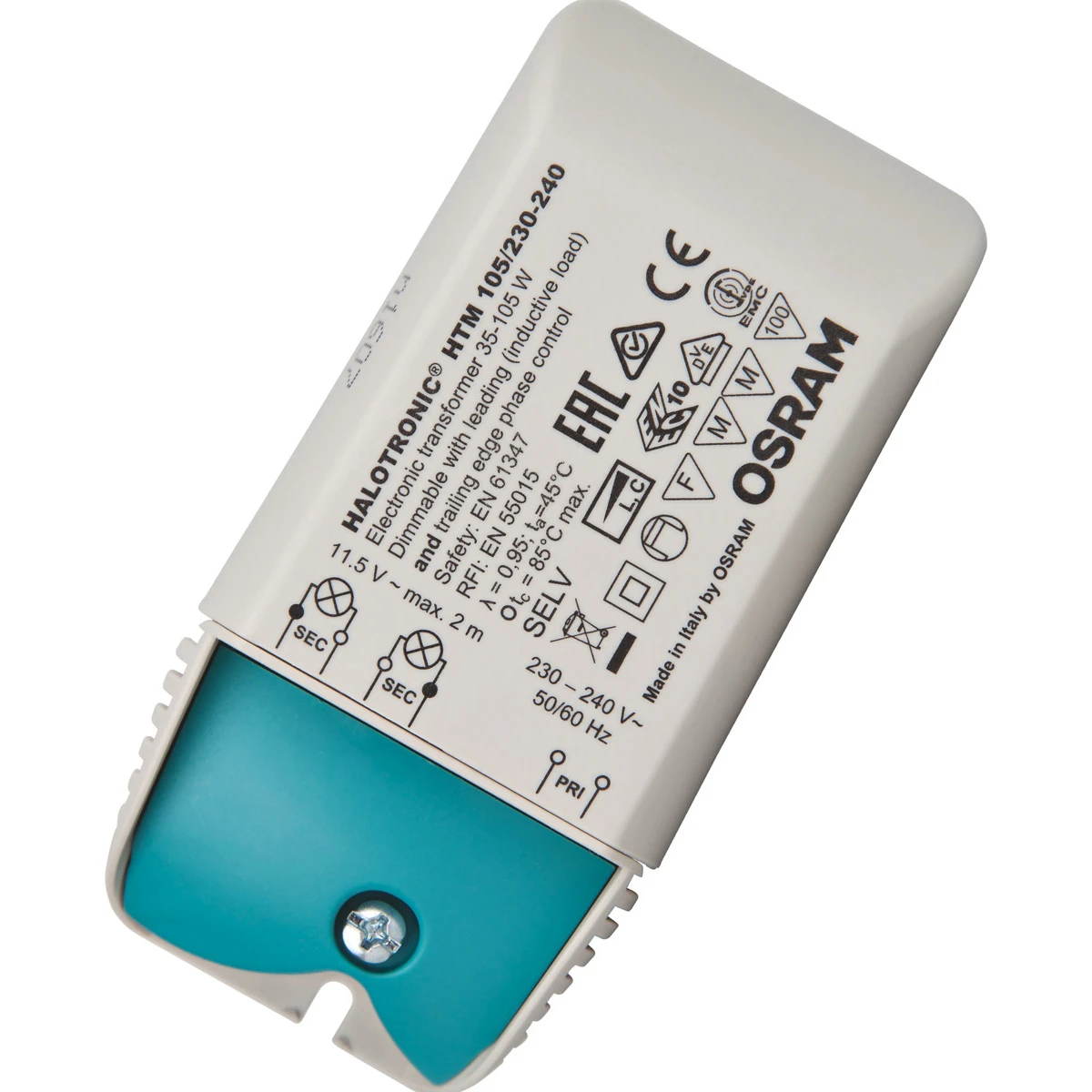

Osram HTM105 Halotronic-Compact 230-240V Electronic Transformer for 35-105W Halogen Lamps
£22.24 Incl. VAT
The Osram electronic transformer has an over-temperature protection, which is electronically reversible and has electrical isolation between the primary side and the secondary side. Standards: Immunity according to EN 61547 & Safety to EN 61347. · · · Dimmable on the leading edge (without HTN) and trailing edge · · High efficacy · · Strain relief is suitable for different cable types (HTM) · · Energy efficiency =91% (according to ErP regulation 2012/1194/EC) · · 50-60Hz line frequency · · RI suppression to EN 55015 (A1: 2007)/CISPR 15, EN 55022 · · Line harmonics according to EN 61000-3-2 · · Short-circuit protection · · Overload protection · · Switching between electronic transformer and lamp is not permitted
Out of stock
Description

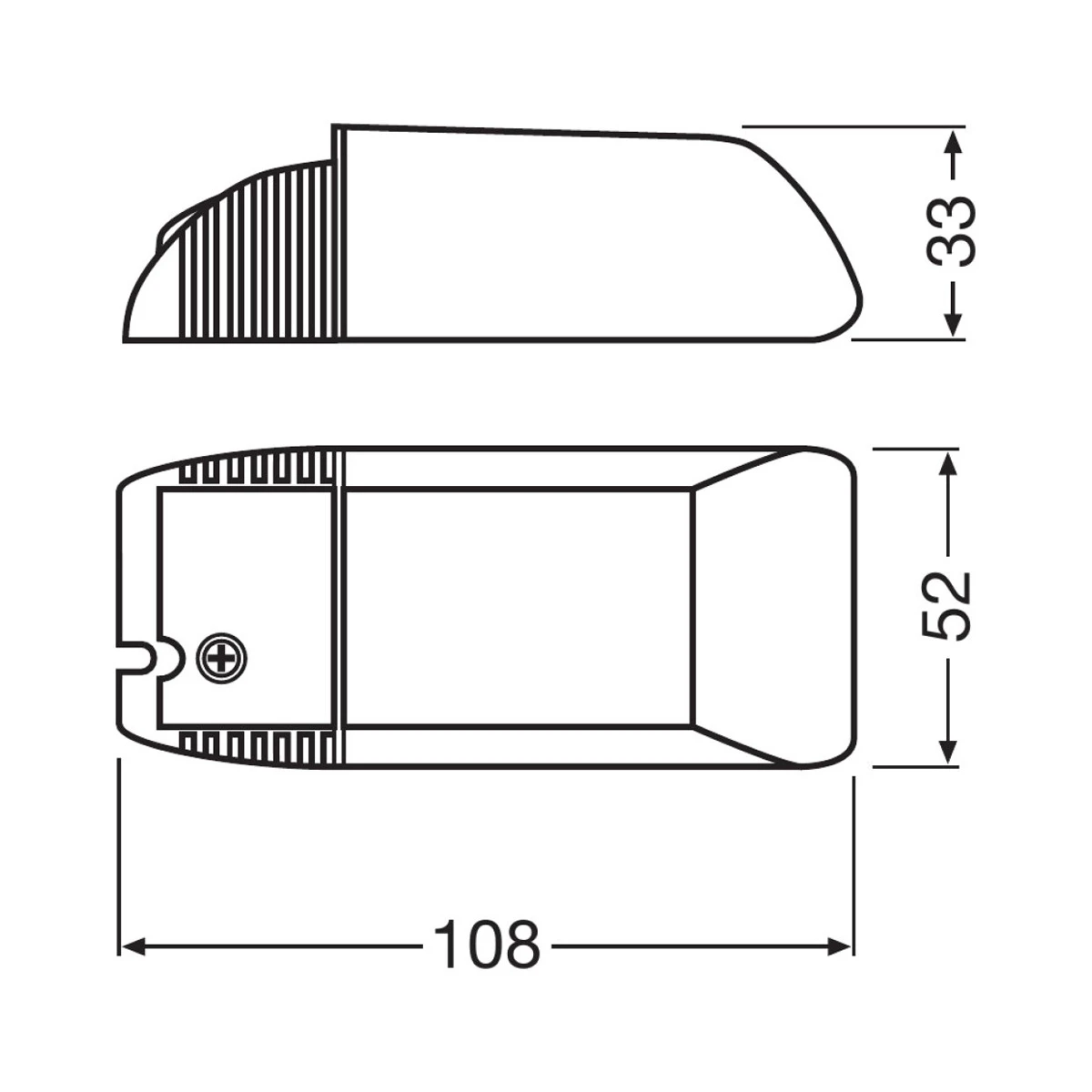

Technical Specifications Technical Specifications Low voltage transformer Type of transformer Electronic transformer Degree of protection (IP rating) IP20 Connection type primary side Screw connection Connection type secondary side Screw connection Width 52 mm Height 33 mm Length 108 mm Input voltage 230 – 240 V Output voltage 11.5 V Power 105 – 105 W · Technical Data Sheet – Click to Download
