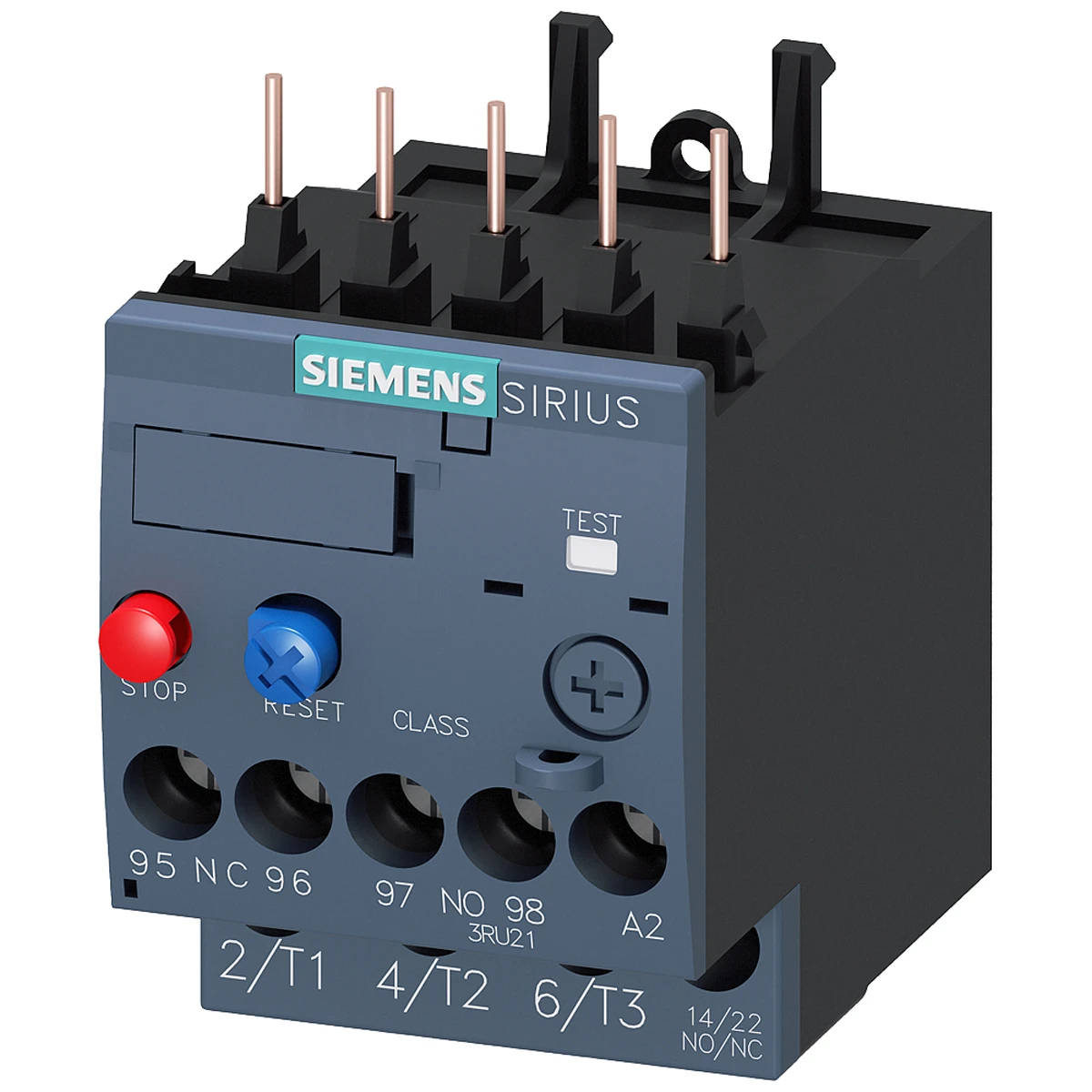

Siemens Overload Relay Thermal 3Pole 2.8-4A 1.5Kw
£53.06 Incl. VAT
Siemens overload relay for motor protection sized S00 and comes with a slide switch display. This relay has a CLASS 10 trip class and a thermal overload release design. The auxiliary circuit for this relay has an integrated switch with 1NC (for contactor disconnection) and 1NO (for message “tripped”) contacts. · · · Adjustable pick-up value current of overload release: 2.8 – 4A · · Screw clamp terminals: 2x (0.5 – 1.5mm²), 2 x (0.75 – 2.5mm²), 2 x 4mm² · · Any mounting position · · Mounting type: Direct mounting · · Electrical connection arrangement for main circuit: Top and bottom · · Operating voltage: 690V · · Operating frequency: 50 – 60Hz · · Tightening torque: 0.8 – 1.2Nm · · Ambient operating temperature: -40°C to 70°C · · IP20 Degree of protection
Description
Technical Specifications Technical Specifications Thermal overload relay Release class CLASS 10 Mounting method Direct attachment Number of auxiliary contacts as normally closed contact 1 Type of electrical connection of main circuit Screw connection Number of auxiliary contacts as change-over contact 0 Max. rated operation voltage Ue 690 V Number of auxiliary contacts as normally open contact 1 Reset function automatic Yes Reset function input No Adjustable current range 2.8 – 4 A Reset function push-button Yes · Technical Data Sheet – Click to Download
