Overload Relay ZB12 Ir=12 - 16A 1 N/O 1 N/C Direct mounting IP20
Overload Relay ZB12 Ir=12 - 16A 1 N/O 1 N/C Direct mounting IP20
Overload Relay ZB12 Ir=12 - 16A 1 N/O 1 N/C Direct mounting IP20 - Image 2

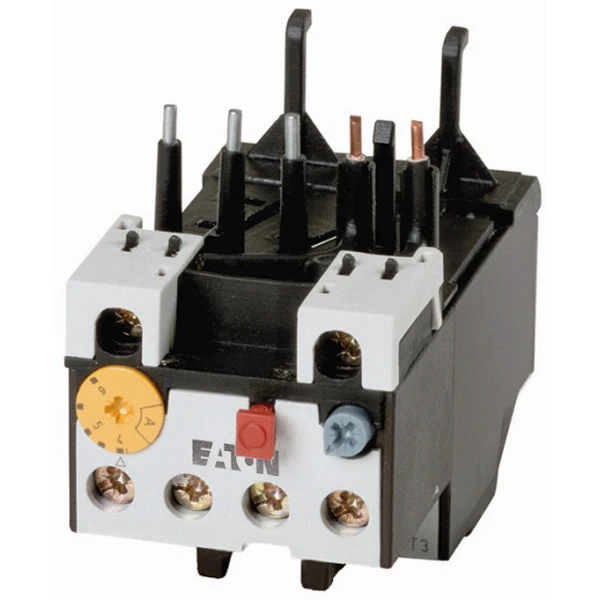

Overload Relay ZB12 Ir=12 - 16A 1 N/O 1 N/C Direct mounting IP20 - Image 3

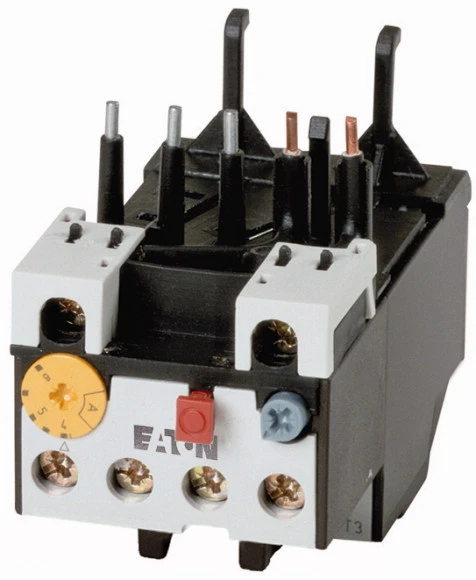

Overload Relay ZB12 Ir=12 - 16A 1 N/O 1 N/C Direct mounting IP20 - Image 4

Overload Relay ZB12 Ir=12 – 16A 1 N/O 1 N/C Direct mounting IP20

£56.92 Incl. VAT

Overload relay, Product range: Overload relay ZB up to 150 A, Accessories: Overload relays, Frame size: ZB12, Phase-failure sensitivity: IEC/EN 60947, VDE 0660 Part 102, Description: Test/off button, Reset pushbutton manual/auto, Trip-free release, Mounting type: Direct mounting, Auxiliary contacts N/O = Normally open: 1 N/O, Auxiliary contacts N/C = Normally closed: 1 N/C, For use with: DILM7, DILM9, DILM12, DILM15,, DIULM7, DIULM9, DIULM12,, SDAINLM12,, SDAINLM16,, SDAINLM22, Standards: IEC/EN 60947, VDE 0660, UL, CSA, Degree of Protection: IP20 · · · Height: 120mm · · Range: ZB12 · · Width: 45mm · · Weight: 150g · · Depth: 88mm · · Reset Type: Automatic / Manual · · Overload Range: 12 – 16A

9 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ZB12-16 Categories: , , Brand: Part Number: 2500230138

Description

Technical Specifications  Technical Specifications Thermal overload relay Mounting method Direct attachment Release class CLASS 10 A Type of electrical connection of main circuit Screw connection Max. rated operation voltage Ue 690 V Number of auxiliary contacts as normally closed contact 1 Number of auxiliary contacts as change-over contact 0 Number of auxiliary contacts as normally open contact 1 Adjustable current range 12 – 16 A Reset function automatic Yes Reset function input No Reset function push-button Yes · Technical Data Sheet – Click to Download
