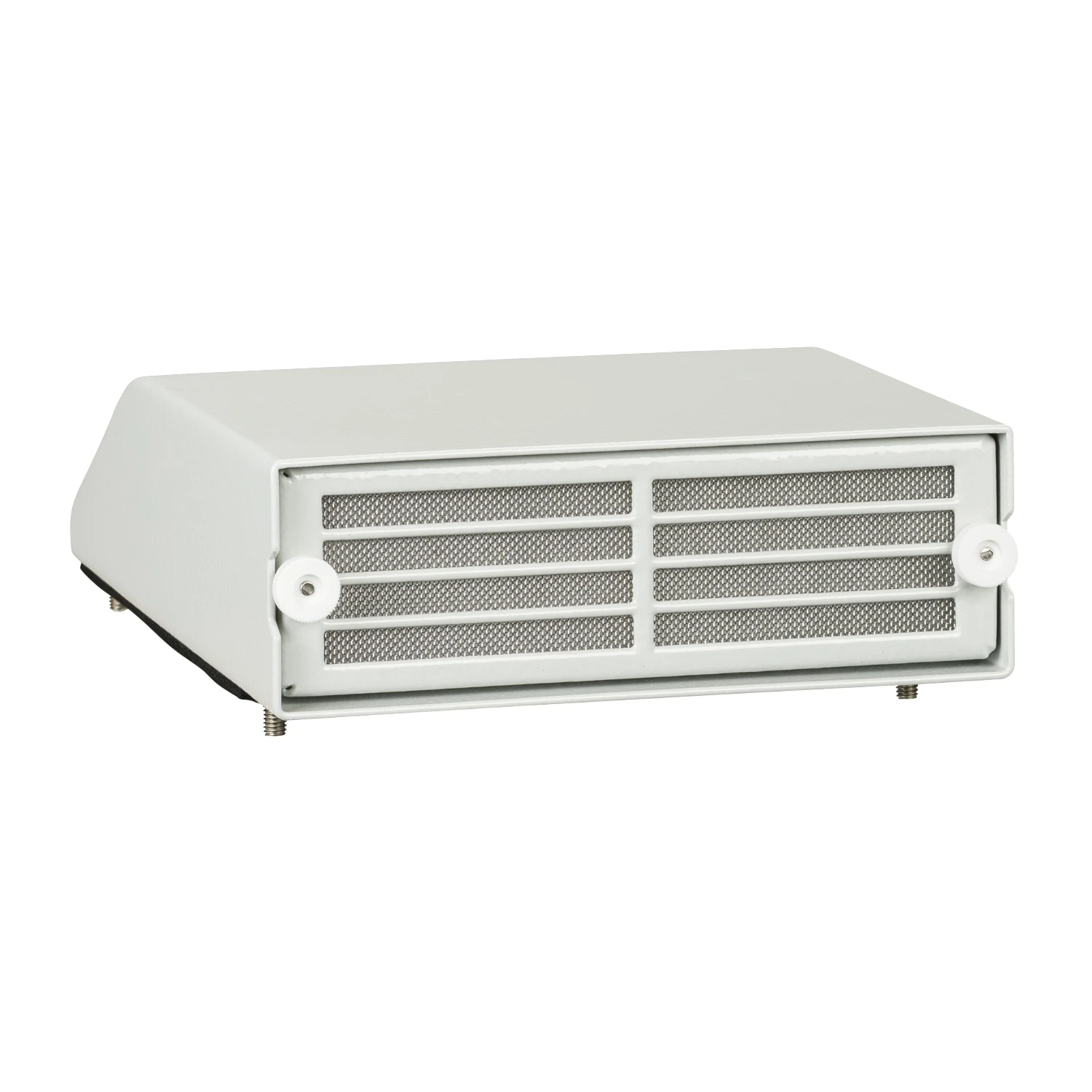

Painted steel cover cut-out 291x291mm with filter IP55

Painted steel cover cut-out 291x291mm with filter IP55. range: ClimaSys – product name: ClimaSys CA – product or component type: sealing cover – accessory / separate part category: thermal management accessory. · · · This solution protects the fan or grille from any direct spray. · · The cover is the preferred solution to ensure the following: – an efficient air flow for cooling, – IP55 rating. · · Material: 2 materials available: – steel painted with epoxy polyester powder (RAL 7035 grey) · · Ingress protection rating (according to IEC 60529): IP55 · · Mechanical protection rating (according to IEC 62262): IK10 · · Certifications: UL Recognized (cURus). Rated 12 and 3R according to UL 50E · · Installation: Double insulation maintained if installed in an insulated enclosure. · · for outdoor appli- cations – stainless-steel 304L for food and beverage applications · · The cover is placed over the fan or the grille with a filter located at the bottom of the cover. · · When mounting: Remove the external part of the fan or the grille as well as the filter.
