Hager Panel Board 12 Way 125A Outgoers Glazed Door 250A

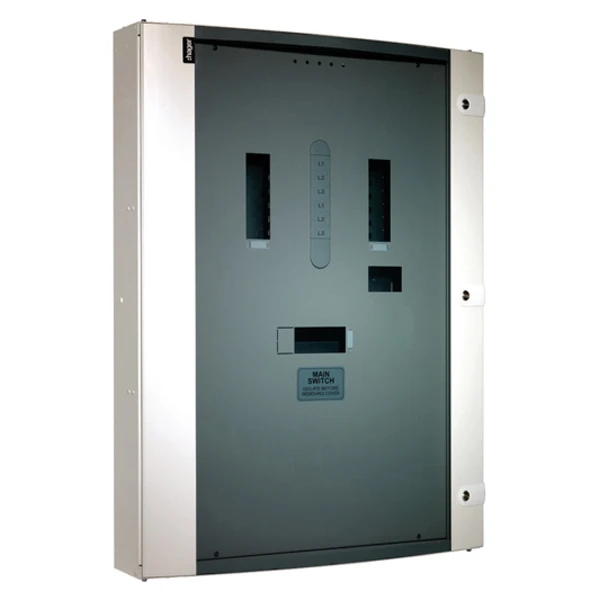

Hager Invicta 3 Panel Board features 250A incoming, 125A outgoing rated comes with glazed door. Enclosures manufactured from 1.5mm DC01M cold reduced mild steel, phosphate pre-treated and powder coated to 00a01 BS4800. Prewired meter packs allow installers to fit metering into the board. All the internal wiring is included. Installation is fast and simple, thanks to a number of features. There is generous space where it is needed for cable bending radii at the top, bottom and sides of the board and twin and earth neutral bars allow easy identification of earth and neutral conductors with the corresponding line conductors. Comprises of enclosure, pan assembly, twin neutral and earth bar. Supplied without incoming kit (Hager 250A incomer kit must be used). · · · Complies with BS EN 61439-2 · · IP3X protection rating · · Internal separation form 3A · · Busbar rated current 250A continuous · · Fixed thermal, fixed magnetic trips
