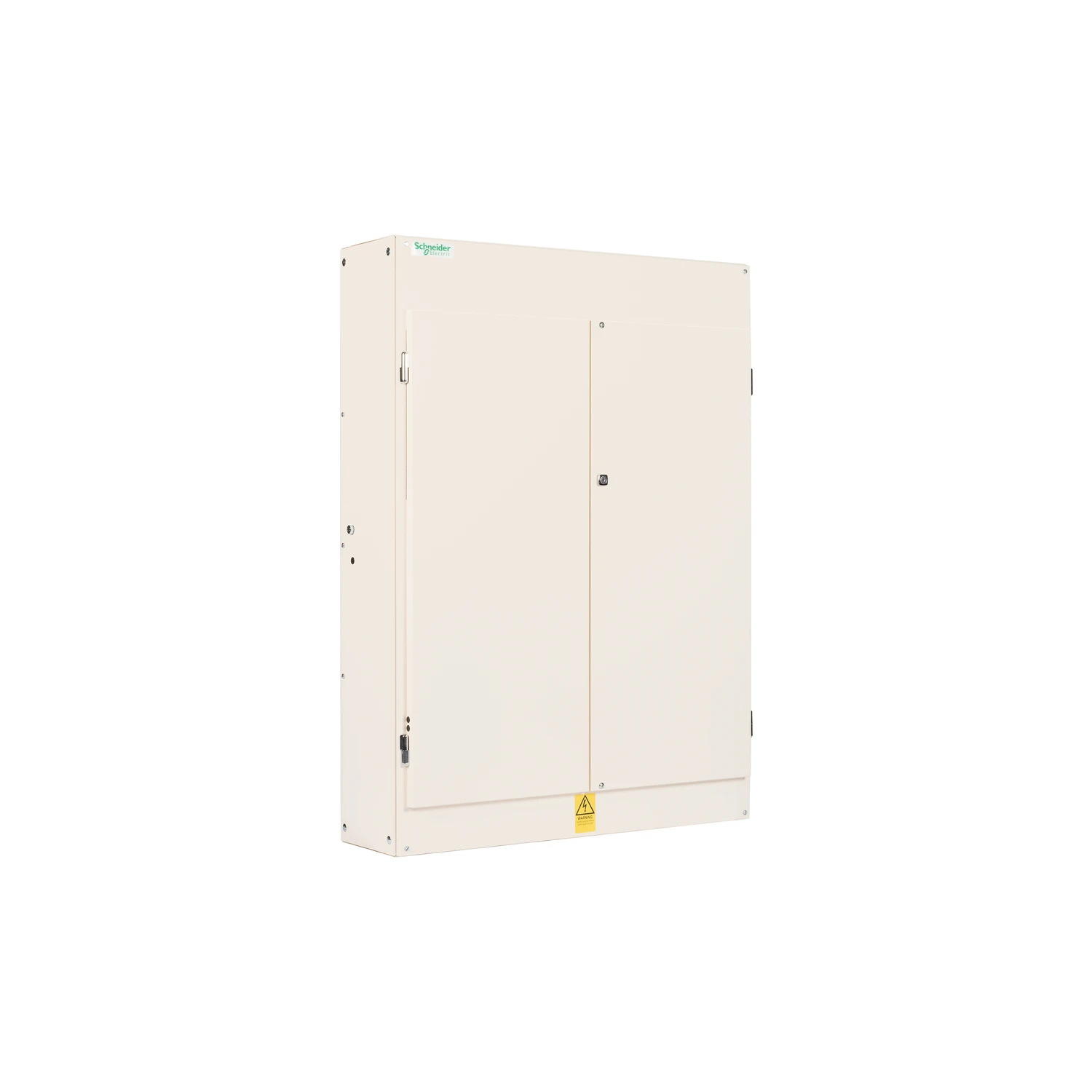

Schneider Electric Panelboard 12Way Triple Pole 630A Ral 9001
Brand: Schneider ElectricProduct code: MG6C12Go Magpie Ref: 5060062343977
Schneider Powerpact-4 Style-D Panel Board comes with end cover and removable bottom gland plate. It is made of epoxy-polyester powder steel. This low voltage distribution board provides many unique features in the field of electrical distribution. The Powerpact 4 MCCB panel board range is ideally suited to installations where space is restricted or few outgoing circuits are required. Its suitable for industrial and commercial applications. · · · Can be added to any incoming or outgoing installation · · Rating 630A · · Protection for incoming and outgoing devices is provided by the Compact NS or NSX range of MCCB’s specifically adapted for Powerpact · · May be used as a main switchboard or sub distribution board · · Form 3b type 2 as standard · · Use of outgoing neutral or 4 pole breakers can increase the form rating to form 4b types 2 and 6 · · High current ratings: Effective · · Ready to install: Easy installation · · Robust steel work: Durable · · Uses compact breakers: Superior protection
£2,138.00inc VAT£1,781.67 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
Description
Technical Specifications Technical Specifications Small distribution board equipped Width 850 mm Main switch rated current 630 A Height 1493 mm Number of poles main switch 4 Total number of groups 12 Depth 260 mm Number of phases 3 Over voltage-/surge protection No With socket outlet Yes With bell transformer No Cooker group suitable as power current group No With transparent cover No Extension possible Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2191606
