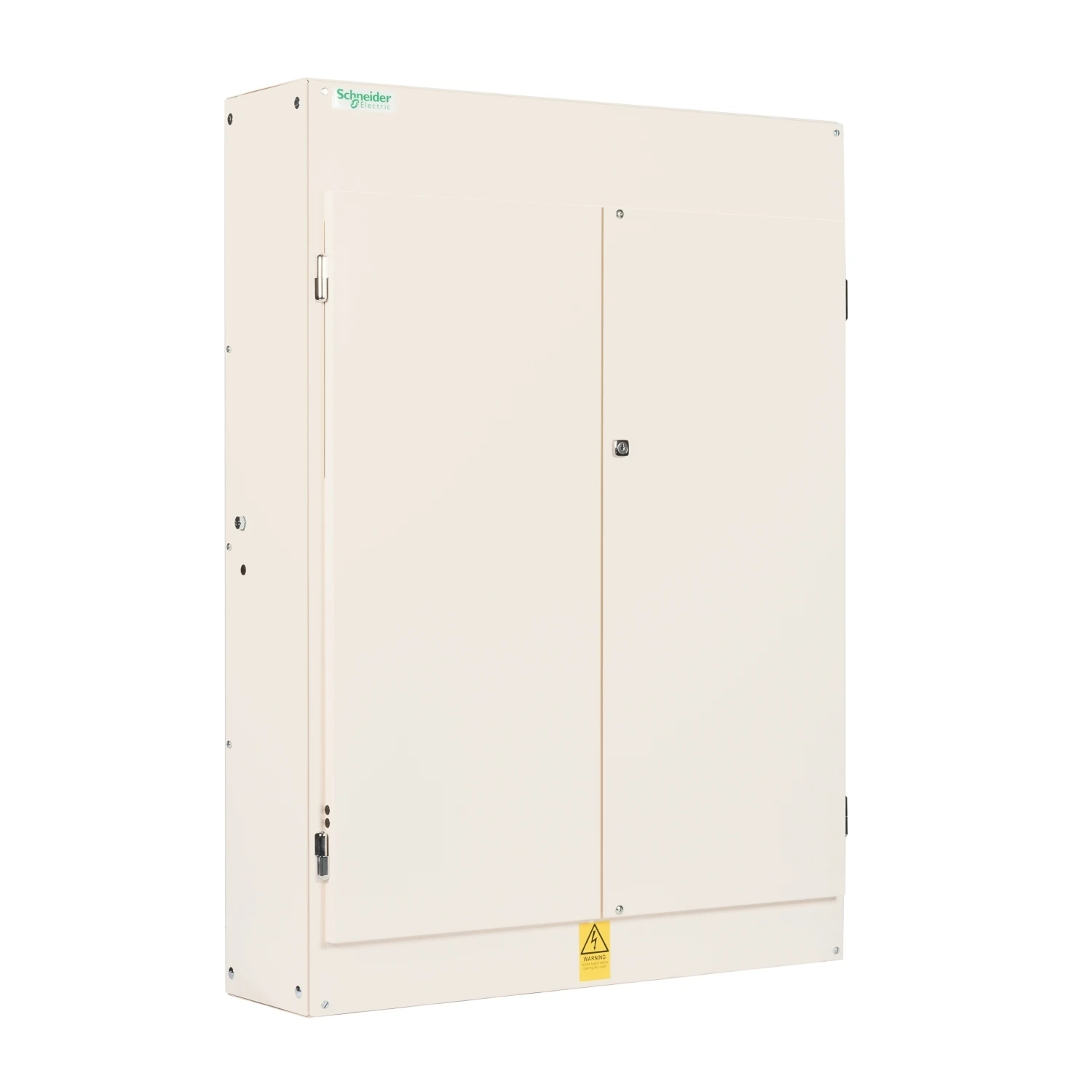

Panelboard 18Way Single Pole 800A Ral 9001

Schneider Electric MG8C18 18 Way 800A Powerpact 4 panelboard is ideally suited to installations where space is restricted or few outgoing circuits are required. Protection for incoming and outgoing devices is provided by the Compact NS or NSX range of MCCB’s specifically adapted for Powerpact. · · · May be used as a main switchboard or sub distribution board · · Robust and durable steel housing · · Uses compact breakers for superior protection · · Number of ways: 54 Ways (Single Pole), 18 Ways (Triple Pole) · · Current Rating: 800A · · Rated operational voltage: 415V AC (50Hz) · · Breaking capacity: 50kA AC · · Thickness: 1.2mm (Cover), Enclosure: 1.6mm · · Form 3b type 2 as standard; Use of outgoing neutral or 4 pole breakers can increase the form rating to form 4b types 2 and 6 · · In accordance with BS EN 60439-1
