Panelboard 8 Way Outgoing Up To 160A 250A

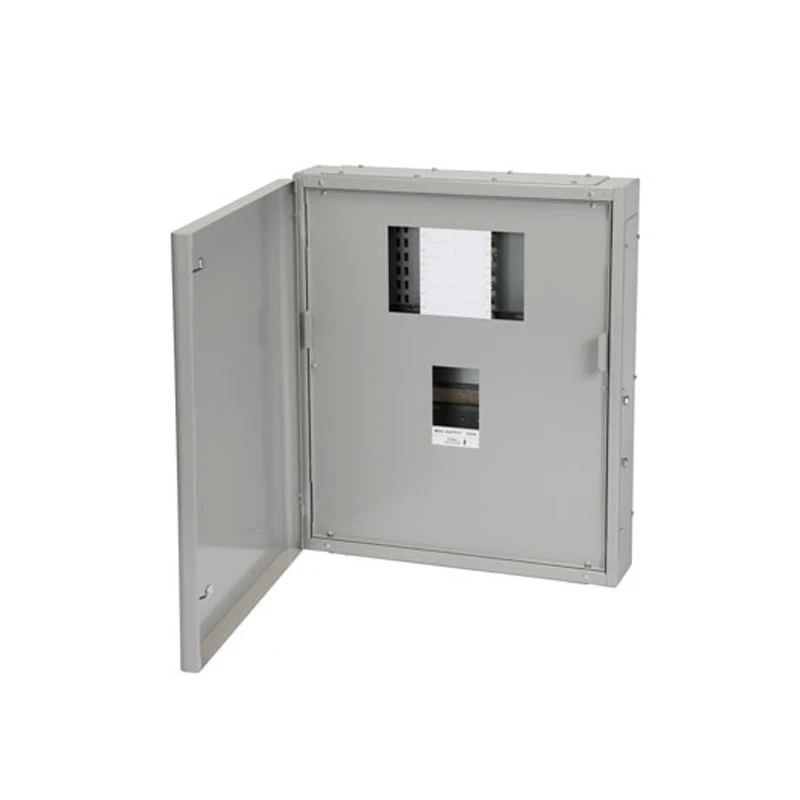

Panelboard 8 Way Outgoing Up To 160A 250A

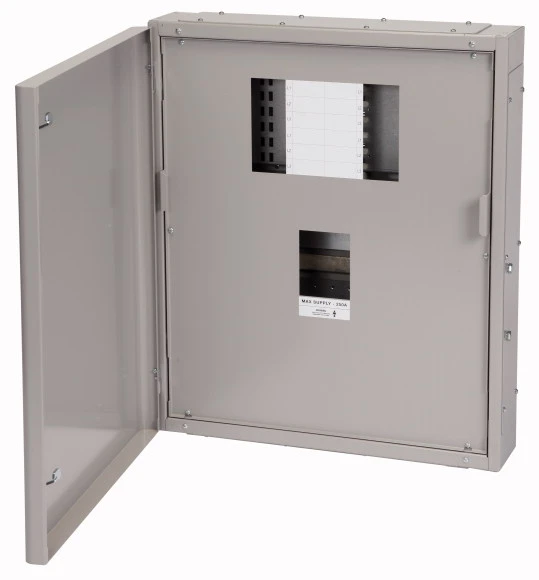

Panelboard 8 Way Outgoing Up To 160A 250A - Image 2
Panelboard 8 Way Outgoing Up To 160A 250A - Image 3

Panelboard 8 Way Outgoing Up To 160A 250A

£1,133.64 Incl. VAT

MEM 3 accessories 250A · · · Associated with incoming devices such as NZM2 MCCB or N2 switch disconnector · · Tin-plated busbar · · Outgoing devices; NZM1 16A125A SP & 20A160A TP · · Incoming rating up to 250A, outgoing ratings up to 160A · · NZM2 MCCB or N2 switch disconnector or direct lugs connection · · Can be configured for incomer device at top of panelboard · · Panelboards to IEC61439-2. Form 3b Type 2 · · Removable side gland plates as standard · · Tinplated busbars · · Minimum ordering requirement: panelboard + incoming device + incomer connection kit + outgoing devic

4 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EPBN1825 Categories: , , Brand: Part Number: 2500461509

Description

Technical Specifications  Technical Specifications Enclosure/switchgear cabinet Material Steel Colour Grey Impact resistance (IK rating) IK06 Surface finish Powder coated Height 185 mm Width 700 mm RAL number 7004 Depth 1010 mm Number of locks 0 Number of doors 1 Suitable for wall mounting No With mounting plate No Max. permissible load of the mounting plate according to IEC 62208 0 N Max. permissible load of the door(s) according to IEC 62208 0 N Max. permissible load of the enclosure according to IEC 62208 0 N Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 85 W Number of connector holes 0 Suitable for wall built-in No With backside door No With ventilation door No Pole fastening No Corner model No Couplable No Intermediate mounting No Mounting plate depth-adjustable No Pre-stamping No EMC-version No Freestanding No With cover Yes Suitable for metrical mounting No Suitable for outdoor set-up No Pitched roof No Floor standing wall model No With door No With glazed door No Transparent cover No · Technical Data Sheet – Click to Download
