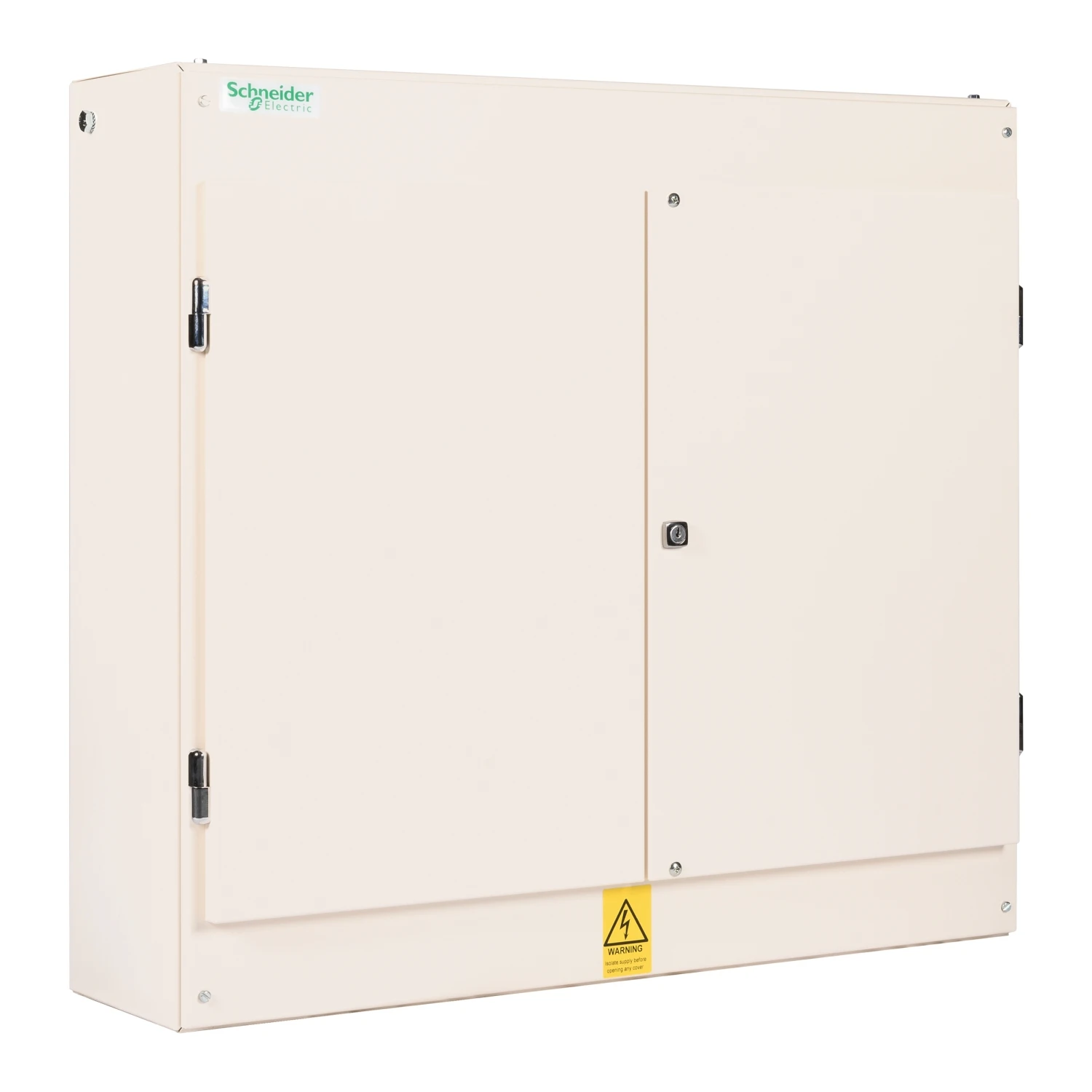

Panelboard Triple Pole 13 Way 250A RAL 9001
Panelboard Triple Pole 13 Way 250A RAL 9001
Panelboard Triple Pole 13 Way 250A RAL 9001 - Image 2
Panelboard Triple Pole 13 Way 250A RAL 9001 - Image 3

Panelboard Triple Pole 13 Way 250A RAL 9001

£1,871.28 Incl. VAT

Schneider Electric MG2C13 39 Way 250A Powerpact 4 panelboard is ideally suited to installations where space is restricted or few outgoing circuits are required. Protection for incoming and outgoing devices is provided by the Compact NS or NSX range of MCCB’s specifically adapted for Powerpact. · · · Colour: RAL 9001 Cream · · Current Rating: 250A · · Range: Powerpact 4 · · Number of Outgoing Ways: 39 Way · · Number of Ways: 39 Way (Single Pole), Thirteen Way (Triple Pole)

2 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: MG2C13 Categories: , , Brand: Part Number: 2500173714

Description

Technical Specifications  Technical Specifications Small distribution board equipped Housing material Steel Protection Miniature circuit breaker/RCBO Width 600 mm Degree of protection (IP rating) IP3X Depth 268 mm Main switch rated current 250 A Number of poles main switch 4 Height 650 mm Total number of groups 13 Number of phases 3 With socket outlet Yes With transparent cover No Extension possible Yes With bell transformer No Over voltage-/surge protection No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2191606
