Distribution Equipment

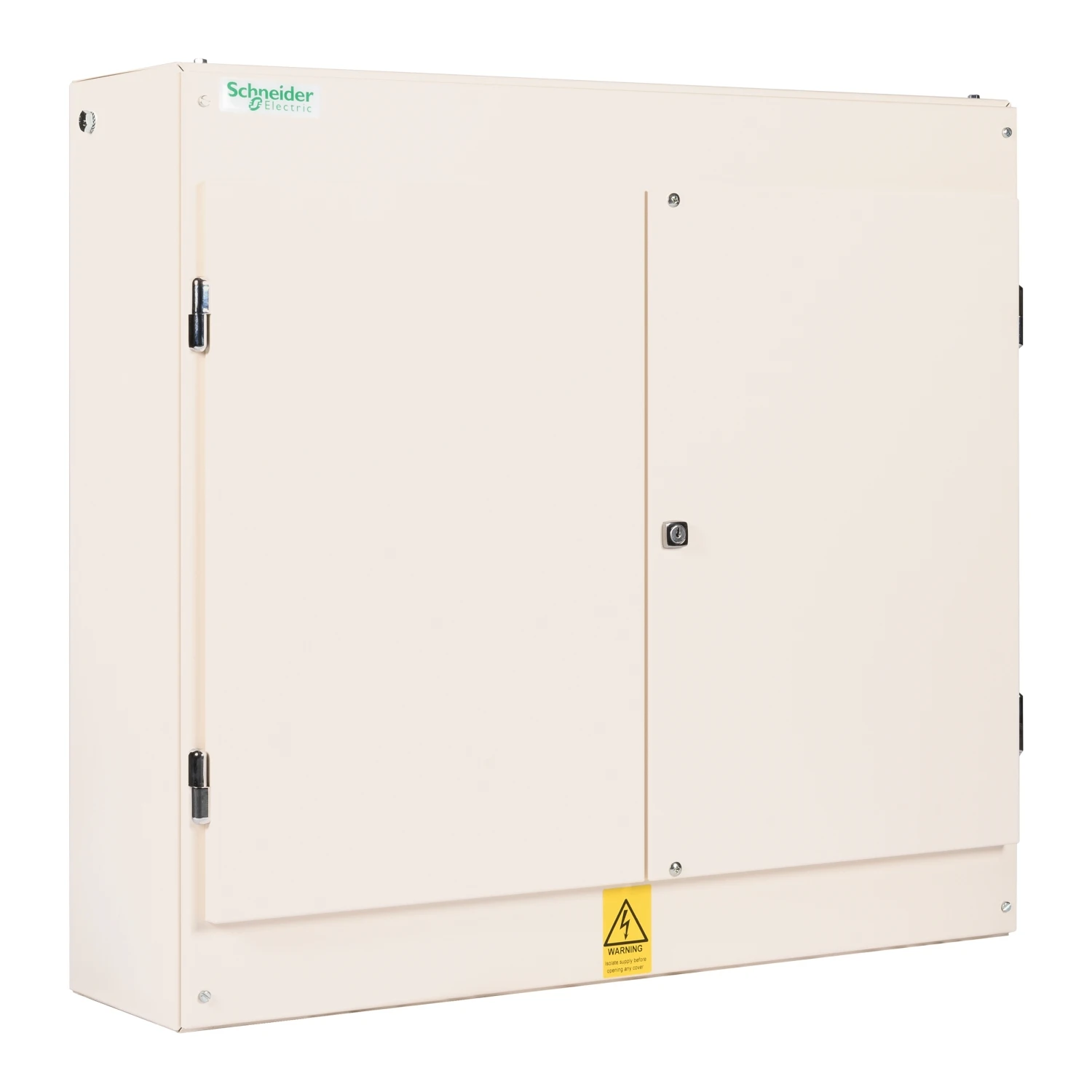

Schneider Electric Panelboard Triple Pole 5 Way 250A RAL 9001

Brand: Schneider ElectricProduct code: MG2C5Go Magpie Ref: 5060062362156

Schneider Powerpact-4 Style-C Panel Board comes with end cover and removable bottom gland plate. It is made of epoxy-polyester powder steel. This low voltage distribution board provides many unique features in the field of electrical distribution. The Powerpact 4 MCCB panel board range is ideally suited to installations where space is restricted or few outgoing circuits are required. Its suitable for industrial and commercial applications. · · · Can be added to any incoming or outgoing installation · · Rating 250A · · Protection for incoming and outgoing devices is provided by the Compact NS or NSX range of MCCB’s specifically adapted for Powerpact · · May be used as a main switchboard or sub distribution board · · Form 3b type 2 as standard · · Use of outgoing neutral or 4 pole breakers can increase the form rating to form 4b types 2 and 6 · · High current ratings: Effective · · Ready to install: Easy installation · · Robust steel work: Durable · · Uses compact breakers: Superior protection

£1,196.59inc VAT£997.16 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Small distribution board equipped Housing material Steel Protection Miniature circuit breaker/RCBO Degree of protection (IP rating) IP3X Height 680 mm Number of poles main switch 4 Width 853 mm Depth 260 mm Total number of groups 5 Main switch rated current 250 A With socket outlet Yes Number of phases 3 With bell transformer No Extension possible Yes With transparent cover No Over voltage-/surge protection No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2191606
