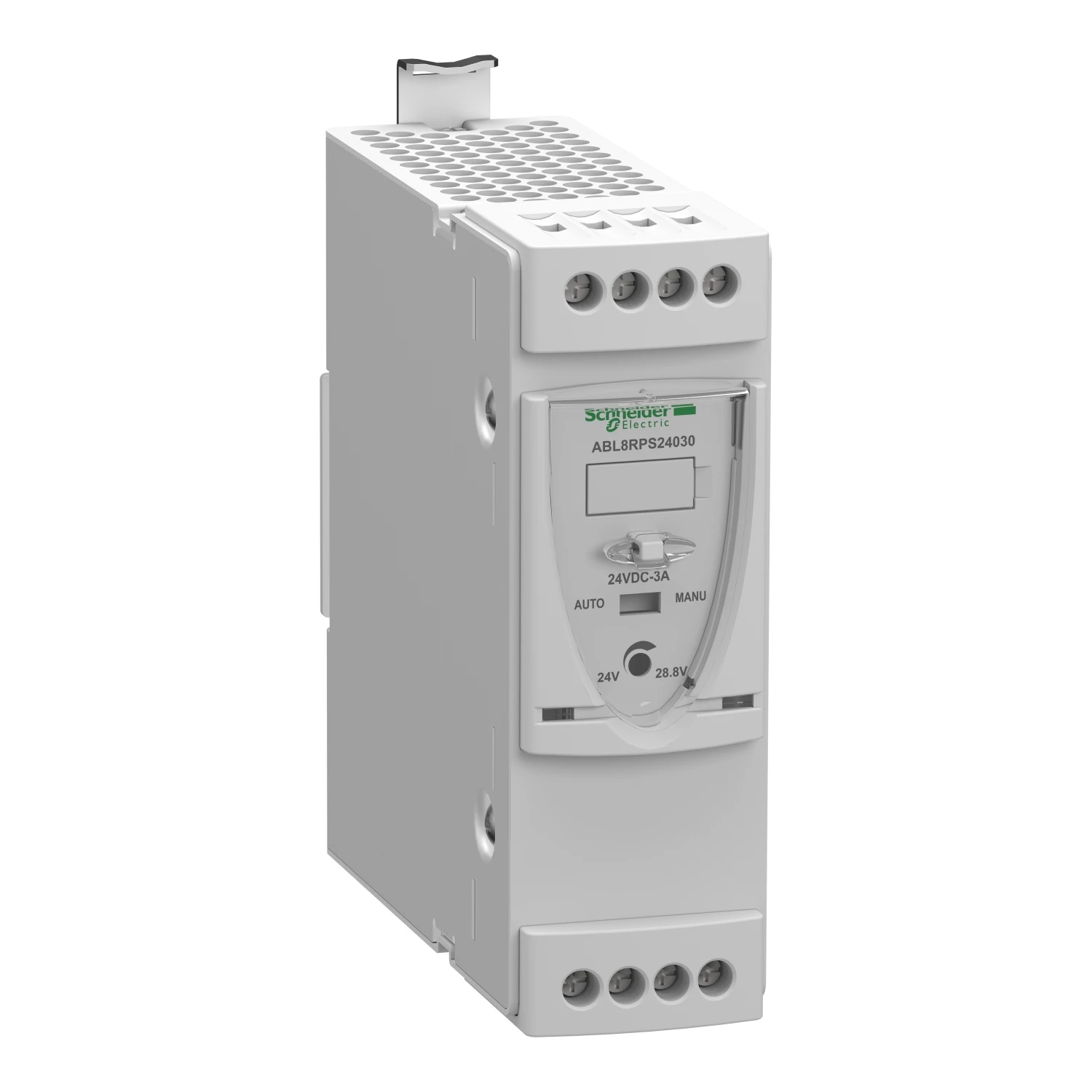

Phaseo Regulated SMPS 1/2 Phase 100-500V AC 24V 3A
Phaseo Regulated SMPS 1/2 Phase 100-500V AC 24V 3A
Phaseo Regulated SMPS 1/2 Phase 100-500V AC 24V 3A - Image 2
Phaseo Regulated SMPS 1/2 Phase 100-500V AC 24V 3A - Image 3

Phaseo Regulated SMPS 1/2 Phase 100-500V AC 24V 3A

£162.50 Incl. VAT

This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 3A at 24V DC and a rated power output of 72W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 44mm-wide. It weighs 0,300kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD07, GV2RT06 and GV2ME06 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness. · · · This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. · · It has a rated input of 100V to 500V AC, a rated output current of 3A at 24V DC and a rated power output of 72W. · · It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. · · It installs easily on DIN rail and is 44mm-wide. · · It is also equipped with a PFC (Power Factor Correction) filter. · · Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. · · It has LED diagnostics indicator available in the front for troubleshooting instantly.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ABL8RPS24030 Categories: , , Brand: Part Number: 2500653534

Description

Technical Specifications  Technical Specifications DC-power supply Height 143 mm Width 45 mm Width in number of modular spacings – Max. output current 1 3 A Max. output current 2 – A Max. output current 3 – A Nominal value output current 2 – A Depth 125 mm Nominal value output voltage 3 – V Nominal value output current 1 3 A Nominal value output current 3 – A Nominal value output voltage 1 24 V Nominal value output voltage 2 – V Power output 72 W Recess width – mm Rated supply voltage at AC 50 Hz 100 – 500 V Rated supply voltage at DC – – – V 1st secondary output voltage 24 – 28.8 V 3rd secondary output voltage – – – V 2nd secondary output voltage – – – V Recess height – mm Power consumption – VA Rated supply voltage at AC 60 Hz 100 – 500 V Modular version No Short-circuit-proof Yes Wall mounting possible No Secondary voltage adjustable Yes Output voltage stabilized Yes Rail mounting possible Yes Suitable for safety functions Yes Stabilized Yes Direct mounting possible Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2189232
