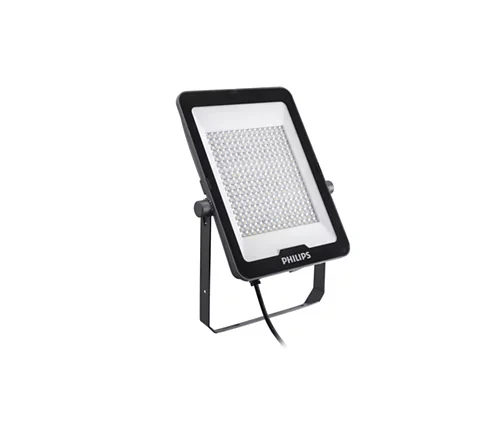

Philips Ledinaire Floodlight BVP165 4000K 2100Lm LED210/840 PSU 200W AWB CE

Description

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Outer diameter – mm Lamp cap/base E10 Rated luminous flux acc. IEC 62722-2-1 21000 lm Recess width – mm Number of lamps 358 Maximum system power 200 W Luminous intensity – cd Height/depth 37.7 mm Conductor cross section 1 mm² Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) – % Flickering value Pst LM 1 Stroboscope effect value SVM 5 Length 336 mm Width 482 mm Number of poles 3 Recess length – mm Total harmonic distortion 20 Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Max. number of luminaires per miniature circuit breaker B16 11 Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Recess height/depth – mm Luminaire efficacy 105 lm/W Max. number of luminaires per miniature circuit breaker C16 13 Unified Glare Rating (UGR) 26 Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) – % Rated life time L70/B50 at 25 °C 50000 h Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) 5 % Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) 70 % Power factor 0.95 Lamp power – – – W Nominal voltage 220 – 240 V Connectable conductor cross section 1 – 1 mm² Colour temperature 4000 – 4000 K Suitable for wall mounting No With movement sensor No Suitable for suspended mounting No With light sensor No Rated ambient temperature acc. IEC62722-2-1 25 – 25 °C Cut-out diameter – – – mm Luminous flux 18900 – 23100 lm Control gear included Yes Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Light source included Yes Fit for workplace acc. EN 12464-1 No Luminaire may be covered with thermally insulating material No Brushed surface No Emergency power supply integrated No Suitable for light-track mounting No Suitable for pedestal/floor mounting Yes Constant luminous flux control No Suitable for ceiling mounting No Suitable for surface mounting No Compatible with Apple HomeKit No Dimming trailing edge No Suitable for traverse mounting No Suitable for clamp-mounting No IFTTT support available No Dimming DALI-2 No Compatible with Amazon Alexa No Suitable for low voltage cable system No Dimming RF No Dimming LineSwitch No Suitable for recessed mounting No Dimming DALI No Dimming leading edge No Dimming sine wave reduction No Dimming potentiometer (integrated) No Dimming mains voltage modulation No Dimming programmable No Dimming touch and dim No No dimming function Yes Replaceable control gear No Dimming with push-button No Dimming Zigbee No Dimming DSI No Compatible with Google Assistant No Dimming DMX No Dimming 0-10 V No Dimming manufacturer’s proprietary system No Dimming 1-10 V No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
