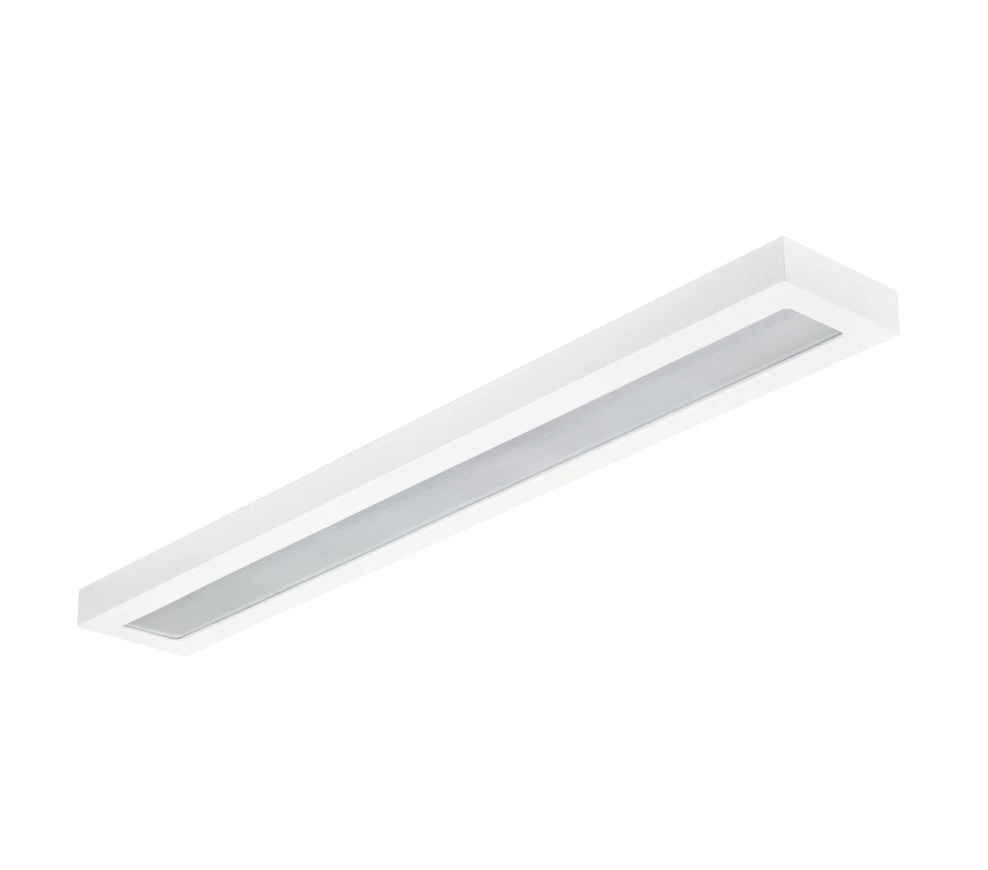

Philips Surface Mount LED SM136V 31S_37S_43S/840 PSD W20L150OCCELB3
£285.25 Incl. VAT
CoreLine surface-mounted delivers on the CoreLine promise of innovative, easy-touse, high-quality luminaires. The high-quality CoreLine surface-mounted is designed to replace existing surface-mounted luminaires with T8 or T5 technology. This family features an innovative new choice of multiple lumen outputs in one single luminaire, called MultiLumen. Instant energy savings and a longer lifetime, make this is an environmentally friendly and cost saving solution. With a quickconnector feature, our surface-mounted luminaires are simple and easy to install. Also available within the range are Interact Ready luminaires with integrated wireless communications, fully compatible with Interact gateways, sensors and software. · · · Surface Mounted LED light fixture ideal for commercial and office use · · Switchable lumen output 3100 lumen, 3700 lumen or 4300 lumen · · 3 hour maitained emergency operation · · 140 lumen per circuit watt · · Lifetime 50,000 hr L80 · · 5 year warranty
Description
Technical Specifications Technical Specifications Ceiling / wall luminaire Lamp cap/base E10 Width 200 mm Length 1430 mm Conductor cross section 0.75 mm² Power factor 0.9 Outer diameter – mm Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) 20 % Rated life time L70/B50 at 25 °C – h Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) – % Stroboscope effect value SVM 0.4 Maximum system power 34 W Recess height/depth – mm Max. number of luminaires per miniature circuit breaker B16 30 Height/depth 68.5 mm Unified Glare Rating (UGR) 19 Recess length – mm Number of poles 7 Recess diameter – mm Recess width – mm Number of lamps 1 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) 80 % Max. number of luminaires per miniature circuit breaker C16 50 Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) – % Flickering value Pst LM 1 Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Lamp power – – – W Nominal voltage 220 – 240 V Nominal current 100 – 150 mA Colour temperature 4000 – 4000 K Rated ambient temperature acc. IEC62722-2-1 0 – 25 °C Suitable for suspended mounting No With light sensor No Light source included Yes With movement sensor No Suitable for light line configuration No Suitable for recessed mounting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for ceiling mounting Yes Fit for workplace acc. EN 12464-1 Yes Suitable for surface mounting Yes With air slots No Control gear included Yes Suitable for emergency lighting Yes Constant luminous flux control No Dimming 1-10 V No Luminaire may be covered with thermally insulating material Yes Compatible with Google Assistant No Compatible with Amazon Alexa No Bluetooth operated No Dimming programmable No Dimming touch and dim Yes Dimming mains voltage modulation No Replaceable control gear Yes Dimming DMX No Dimming leading edge No Dimming DALI-2 No Dimming with push-button No Dimming manufacturer’s proprietary system No IFTTT support available No Dimming trailing edge No Dimming DALI Yes Dimming potentiometer (integrated) No Compatible with Apple HomeKit No Dimming DSI No Dimming 0-10 V No Dimming RF No Dimming Zigbee No · Technical Data Sheet – Click to Download
