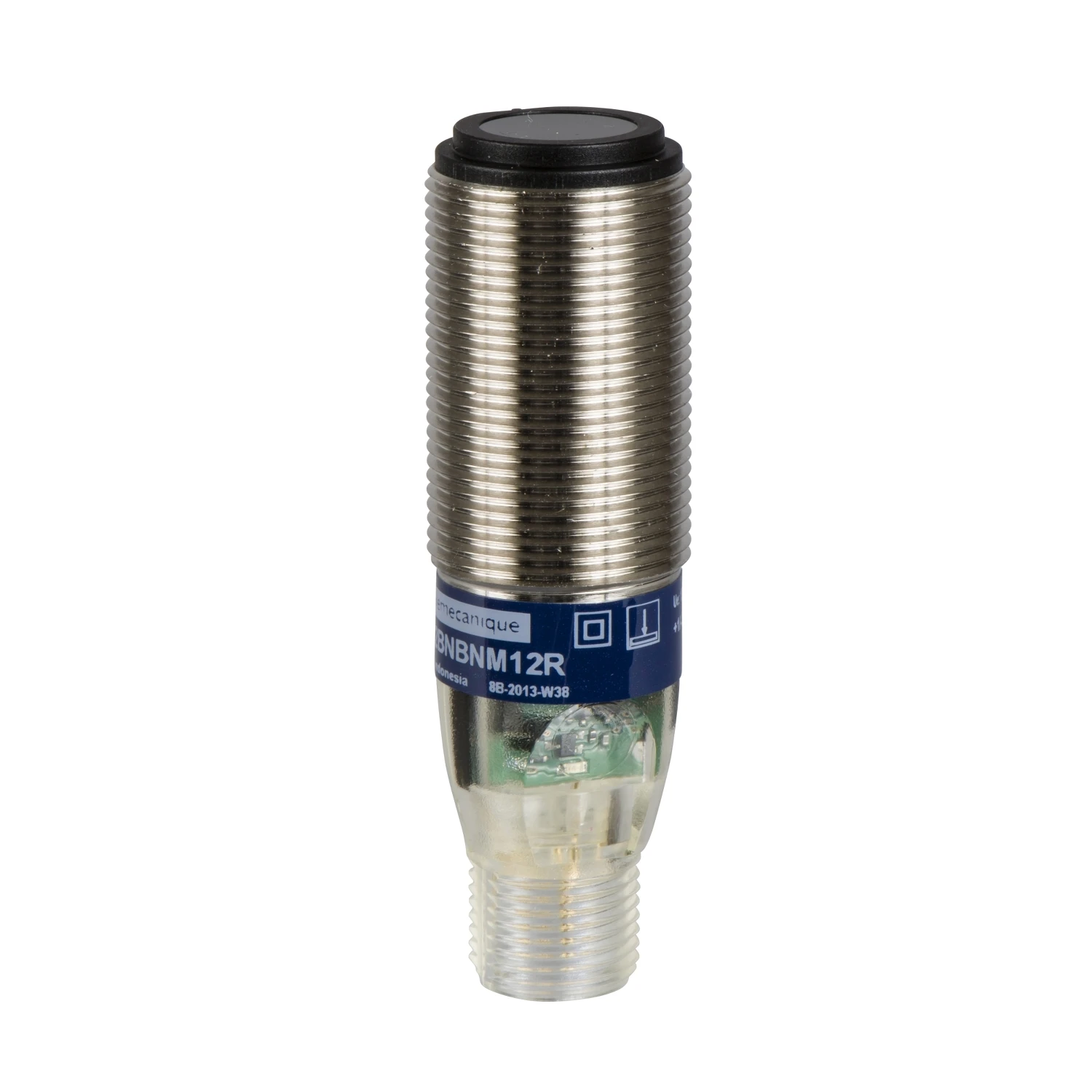

Photo-electric sensor, XUB, diffuse, Sn 0,1m, 12..24VDC, M12
£91.32 Incl. VAT
This design 18 single mode (diffuse system) photo-electric sensor has a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This mono-mode cylindrical photoelectric sensor has a metallic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides high robustness to the sensor. 1 LED display allows to identify status of the sensor. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified. · · · This design 18 single mode (diffuse system) photo-electric sensor has a nickel plated brass case. · · It has a supply voltage of 12V to 24V DC. · · This mono-mode cylindrical photoelectric sensor has a metallic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · Corrosion-resistant and non-magnetic nickel plated brass provides high robustness to the sensor. · · 1 LED display allows to identify status of the sensor.
Out of stock
Description
Technical Specifications Technical Specifications Diffuse reflective photoelectric sensor Laser protection class None Material of optical surface Plastic Explosion safety category for dust None Sensing mode Light switching Explosion safety category for gas None Construction type housing Cylinder, screw-thread Type of light Infrared light Type of switch function Normally open contact (NO) Voltage type AC/DC Type of safety acc. IEC 61496-1 1 Degree of protection (IP rating) IP67K Type of switching output PNP/PNP Housing material Metal Type of electric connection Connector M12 AWG-number – Diameter sensor 18 mm Switching voltage of OSSD at state “high” – V Max. output current at protected output 100 mA Wavelength of the sensor – nm Operation agent-safety class Safety class 0 Maximum output current 100 mA Length of sensor 60 mm Number of semiconductor outputs with signalling function 1 Number of protected contact energized outputs 0 Number of protected semiconductor outputs 1 Number of contact energized outputs with signalling function 0 Switching frequency 500 Hz Light dot – mm² Transmission range of the safety field 3 m Width sensor – mm Rated control supply voltage at AC 60 Hz – V Rated control supply voltage at AC 50 Hz – V Ambient temperature -25 – 55 °C Height of sensor – mm Min. reflector distance 0.3 mm Reaction time 1 ms Max. switching distance 150 mm Operating distance 100.00 – 100.00 mm Rated control supply voltage at DC 12 – 24 V With time function No Operating distance 100 – 100 mm Analogue output 0 V … 10 V No With monitoring function downstream switching devices No With restart blockage No Suitable for safety functions No Reflector included No Analogue output 0 mA … 20 mA No With communication interface analogue No With other analogue output No Pre failure notice No Analogue output -10 V … +10 V No Analogue output 4 mA … 20 mA No With communication interface SSI No With communication interface SSD No With communication interface RS-485 No With communication interface DeviceNet No With communication interface INTERBUS No With communication interface PROFIBUS No With communication interface RS-422 No With communication interface RS-232 No With communication interface Ethernet No With communication interface AS-Interface No With communication interface CANOpen No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188162
