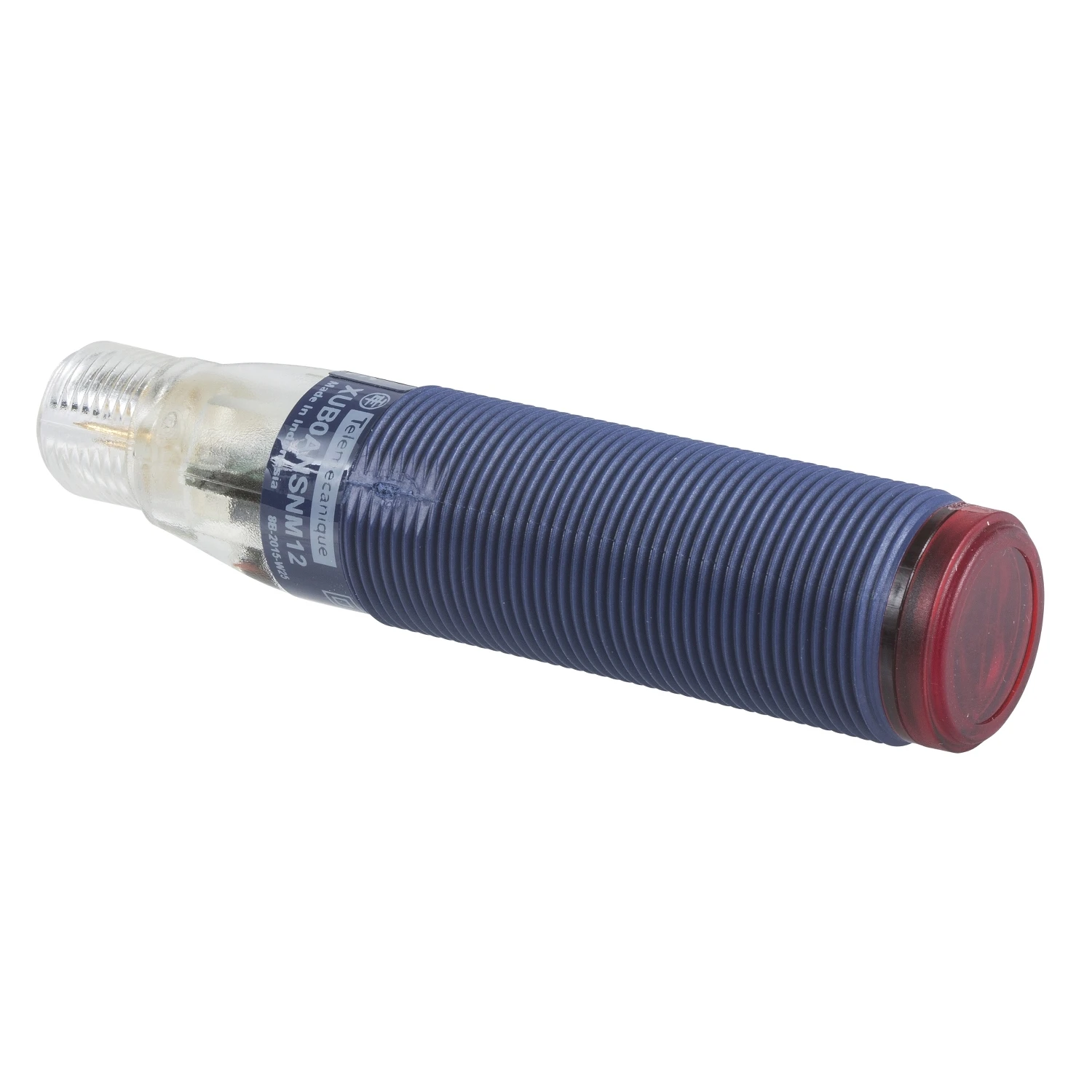

Photo-electric sensor, XUB, diffuse, Sn 0,1m, 12..24VDC, M12

Description

Technical Specifications  Technical Specifications Diffuse reflective photoelectric sensor Housing material Plastic Material of optical surface Plastic Laser protection class None Explosion safety category for dust None Explosion safety category for gas None Construction type housing Cylinder, screw-thread Type of switch function Normally open contact (NO) Degree of protection (IP rating) IP65 Voltage type AC/DC Type of safety acc. IEC 61496-1 1 Type of switching output PNP/PNP Type of electric connection Connector M12 Type of light Infrared light Sensing mode Dark switching Max. switching distance 150 mm Diameter sensor 18 mm Wavelength of the sensor – nm Switching voltage of OSSD at state “high” – V Height of sensor – mm AWG-number – Maximum output current 100 mA Operation agent-safety class Safety class 0 Length of sensor 60 mm Number of semiconductor outputs with signalling function 1 Number of protected contact energized outputs 0 Number of contact energized outputs with signalling function 0 Switching frequency 500 Hz Light dot – mm² Transmission range of the safety field 3 m Number of protected semiconductor outputs 1 Width sensor – mm Operating distance 100.00 – 100.00 mm Rated control supply voltage at AC 60 Hz – V Rated control supply voltage at AC 50 Hz – V Max. output current at protected output 100 mA Reaction time 1 ms Min. reflector distance 0.3 mm Ambient temperature -25 – 55 °C Rated control supply voltage at DC 12 – 24 V Operating distance 100 – 100 mm With time function No With monitoring function downstream switching devices No Suitable for safety functions No Analogue output -10 V … +10 V No With other analogue output No With communication interface CANOpen No With communication interface INTERBUS No With communication interface DeviceNet No With communication interface Ethernet No With communication interface RS-232 No With communication interface AS-Interface No With communication interface analogue No Reflector included No Analogue output 0 V … 10 V No Pre failure notice No With restart blockage No Analogue output 0 mA … 20 mA No Analogue output 4 mA … 20 mA No With communication interface RS-485 No With communication interface PROFIBUS No With communication interface RS-422 No With communication interface SSD No With communication interface SSI No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188162
