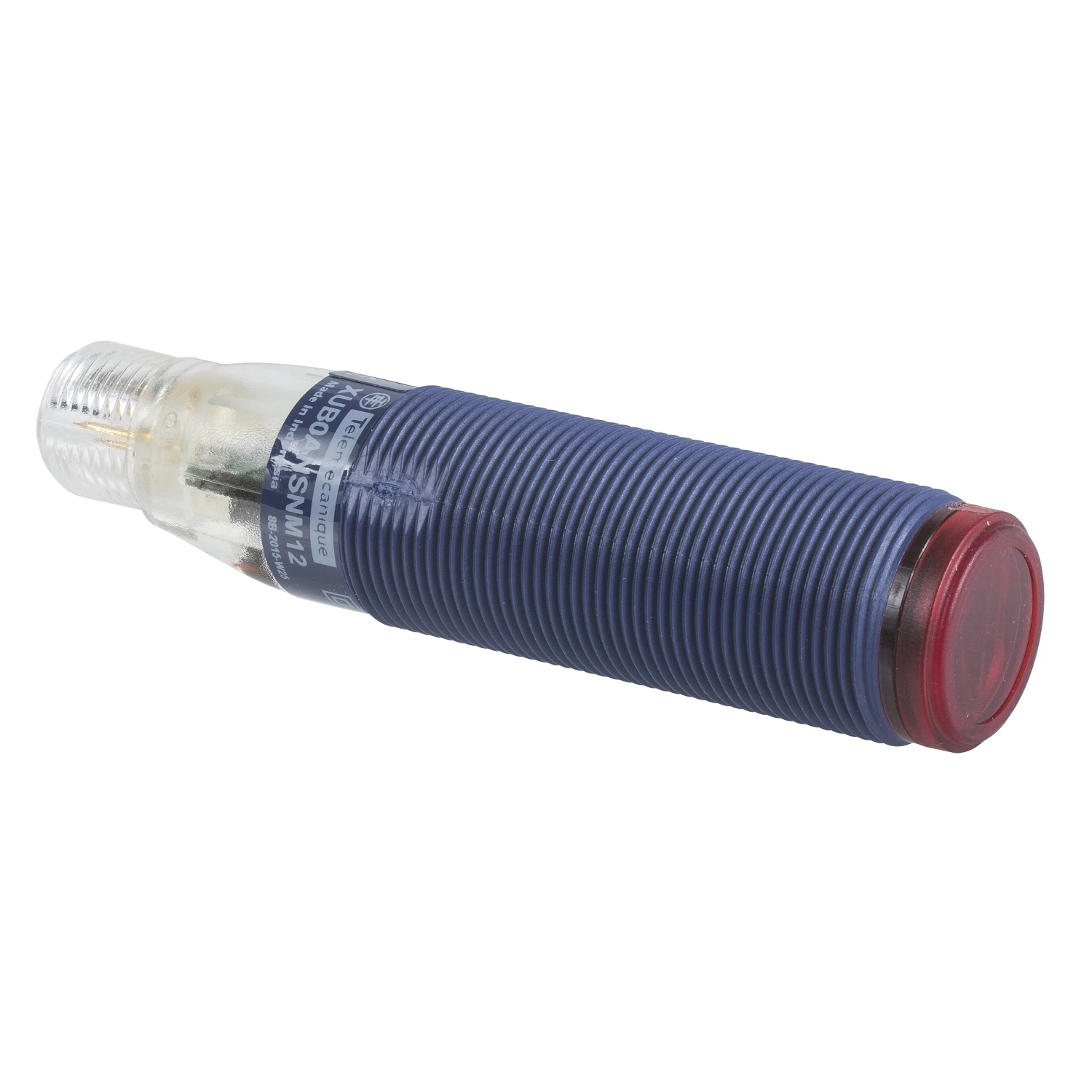

Photo-electric sensor, XUB, emitter, 12..24VDC, M12
£52.74 Incl. VAT
This design 18 single mode (thru-beam system) photo-electric transmitter has a PBT case. It has a supply voltage of 12V to 24V DC. This mono-mode cylindrical photoelectric emitter has a plastic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 1 LED display allows to identify status of the sensor. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified. · · · This design 18 single mode (thru-beam system) photo-electric transmitter has a PBT case. · · It has a supply voltage of 12V to 24V DC. · · This mono-mode cylindrical photoelectric emitter has a plastic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. · · 1 LED display allows to identify status of the sensor.
Out of stock
Description
Technical Specifications Technical Specifications Through beam photoelectric sensor Housing material Plastic Material of optical surface Plastic Explosion safety category for gas None Scope of delivery of the one-way system Transmitter and receiver Explosion safety category for dust None Laser protection class None Construction type housing Cylinder, screw-thread Type of light Infrared light Sensing mode Dark switching Type of electric connection Connector M12 Setting procedure Teach-In Type of safety acc. IEC 61496-1 1 Maximum output current 100 mA Number of semiconductor outputs with signalling function 0 Number of contact energized outputs with signalling function 0 Opening angle 0 ° Voltage type AC/DC Degree of protection (IP rating) IP65 Operation agent-safety class Safety class 0 Switching frequency 500 Hz Number of protected semiconductor outputs 0 Number of protected contact energized outputs 0 Width sensor – mm Max. output current at protected output 100 mA Light dot – mm² Diameter sensor 18 mm Reaction time 1 ms Min. reflector distance 5000 mm Rated switching distance 15000 mm Height of sensor – mm Switching voltage of OSSD at state “high” – V Wavelength of the sensor – nm Transmission range of the safety field – m Length of sensor 60 mm Max. switching distance 20000 mm AWG-number – Ambient temperature -25 – 55 °C Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Rated control supply voltage at DC 12 – 24 V Suitable for safety functions No With communication interface analogue No Pre failure notice No Analogue output -10 V … +10 V No Analogue output 0 mA … 20 mA No Analogue output 0 V … 10 V No With time function No With monitoring function downstream switching devices No Analogue output 4 mA … 20 mA No With communication interface RS-232 No With communication interface SSI No With restart blockage No With communication interface Ethernet No With communication interface AS-Interface No With communication interface CANOpen No With other analogue output No Reflector included No With communication interface SSD No With communication interface RS-422 No With communication interface PROFIBUS No With communication interface INTERBUS No With communication interface DeviceNet No With communication interface RS-485 No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188162
