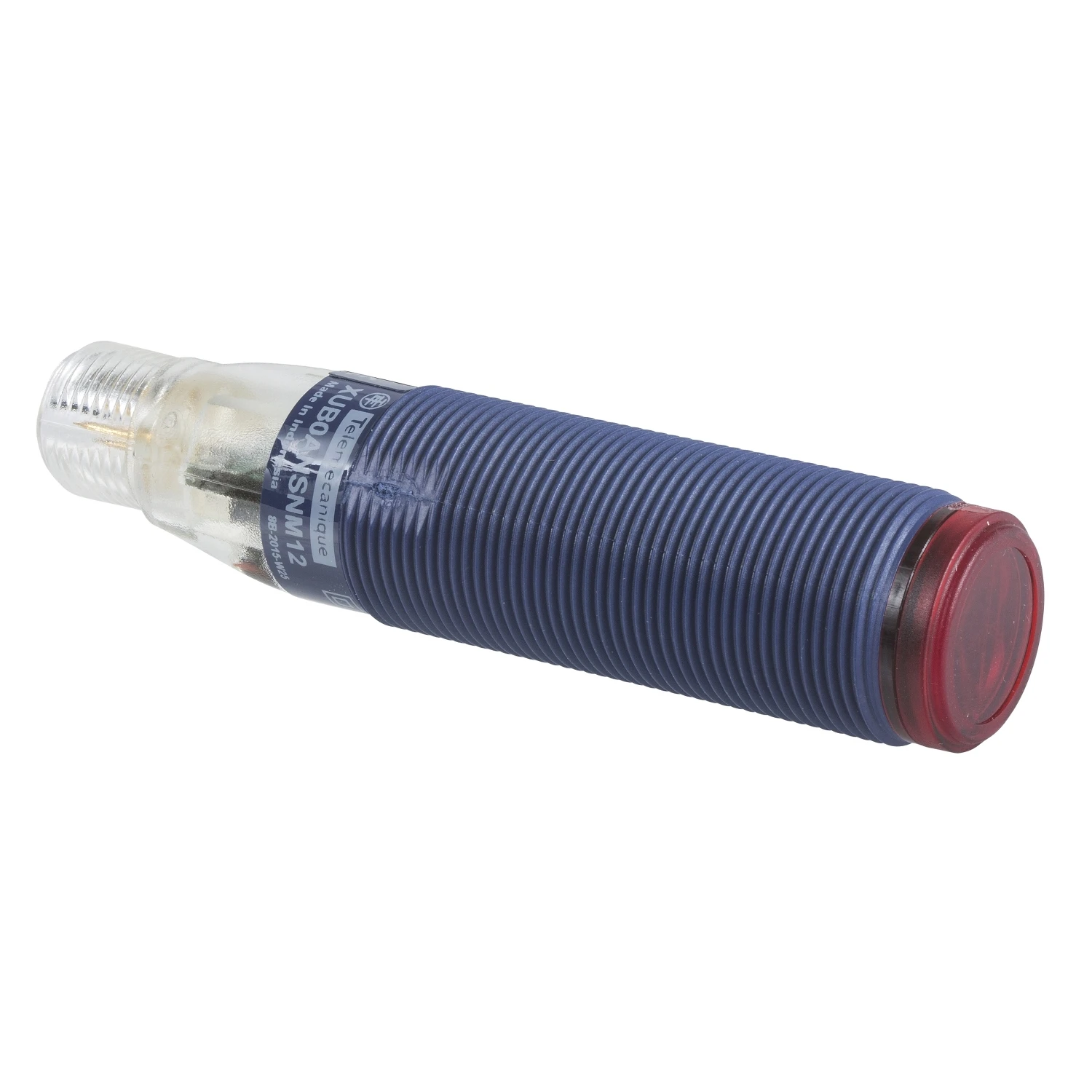

Photo-electric sensor, XUB, polarised, Sn 2m, 12..24VDC, M12

Description

Technical Specifications  Technical Specifications Retroreflective photoelectric sensor Material of optical surface Plastic Housing material Plastic Laser protection class None Explosion safety category for dust None Explosion safety category for gas None Type of light Polarized red light Sensing mode Dark switching Construction type housing Cylinder, screw-thread Type of electric connection Connector M12 Operation agent-safety class Safety class 0 Number of contact energized outputs with signalling function 0 Number of semiconductor outputs with signalling function 1 Degree of protection (IP rating) IP65 Voltage type AC/DC Type of switching output PNP/PNP Type of safety acc. IEC 61496-1 1 Type of switch function Normally open contact (NO) Maximum output current 100 mA Switching frequency 500 Hz Length of sensor 62 mm Max. switching distance 3000 mm Light dot – mm² Transmission range of the safety field – m Number of protected contact energized outputs 0 Number of protected semiconductor outputs 1 Min. reflector distance 1000 mm Rated switching distance 2000 mm Height of sensor – mm Switching voltage of OSSD at state “high” – V Width sensor – mm Reaction time 1 ms Max. output current at protected output 100 mA Wavelength of the sensor – nm Diameter sensor 18 mm Rated control supply voltage at AC 50 Hz – V Ambient temperature -25 – 55 °C Rated control supply voltage at AC 60 Hz – V Rated control supply voltage at DC 12 – 24 V Suitable for safety functions No With communication interface RS-485 No With communication interface RS-232 No Analogue output 0 mA … 20 mA No With monitoring function downstream switching devices No Pre failure notice No With time function No Analogue output 0 V … 10 V No With communication interface Ethernet No With communication interface PROFIBUS No With communication interface INTERBUS No With restart blockage No Reflector included No With communication interface SSD No With communication interface SSI No With communication interface RS-422 No With communication interface analogue No With communication interface AS-Interface No With communication interface DeviceNet No With communication interface CANOpen No Analogue output 4 mA … 20 mA No With other analogue output No Analogue output -10 V … +10 V No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188162
