Telemecanique Sensors Photo-Electric Sensor Xub Polarised Sn 2M 12-24Vdcm12
£95.22 Incl. VAT

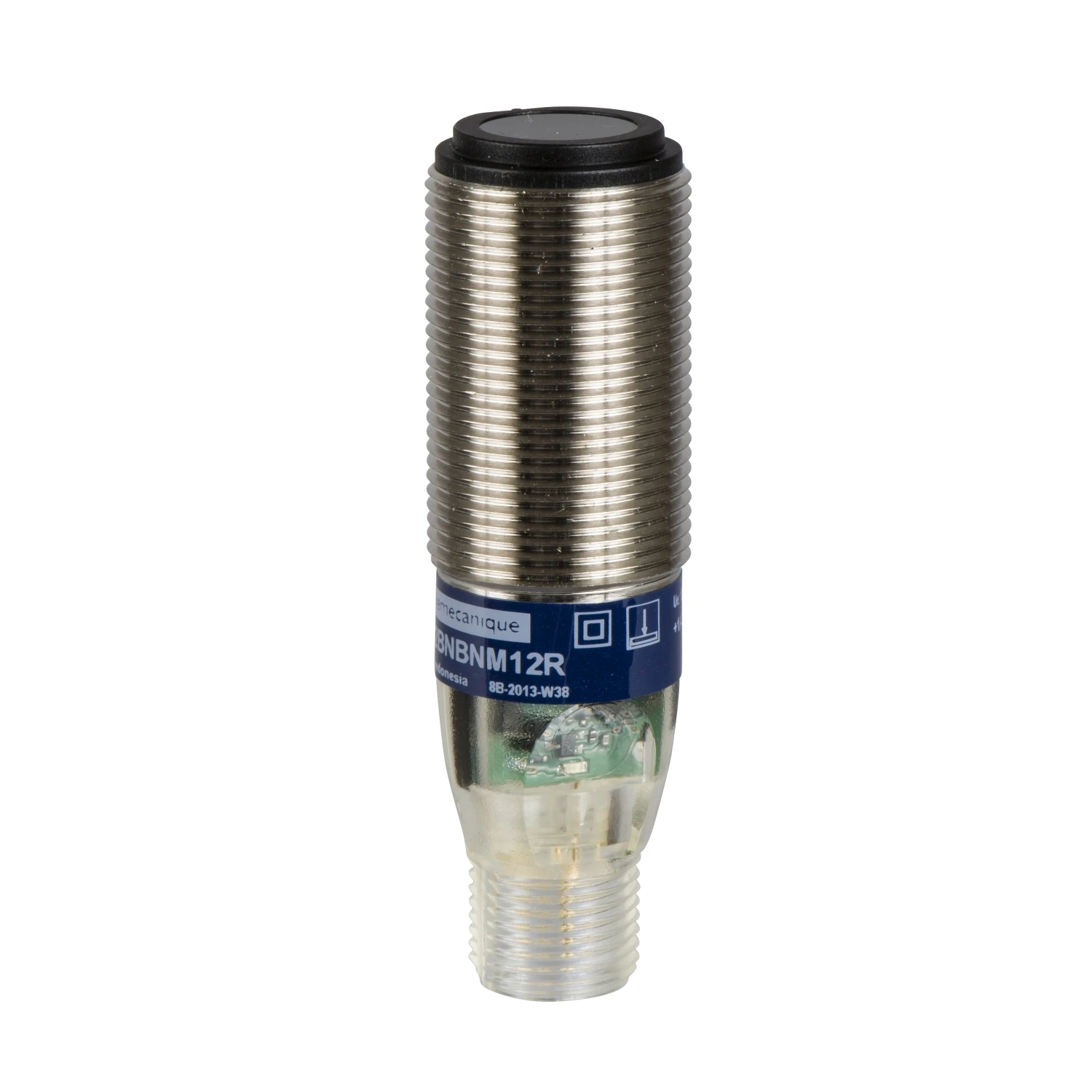

This design 18 single mode (polarised reflex system) photo-electric sensor has a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This mono-mode cylindrical photoelectric sensor has a metallic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides high robustness to the sensor. 1 LED display allows to identify status of the sensor. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified. · · · This design 18 single mode (polarised reflex system) photo-electric sensor has a nickel plated brass case. · · It has a supply voltage of 12V to 24V DC. · · This mono-mode cylindrical photoelectric sensor has a metallic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · Corrosion-resistant and non-magnetic nickel plated brass provides high robustness to the sensor. · · 1 LED display allows to identify status of the sensor. · · Sensor Style: Cylindrical M18
Description
Technical Specifications Technical Specifications Retroreflective photoelectric sensor Type of light Polarized red light Explosion safety category for gas None Explosion safety category for dust None Material of optical surface Plastic Laser protection class None Construction type housing Cylinder, screw-thread Sensing mode Dark switching Type of electric connection Connector M12 Housing material Metal Type of safety acc. IEC 61496-1 1 Type of switching output PNP/PNP Operation agent-safety class Safety class 0 Type of switch function Normally open contact (NO) Degree of protection (IP rating) IP65 Voltage type AC/DC Rated switching distance 2000 mm Max. switching distance 3000 mm Wavelength of the sensor – nm Length of sensor 60 mm Width sensor – mm Height of sensor – mm Min. reflector distance 1000 mm Switching voltage of OSSD at state “high” – V Diameter sensor 18 mm Light dot – mm² Transmission range of the safety field – m Reaction time 1 ms Max. output current at protected output 100 mA Number of protected contact energized outputs 0 Number of protected semiconductor outputs 0 Number of semiconductor outputs with signalling function 1 Maximum output current 100 mA Number of contact energized outputs with signalling function 0 Switching frequency 500 Hz Ambient temperature -25 – 55 °C Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Rated control supply voltage at DC 12 – 24 V With time function No With communication interface RS-485 No With communication interface RS-422 No With communication interface SSD No With communication interface SSI No With communication interface RS-232 No With communication interface Ethernet No With communication interface PROFIBUS No With communication interface INTERBUS No With restart blockage No Analogue output 0 mA … 20 mA No Analogue output 4 mA … 20 mA No With communication interface analogue No With communication interface AS-Interface No With communication interface CANOpen No With communication interface DeviceNet No With other analogue output No Analogue output -10 V … +10 V No Suitable for safety functions No Analogue output 0 V … 10 V No Pre failure notice No With monitoring function downstream switching devices No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188162
