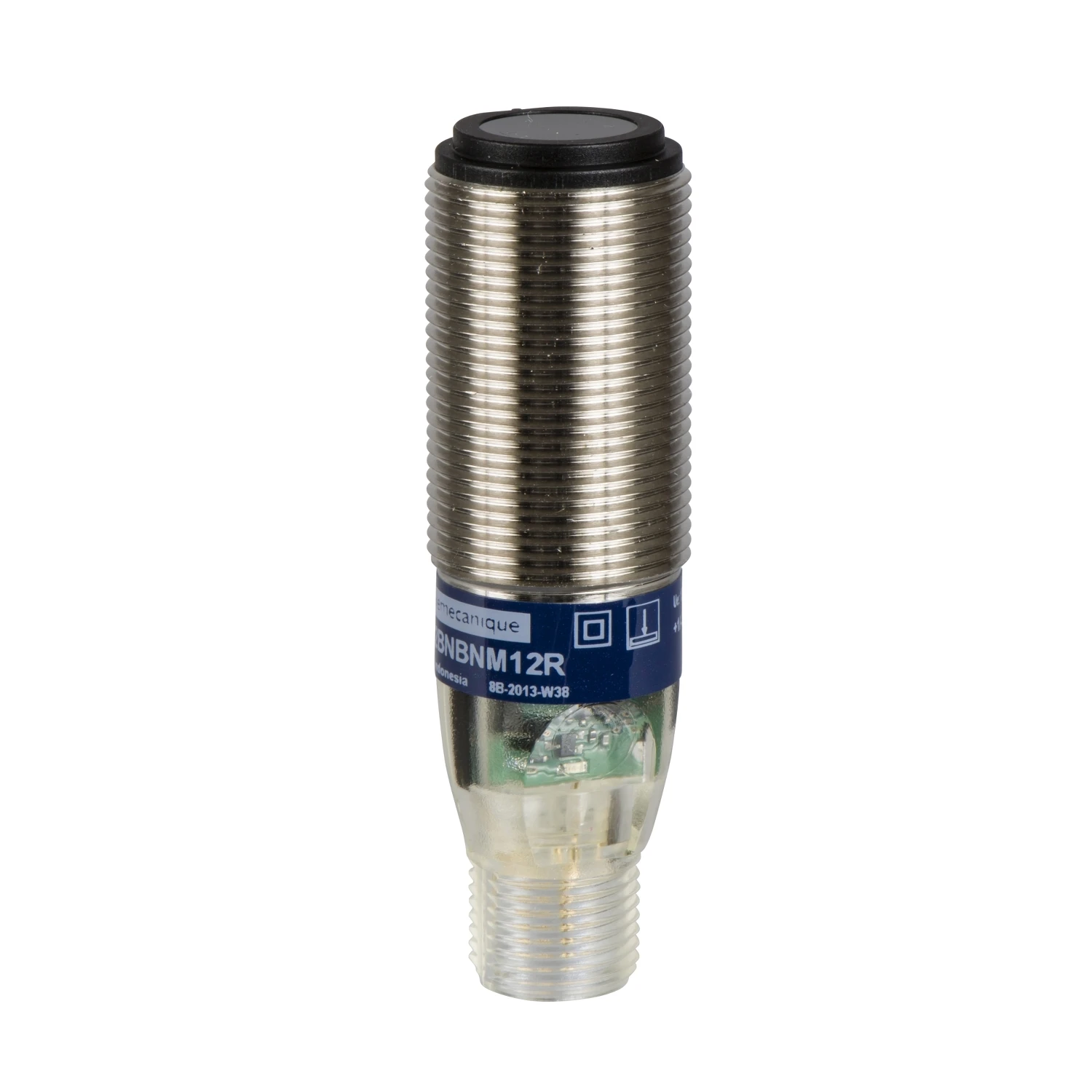

Photo-Electric Sensor Xub Reflex Sn 4M 12-24Vdcm12

Description

Technical Specifications  Technical Specifications Retroreflective photoelectric sensor Explosion safety category for gas None Material of optical surface Plastic Explosion safety category for dust None Construction type housing Cylinder, screw-thread Laser protection class None Sensing mode Dark switching Type of light Infrared light Degree of protection (IP rating) IP65 Operation agent-safety class Safety class 0 Voltage type AC/DC Type of safety acc. IEC 61496-1 1 Type of switching output PNP/PNP Type of switch function Normally open contact (NO) Housing material Metal Type of electric connection Connector M12 Light dot – mm² Transmission range of the safety field – m Reaction time 1 ms Max. output current at protected output 100 mA Width sensor – mm Height of sensor – mm Rated switching distance 4000 mm Max. switching distance 5500 mm Number of protected semiconductor outputs 0 Number of protected contact energized outputs 0 Maximum output current 100 mA Diameter sensor 18 mm Min. reflector distance 1000 mm Length of sensor 60 mm Wavelength of the sensor – nm Switching voltage of OSSD at state “high” – V Number of semiconductor outputs with signalling function 1 Number of contact energized outputs with signalling function 0 Switching frequency 500 Hz Ambient temperature -25 – 55 °C Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Rated control supply voltage at DC 12 – 24 V With communication interface PROFIBUS No With communication interface RS-232 No With communication interface Ethernet No With communication interface RS-485 No With communication interface SSI No With communication interface SSD No With communication interface RS-422 No With restart blockage No With communication interface CANOpen No Analogue output 0 mA … 20 mA No Analogue output 0 V … 10 V No With communication interface AS-Interface No With communication interface analogue No Reflector included No With communication interface INTERBUS No With communication interface DeviceNet No Analogue output 4 mA … 20 mA No With other analogue output No Analogue output -10 V … +10 V No Suitable for safety functions No With time function No Pre failure notice No With monitoring function downstream switching devices No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188162
