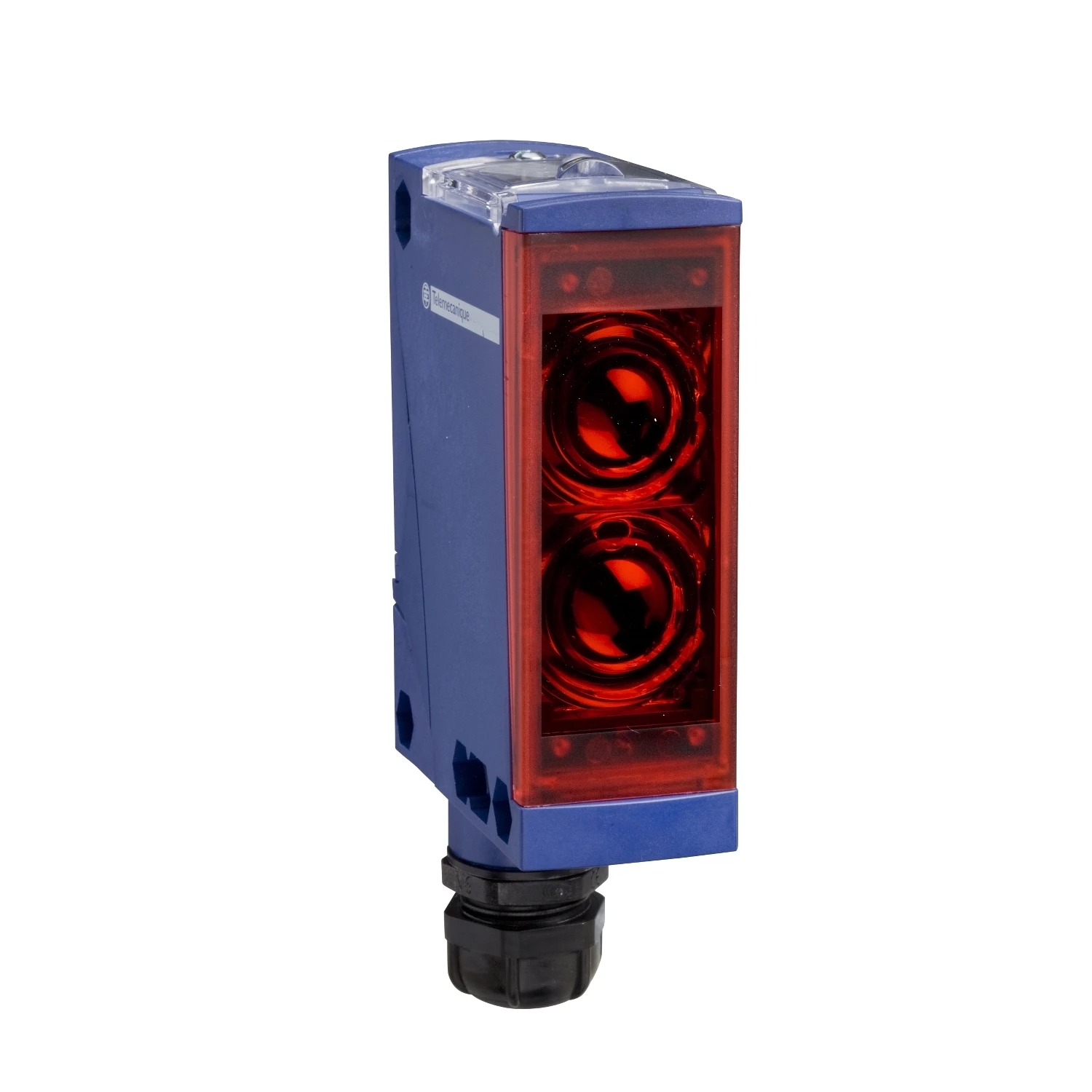

Telemecanique Sensors Photo-electric sensor, XUX, diffuse, Sn 2,1m, 24..240VAC/DC, terminals
£180.13 Incl. VAT
This compact design single mode (diffuse system) photo-electric sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This mono-mode rectangular photoelectric sensor has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 2 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified. · · · This compact design single mode (diffuse system) photo-electric sensor has a PBT case. · · It has a supply voltage of 24V to 240V AC/DC. · · This mono-mode rectangular photoelectric sensor has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. · · It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. · · 2 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting.
Description
Technical Specifications Technical Specifications Diffuse reflective photoelectric sensor Explosion safety category for gas None Explosion safety category for dust None Material of optical surface Plastic Housing material Plastic Setting procedure Manual adjustment Type of light Infrared light Type of switching output Relay contact Sensing mode Dark switching Type of switch function Change-over contact (NO/NC) Construction type housing Special construction Operation agent-safety class Safety class 0 Type of safety acc. IEC 61496-1 1 Degree of protection (IP rating) IP67K Voltage type AC/DC Type of electric connection Screw connection Number of contact energized outputs with signalling function 1 Number of semiconductor outputs with signalling function 0 Switching frequency 20 Hz Maximum output current 3000 mA Light dot – mm² Transmission range of the safety field 0.3 m Number of protected semiconductor outputs 0 Number of protected contact energized outputs 1 Diameter sensor – mm Reaction time 25 ms Min. reflector distance 1 mm AWG-number – Wavelength of the sensor – nm Max. output current at protected output 3000 mA Switching voltage of OSSD at state “high” – V Width sensor 31 mm Length of sensor 77 mm Height of sensor 92 mm Max. switching distance 3000 mm Ambient temperature -25 – 55 °C Rated control supply voltage at AC 50 Hz 24 – 240 V Rated control supply voltage at AC 60 Hz 24 – 240 V Rated control supply voltage at DC 24 – 240 V Operating distance 2100 – 2100 mm With time function No With monitoring function downstream switching devices No Suitable for safety functions No Analogue output -10 V … +10 V No With other analogue output No With communication interface analogue No With communication interface AS-Interface No With communication interface CANOpen No With communication interface DeviceNet No With communication interface RS-232 No With communication interface Ethernet No With communication interface INTERBUS No With communication interface PROFIBUS No Analogue output 0 V … 10 V No Pre failure notice No With restart blockage No Analogue output 0 mA … 20 mA No Analogue output 4 mA … 20 mA No With communication interface SSD No With communication interface RS-485 No With communication interface RS-422 No With communication interface SSI No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188165
