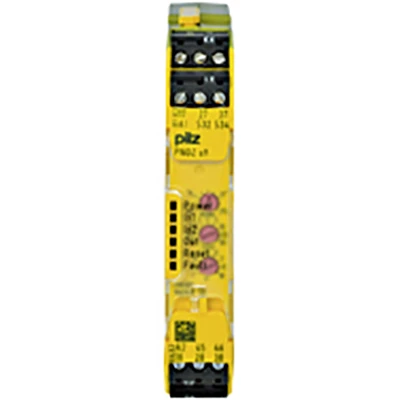

Pilz PNOZ s9 Series Safety Relay 3 N/O 1 N/C 24 VDC
Awaiting product image

Pilz PNOZ s9 Series Safety Relay 3 N/O 1 N/C 24 VDC

£248.23 Incl. VAT

Pilz safety relay applicable for instantaneous contact expansion and delayed contact expansion. This relay also has a safe delay-on energisation/de-energisation timer as well as a safe pulsing timer. · · · Supply Frequency 50/60Hz · · Selectable times: 0.04s – 90s · · Power Consumption: 2 W · · Number of delayed safety contacts: 3 · · Number of auxiliary contacts: 1 · · Terminal Style: Plug-in · · Terminal type: Screw terminal · · 6 A Conventional enclosed thermal current · · Mounting support: DIN Rail · · IP20/40/54 Degree of protection

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 750109 Categories: , , , Brand: Product Code: 1051014821

Description

Technical Specifications  Technical Specifications Device for monitoring of safety-related circuits Model Expansion device Evaluation inputs 1-channel Type of electric connection Screw connection Height 98 mm Width 17.5 mm Depth 120 mm Release-delay 0 – 300 s With approval for BG BIA No Suitable for monitoring of proximity switches No Suitable for monitoring of position switches No With feedback circuit No Suitable for monitoring of valves No Suitable for monitoring of emergency-stop circuits No Suitable for monitoring of optoelectronic protection equipment No Suitable for monitoring of tactile sensors No Suitable for monitoring of magnetic switches No With start input No With muting function No With approval according to UL No With detachable clamps No Rail mounting possible No
