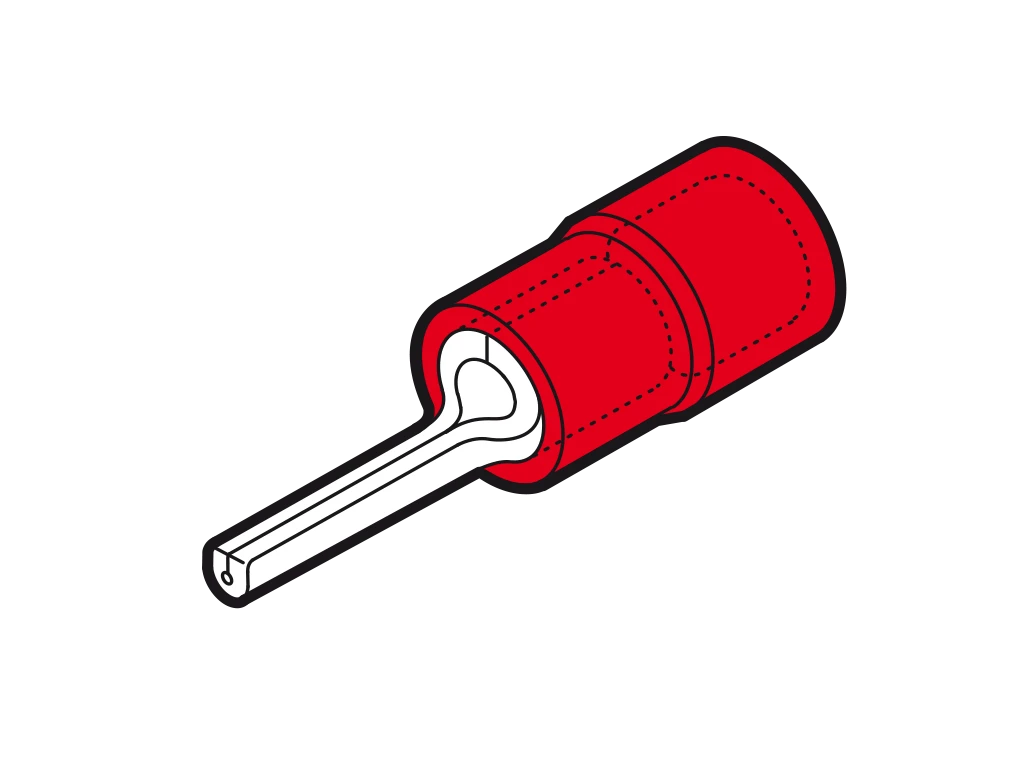

Pin Terminal Red
£0.07 Incl. VAT
0.25mm²-1.5mm² PVC insulated pin terminal 8mm pin length red · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor · · Tab/Pin Size: 8 mm · · Insulation Material: PVC · · Diameter: 3.9 mm · · Length Min Max: 17.9 mm
500 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Solderless copper terminals for copper conductors Flange shape Pin shape Sleeve form Short Material Copper Insulation Polyvinyl chloride (PVC) Colour insulation Red Surface protection Tinned Bolt dimension (metric) – Reel packaging No Suitable for round conductors Yes Suitable for solid cores No According to DIN No For pull protected connections No Nominal cross section 0.25 – 1.5 mm² AWG-range 22 – 16 Max. current (Imax) – A Useful for stranded conductors Yes Suitable for flat conductors No Suitable for fine strand conductors Yes Suitable for high temperatures (to 650 °C) No Suitable for insulated varnish No
