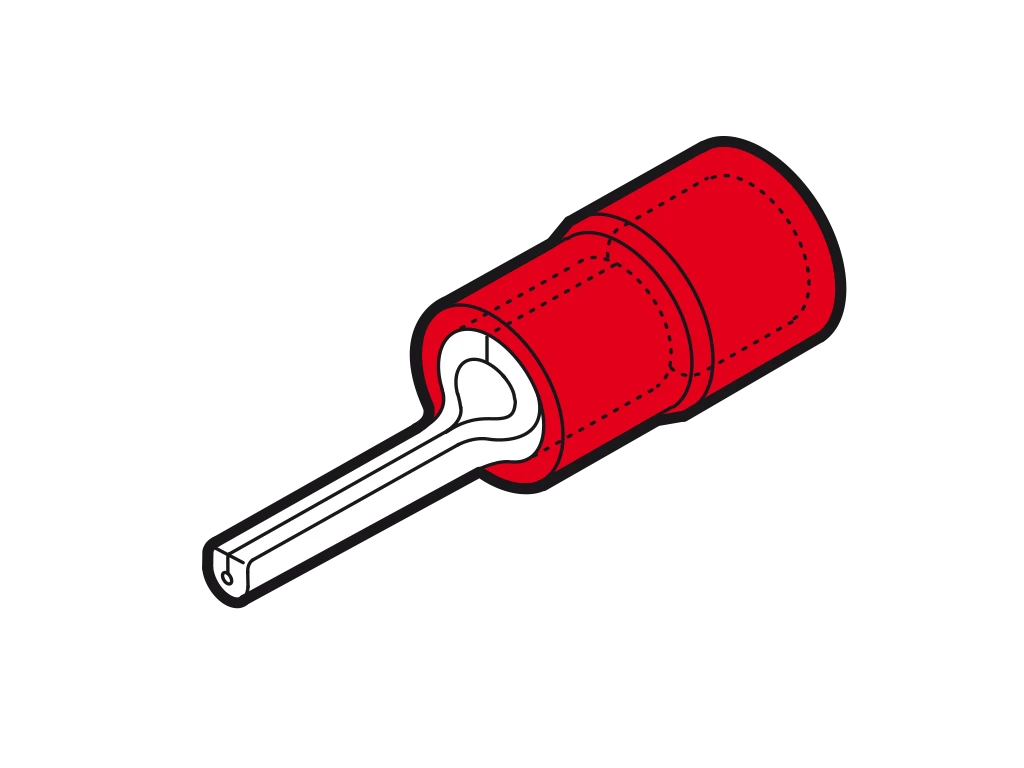

Cembre Pin Terminal Red
0.25mm²-1.5mm² PVC insulated pin terminal 10mm pin length red · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor · · Tab/Pin Size: 10 mm · · Insulation Material: PVC · · Diameter: 3.9 mm · · Length Min Max: 19.9 mm
Description
Technical Specifications Technical Specifications Solderless copper terminals for copper conductors Flange shape Pin shape Sleeve form Short Material Copper Insulation Polyvinyl chloride (PVC) Surface protection Tinned Colour insulation Red Bolt dimension (metric) – Max. current (Imax) – A AWG-range 22 – 16 For pull protected connections No Reel packaging No Suitable for solid cores No Nominal cross section 0.25 – 1.5 mm² According to DIN No Suitable for round conductors Yes Useful for stranded conductors Yes Suitable for flat conductors No Suitable for fine strand conductors Yes Suitable for high temperatures (to 650 °C) No Suitable for insulated varnish No
