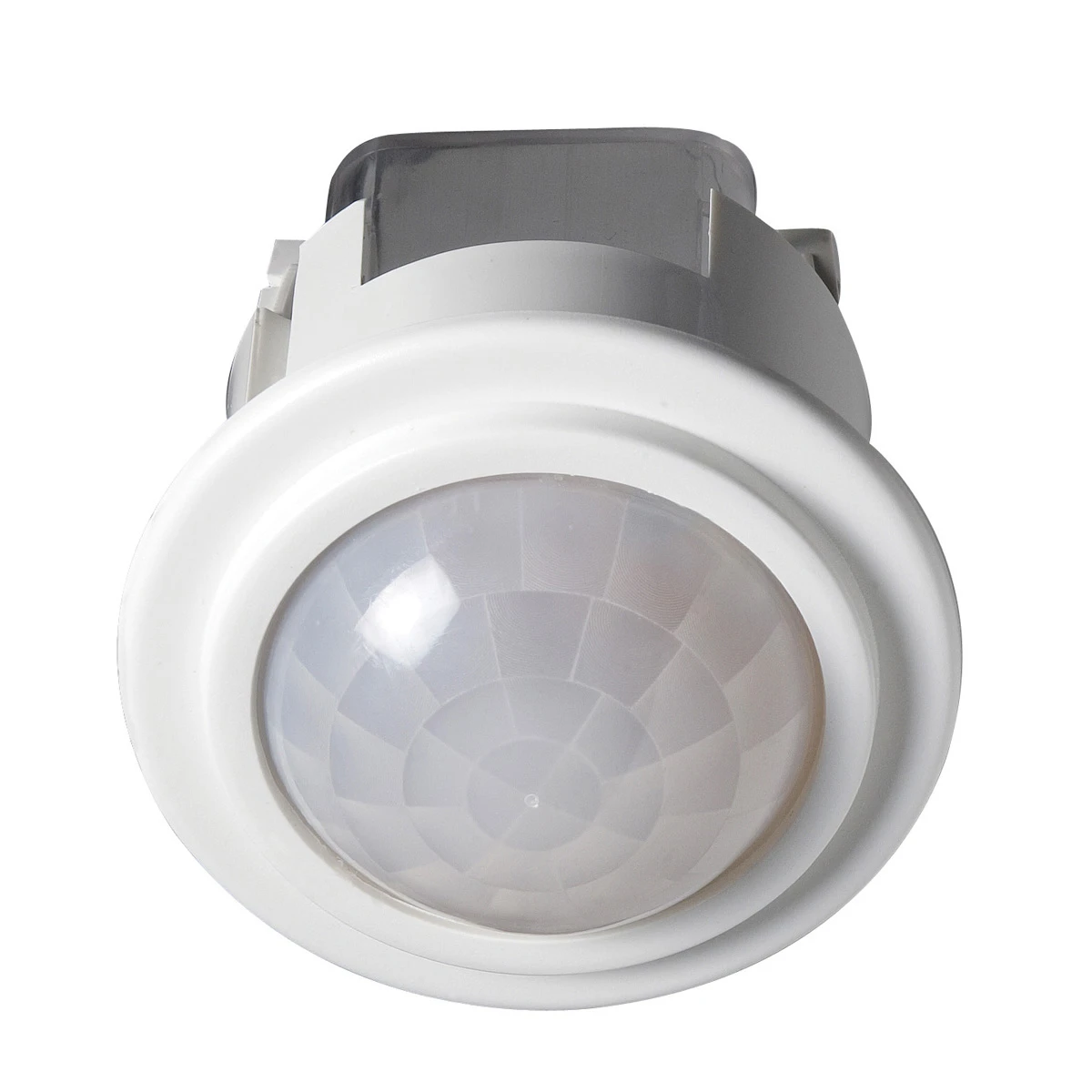

PIR Recessed Adjustable Time Delay 1000W 5m 360° White IP20
PIR Recessed Adjustable Time Delay 1000W 5m 360° White IP20
PIR Recessed Adjustable Time Delay 1000W 5m 360° White IP20 - Image 2

PIR Recessed Adjustable Time Delay 1000W 5m 360° White IP20

£34.10 Incl. VAT

MOTION DETECTOR 360, recessed, IP20, 75mm, White · · · Suitable for recessed indoor applications · · Injection moulded ABS body – impact resistant · · Clear terminal cover, integral clamp and large mains terminals for 2 x 1.5mm conductors · · Terminations are safe and visible and enables loop-in/loop-out for supply to other sensors · · Passive infra red; ensures light is switched on when sensor detects movement of heat, therefore lighting is switched off when the area is vacated and minimize false/unwanted triggering · · Detection range 360, detection distance 9m at 2.8m mounting height · · Adjustable time delay of 5sec to 15min ensures that lighting is switched off with required delay · · Adjustable lux setting of 2lx to 2000lx · · LED load max 300W

16 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RR360-01 Categories: , , Brand: Part Number: 2500209387

Description

Technical Specifications  Technical Specifications Motion detector Colour White Material Plastic Degree of protection (IP rating) IP20 Recess diameter 62 mm Nominal voltage – V Diameter 75 mm Temperature – – – °C Height 60 mm Forced switch on No Dim function with dimmer basic element No Auxiliary input No Forced switch off No Networkable No Suitable for ceiling mounting No Antibacterial treatment No Detection angle horizontal 360 – 360 ° Response value sensitivity adjustable No With DALI interface No Alarm function No Suitable for C-load No Teach-function for response value luminosity No With signal unit No Response value luminosity adjustable No Remote operation No HVAC-control No Animal zone No Constant light control No Transparent No Bridging switch No Creep-under protection No Staircase monitoring No Suitable for wireless transmission No With remote control No Halogen free No · Technical Data Sheet – Click to Download
