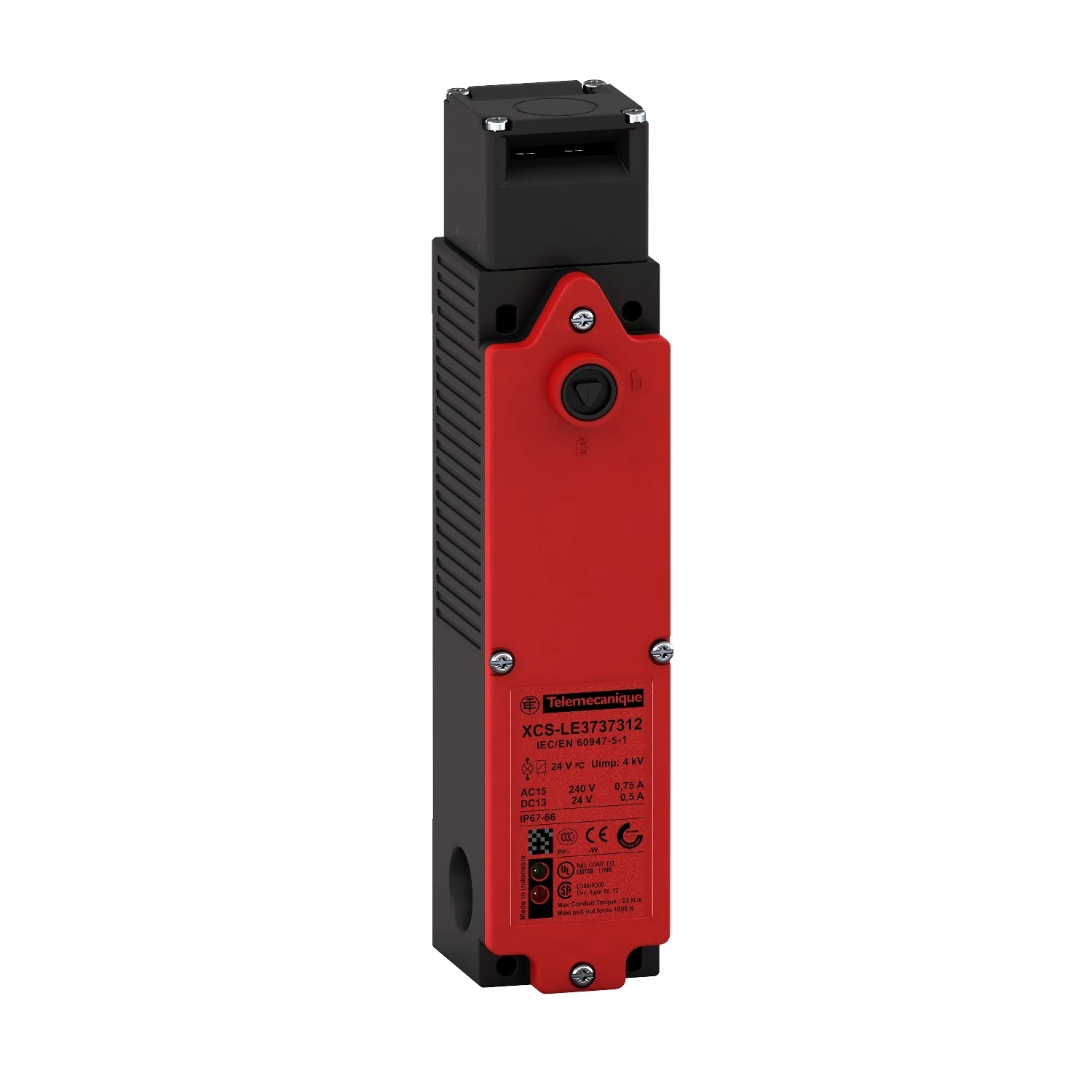

Plastic Safety Switch XCSLE, 4NC+2NO- slow break, 3 entries tapped M20
£232.04 Incl. VAT
This XCSLE Key Operated Safety Switch for guard doors with locking by solenoid has an adjustable turret head and a robust red coated slim polyamide body with 3 x M20 cable gland entries, allowing for flexible installation. It has 1 normally open and 2 normally closed break-before-make (slow break) main contacts actuated by key, contact states given when the key is inserted. And it has 1 normally open and 2 normally closed auxiliary contacts actuated by the solenoid, contact states given when the solenoid is not powered. Its B10D reliability data is 5 500 000. Its IP66 / IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508. · · · This XCSLE Key Operated Safety Switch for guard doors with locking by solenoid has an adjustable turret head and a robust red coated slim polyamide body with 3 x M20 cable gland entries, allowing for flexible installation. · · It has 1 normally open and 2 normally closed break-before-make (slow break) main contacts actuated by key, contact states given when the key is inserted. · · And it has 1 normally open and 2 normally closed auxiliary contacts actuated by the solenoid, contact states given when the solenoid is not powered.
2 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Position switch with guard locking Type of interface for safety communication None Housing material Plastic Interface type None Explosion safety category for gas None Type of guard locking Quiescent current principle Type of switching contact Slow-action switch Type of electric connection Cable entry metrical Number of contacts as change-over contact 0 Rated operation current Ie at AC-15, 125 V – A Rated operation current Ie at AC-15, 24 V – A Number of safety auxiliary contacts 0 Clamping force 1400 N Rated operation current Ie at AC-15, 230 V 0.75 A Rated operation current Ie at DC-13, 230 V – A Degree of protection (IP rating) IP67K Rated operation current Ie at DC-13, 125 V – A Rated control supply voltage Us magnet drive at AC 50 Hz 24 – 24 V Width sensor 44 mm Height of sensor 205 mm Number of contacts as normally closed contact 2 Number of contacts as normally open contact 1 Length of sensor 51 mm Rated operation current Ie at DC-13, 24 V 0.55 A Rated control supply voltage magnet drive at AC 60 Hz 24 – 24 V Rated control supply voltage magnet drive at DC 24 – 24 V Ambient temperature during operating -25 – 60 °C With escape unlocking No With auxiliary release No With status indication Yes Suitable for safety functions Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2189658
