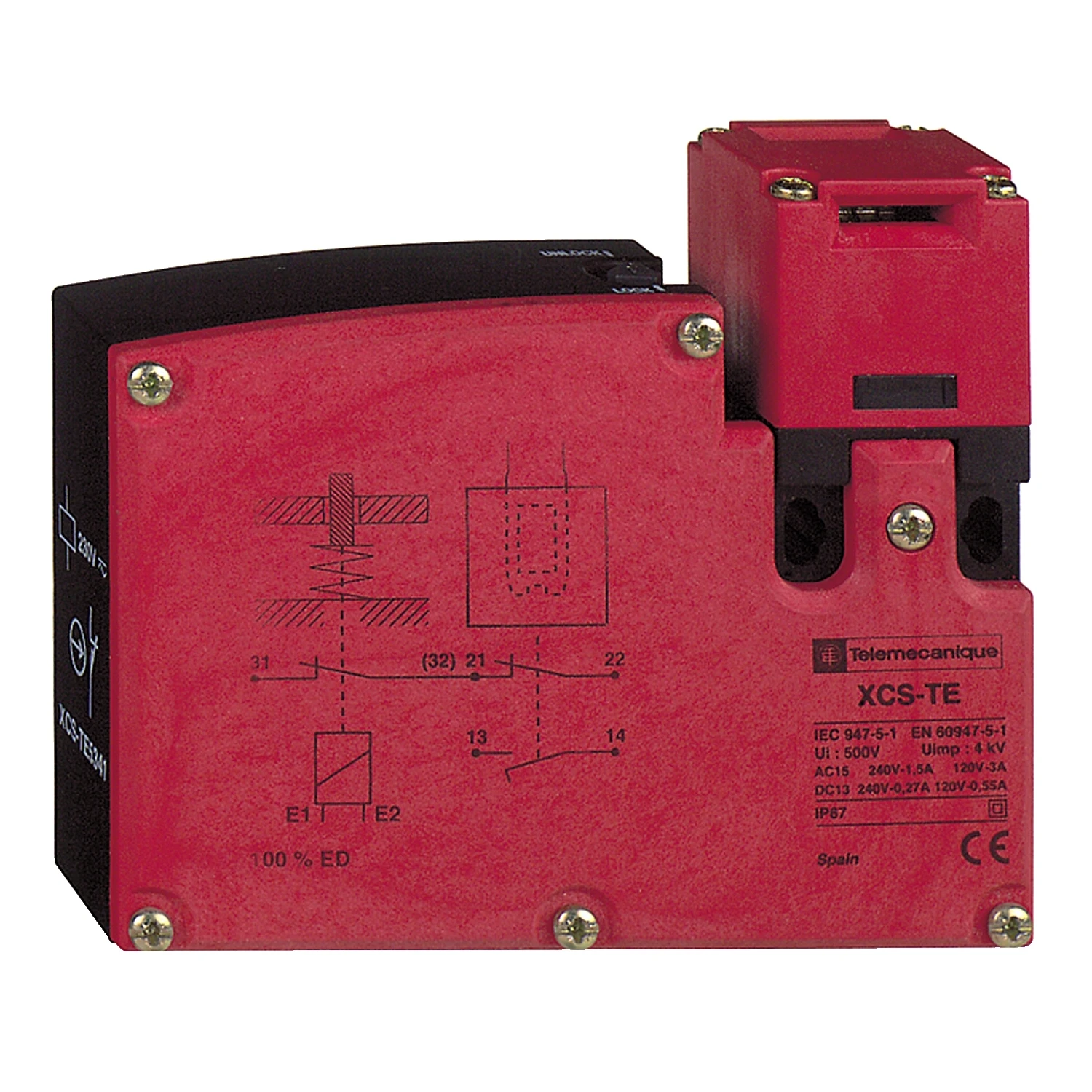

Telemecanique Sensors Plastic Safety Switch Xcste 1NC + 1NO Slow Break 1 Entry Tappedm16-24V
Telemecanique Sensors Plastic Safety Switch Xcste 1NC + 1NO Slow Break 1 Entry Tappedm16-24V
Telemecanique Sensors Plastic Safety Switch Xcste 1NC + 1NO Slow Break 1 Entry Tappedm16-24V - Image 2
Telemecanique Sensors Plastic Safety Switch Xcste 1NC + 1NO Slow Break 1 Entry Tappedm16-24V - Image 3
Telemecanique Sensors Plastic Safety Switch Xcste 1NC + 1NO Slow Break 1 Entry Tappedm16-24V - Image 4

Telemecanique Sensors Plastic Safety Switch Xcste 1NC + 1NO Slow Break 1 Entry Tappedm16-24V

£266.51 Incl. VAT

This XCSTE Key Operated Safety Switch for guard doors with locking by solenoid has an adjustable turret head and a red coated polyamide body with a M16 cable gland entry, allowing for flexible installation. It has 1 normally open and 1 normally closed break-before-make (slow break) main contacts actuated by key, contact states given when the key is inserted. And it has 1 normally closed auxiliary contacts actuated by the solenoid, contact states given when the solenoid is not powered. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508. · · · This XCSTE Key Operated Safety Switch for guard doors with locking by solenoid has an adjustable turret head and a red coated polyamide body with a M16 cable gland entry, allowing for flexible installation. · · Range: Preventa Safety Detection · · It has 1 normally open and 1 normally closed break-before-make (slow break) main contacts actuated by key, contact states given when the key is inserted. · · And it has 1 normally closed auxiliary contacts actuated by the solenoid, contact states given when the solenoid is not powered. · · Depth: 33mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCSTE5312 Categories: , , Brand: Product Code: 2500153870

Description

Technical Specifications  Technical Specifications Position switch with guard locking Explosion safety category for dust None Type of interface for safety communication None Explosion safety category for gas None Interface type None Housing material Plastic Construction type housing Cuboid Type of switching contact Slow-action switch Type of guard locking Quiescent current principle Type of electric connection Cable entry metrical Degree of protection (IP rating) IP67K Length of sensor 33 mm Height of sensor 94 mm Number of contacts as change-over contact 0 Rated operation current Ie at AC-15, 24 V – A Rated operation current Ie at AC-15, 230 V 1.5 A Clamping force 500 N Rated operation current Ie at DC-13, 230 V 0.27 A Number of safety auxiliary contacts 0 Number of contacts as normally closed contact 1 Number of contacts as normally open contact 1 Width sensor 110 mm Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at DC-13, 125 V 0.55 A Rated operation current Ie at AC-15, 125 V 3 A Rated control supply voltage Us magnet drive at AC 50 Hz 24 – 24 V Rated control supply voltage magnet drive at AC 60 Hz 24 – 24 V Rated control supply voltage magnet drive at DC 24 – 24 V Ambient temperature during operating -25 – 60 °C With escape unlocking No With auxiliary release No Suitable for safety functions Yes With status indication Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188112
