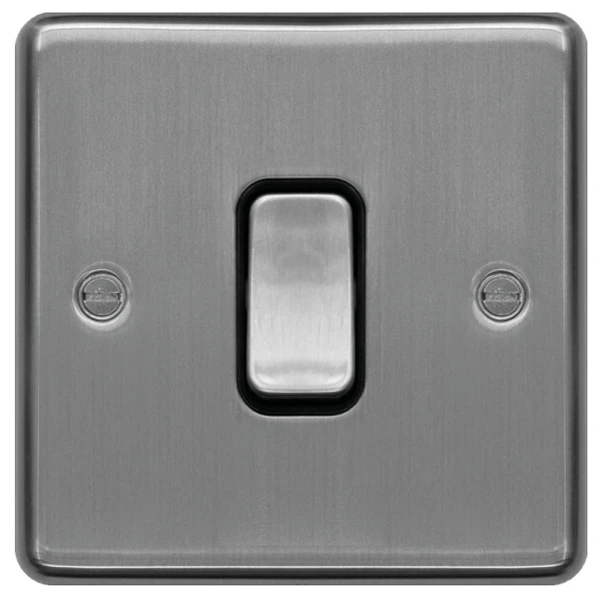

Plate Switch 1 Gang 2 Way 10AX Brushed Steel Black Insert
£8.69 Incl. VAT
Hager Sollysta Wall Switch with brushed steel finish and raised plate has a rated conditional short circuit current 1500A tested with Hager MTN150 6kA B curve MCB. Unique patented loop terminal is used to allow Neutral looping at the switch. Multi gang switch use of a 25mm mounting box depth, will provide increased wiring space. · · · Capacity of each terminal 2 x 6mm², 1 x 10mm² · · Supplied with M3.5 x 20mm long fixing screws · · BS EN 60669-1 Standards
24 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Switch Method of operation Rocker Mounting method Flush mounted Material Metal Colour Stainless steel Illumination No Material qualifier Stainless steel Colour of rocker/switch operator Stainless steel Wiring system Two-way switch Assembly Basic unit with full cover plate Rated current 10 A Depth of device 24 mm Number of module spaces (modular system) 1 Width of device 86 mm Height of device 86 mm Number of rockers/gangs 1 · Technical Data Sheet – Click to Download
