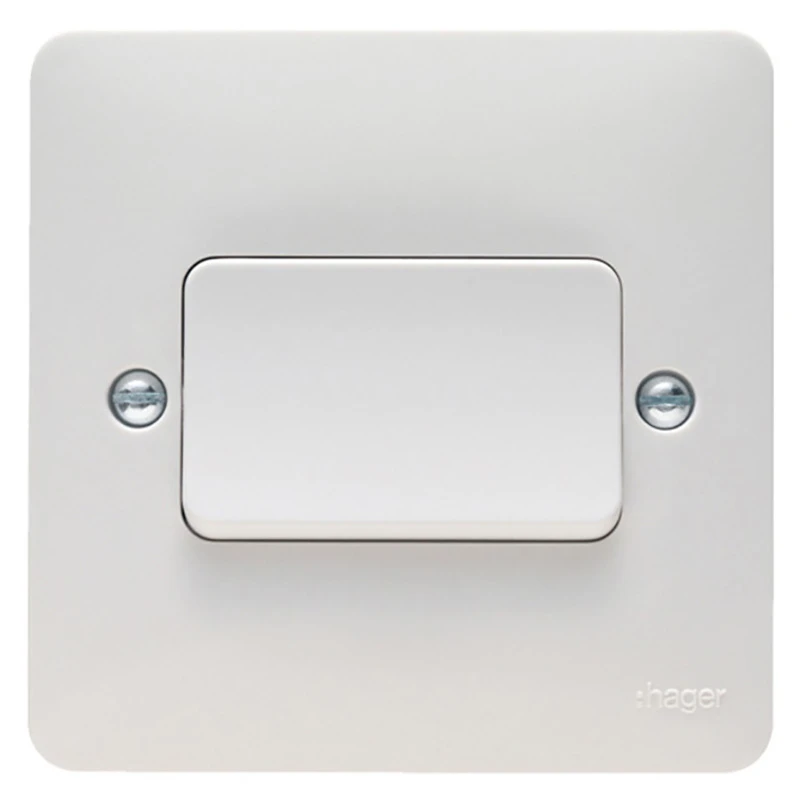

Plate Switch 1 Gang 2 Way Wide Rocker 10AX White
£2.93 Incl. VAT
The WMPS12W features a unique patented LOOP terminal to allow neutral looping at the switch. For multi-gang switch use of a 25mm mounting box will provide increased wiring space. The high-quality face plates provide resistance to impact and heat for maximum robustness and it has been independently tested and certified. The moulded lead-ins help to guide the driver blade to the screw head and a positive wire end stop provides added security of connection. · · · Complies according with BS EN 60669-1 standards · · Supplied with M3.5 x 20mm long fixing screws · · Backed out and captive terminal screws
180 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Switch Type of fastening Screw mounting Method of operation Rocker Assembly Basic unit Mounting method Surface mounted Colour White Colour of rocker/switch operator White Wiring system Two-way switch Degree of protection (IP rating) IP66 Rated current 10 A Number of module spaces (modular system) 1 Width of device 86 mm Height of device 86 mm Depth of device 24 mm · Technical Data Sheet – Click to Download
