Industrial Plugs & Sockets

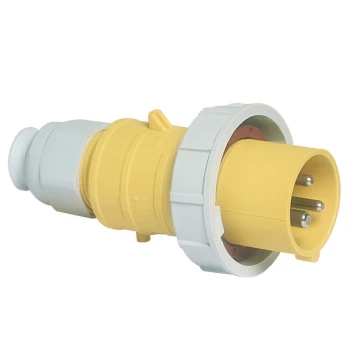

CEENorm Plug 16A 110V 3 Pole IP67

Brand: CEENormProduct code: 21237Go Magpie Ref: 5060062387435

The contact carrier is made of polyamide, the contacts are brass,With a maximum conductor size of 2,5 mm.Multi-Grip cable gland with gasket and integrated strain relief. Screwless housing connection with snap fastening. For cable diameter from 8 up to max. 18 mm.Made with BALS Multi-Grip cable gland which features a rubber seal which is firmly molded on so that it facilitates connection. This means no additional seals and rings are required. The 18 flexible laminae adapt to the cable diameter. The Multi-Grip screw connection achieves a high tensile strength whilst simultaneously protecting the cable. · · · QUICK-CONNECT plugs have two sealing screws to secure the contact carrier to the housing · · Pressing the contact slide with your finger closes the terminal · · Lock engages automatically, and securely on closing · · Lock can be opened by turning clockwise with a screwdriver

£29.53inc VAT£24.61 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications CEE plug Connection system Screw less terminal Material Plastic Degree of protection (IP rating) IP67 Angle of plug Straight Surface finish contacts Nickel-plated Voltage acc. EN 60309-2 110 V (50+60 Hz) yellow Cable entry Swivel Identification colour Yellow Contact material CuZn IEC-amperage 16 A Number of poles 3 Amperage acc. UL/CSA (for UL-version) – A Clock hour position 4 h RAL number 1012 Military model No Phase inverter No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
