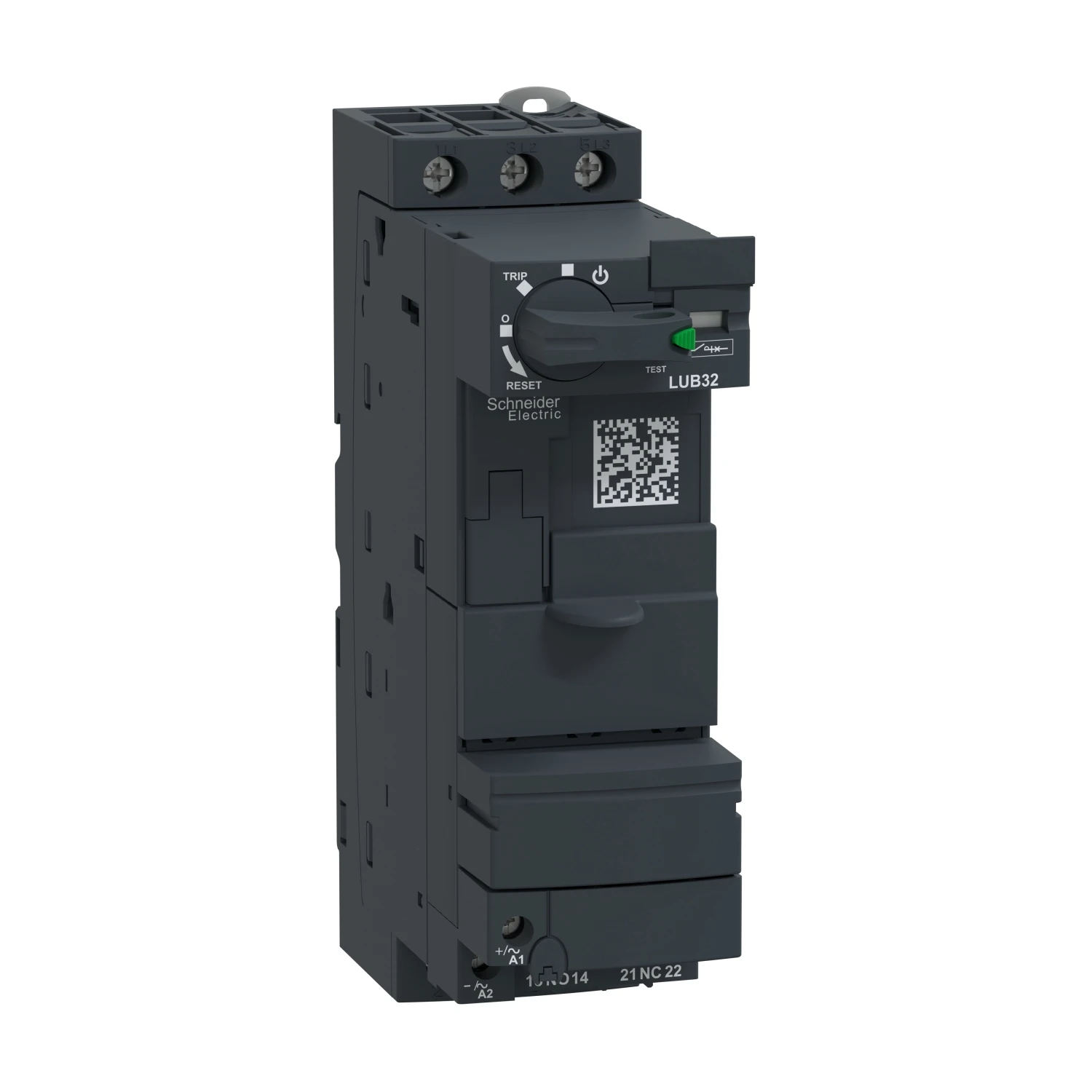

Schneider Electric Power Base Screw Terminal 3 Pole 32A 1 Normally Open 1 Normally Closed
Schneider Electric Power Base Screw Terminal 3 Pole 32A 1 Normally Open 1 Normally Closed
Schneider Electric Power Base Screw Terminal 3 Pole 32A 1 Normally Open 1 Normally Closed - Image 2
Schneider Electric Power Base Screw Terminal 3 Pole 32A 1 Normally Open 1 Normally Closed - Image 3

Schneider Electric Power Base Screw Terminal 3 Pole 32A 1 Normally Open 1 Normally Closed

£102.18 Incl. VAT

TeSys U standard power base, 3 poles (3NO), 32A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a -all in one- starter controller with basic or advanced protection and control functions. It is equipped with a control terminal block, and blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys U standard power base, 3 poles (3NO), 32A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. · · Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a “all in one” starter controller with basic or advanced protection and control functions. · · It is equipped with a control terminal block, and blanking shutters covering the empty cavities. · · It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. · · Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. · · Shock resistance: 10-15gn (open/closed) · · Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · Mechanical durability: 15000000 cycles · · IP20/40 Degree of protection · · Ambient temperature: -25°C to 60°C

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LUB32 Categories: , , , , , Brand: Product Code: 2500187051

Description

Technical Specifications  Technical Specifications Motor starter/Motor starter combination Width 45 mm Number of indicator lights 0 Rated operation current Ie 32 A Rated operation power at AC-3, 230 V, 3-phase 7.5 kW Rated power, 460 V, 60 Hz, 3-phase 15 kW Rated power, 575 V, 60 Hz, 3-phase 15 kW Rated operation current at AC-3, 400 V 32 A Rated conditional short-circuit current, type 1, 480 Y/277 V 10000 A Rated conditional short-circuit current, type 2, 230 V 50000 A Rated conditional short-circuit current, type 1, 600 Y/347 V 4000 A Rated conditional short-circuit current, type 2, 400 V 50000 A Ambient temperature, upper operating limit 70 °C Depth 126 mm Number of command positions 3 Rated operation power at AC-3, 400 V 15 kW Number of auxiliary contacts as normally open contact 1 Number of auxiliary contacts as normally closed contact 1 Height 154 mm Rated control supply voltage at DC 24 – 220 V Overload release current setting – – – A Rated control supply voltage at AC 50 Hz 24 – 240 V Rated control supply voltage at AC 60 Hz 24 – 240 V With fuse No External reset possible No With short-circuit release Yes Supporting protocol for SafetyBUS p No With transformer No Supporting protocol for PROFIBUS No Suitable for emergency stop No Supporting protocol for PROFINET CBA No Supporting protocol for EtherNet/IP No Supporting protocol for Foundation Fieldbus No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for DeviceNet Safety No Supporting protocol for PROFIsafe No Rail mounting possible Yes Supporting protocol for other bus systems No Temperature compensated overload protection No Supporting protocol for PROFINET IO No Supporting protocol for SUCONET No Supporting protocol for LON No Supporting protocol for SERCOS No Supporting protocol for INTERBUS-Safety No Supporting protocol for TCP/IP No Supporting protocol for CAN No Supporting protocol for INTERBUS No Supporting protocol for ASI No Supporting protocol for MODBUS No Supporting protocol for Data-Highway No Supporting protocol for DeviceNet No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188241
