Power interface module, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp
Power interface module, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp
Power interface module, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp - Image 2
Power interface module, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp - Image 3
Power interface module, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp - Image 4

Power interface module, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp

£80.04 Incl. VAT

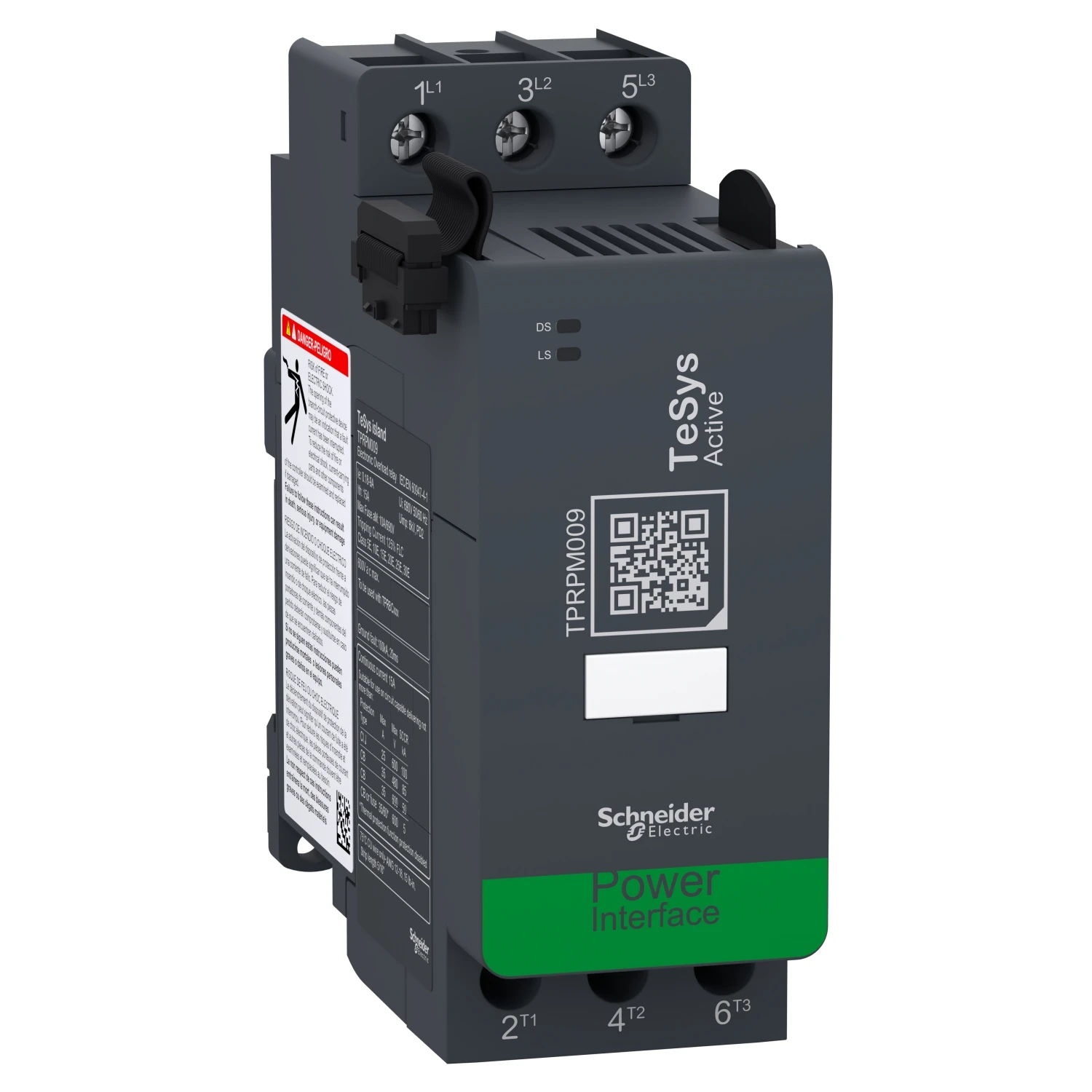

TeSys island power module, 3 poles, 9A/690V. Connected to a TPRBC bus coupler it protects and monitors loads up to 9A and motors up to 4kW@400V / 5hp@480V. External power switching devices could be controlled if associated to a digital IO module TPRDG4X2. It provides motor protection functions including thermal overload (setting 0.18-9A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · · TeSys island power module, 3 poles, 9A/690V. · · Connected to a TPRBC bus coupler it protects and monitors loads up to 9A and motors up to 4kW@400V / 5hp@480V. · · External power switching devices could be controlled if associated to a digital IO module TPRDG4X2. · · It provides motor protection functions including thermal overload (setting 0.18-9A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. · · Monitoring of the load includes max/average voltages and currents, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: TPRPM009 Categories: , , Brand: Part Number: 2501393215

Description

Technical Specifications  Technical Specifications Fieldbus, decentr. periphery – power module, motor switch Height 121 mm Width 45 mm Number of HW-interfaces Wireless 0 Number of HW-interfaces PROFINET 0 Number of motor outlets 1 Number of HW-interfaces USB 0 Number of HW-interfaces other 2 Number of HW-interfaces RS-485 0 Number of inputs 1 Number of HW-interfaces industrial Ethernet 0 Depth 115 mm Number of HW-interfaces RS-422 0 Number of HW-interfaces RS-232 0 Number of HW-interfaces parallel 0 Number of HW-interfaces serial TTY 0 Supply voltage AC 60 Hz – – – V Supporting protocol for TCP/IP No Suitable for safety functions No Permitted voltage at input 0 – 690 V Permitted voltage at output 0 – 690 V Supply voltage DC 20.4 – 28.8 V Supply voltage AC 50 Hz – – – V Rated operation current of the motor 0.18 – 9 A With optical interface No Short-circuit protection, outputs available No Supporting protocol for LON No Supporting protocol for MODBUS No Supporting protocol for KNX No Supporting protocol for CAN No Supporting protocol for ASI No Supporting protocol for PROFIBUS No IO link master No Supporting protocol for INTERBUS No Supporting protocol for Foundation Fieldbus No Supporting protocol for DeviceNet Safety No Radio standard WLAN 802.11 No Radio standard Bluetooth No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for EtherNet/IP No Supporting protocol for Data-Highway No Supporting protocol for DeviceNet No Supporting protocol for SUCONET No Supporting protocol for SERCOS No Supporting protocol for INTERBUS-Safety No Supporting protocol for other bus systems Yes System accessory Yes With brake output No Supporting protocol for PROFINET CBA No Radio standard UMTS No Radio standard GSM No Radio standard GPRS No Supporting protocol for SafetyBUS p No Supporting protocol for PROFIsafe No Supporting protocol for PROFINET IO No With motor current parameter setting No Rack-assembly possible No Wall mounting/direct mounting No Front built-in possible No Appendant operation agent (Ex ib) No Rail mounting possible Yes With thermal motor protection Yes Fieldbus connection over separate bus coupler possible Yes Appendant operation agent (Ex ia) No · Technical Data Sheet – Click to Download
