Schneider Electric Power interface module, TeSys island, 80A AC-1, 80A AC-3, 37kW / 50hp

£152.15 Incl. VAT

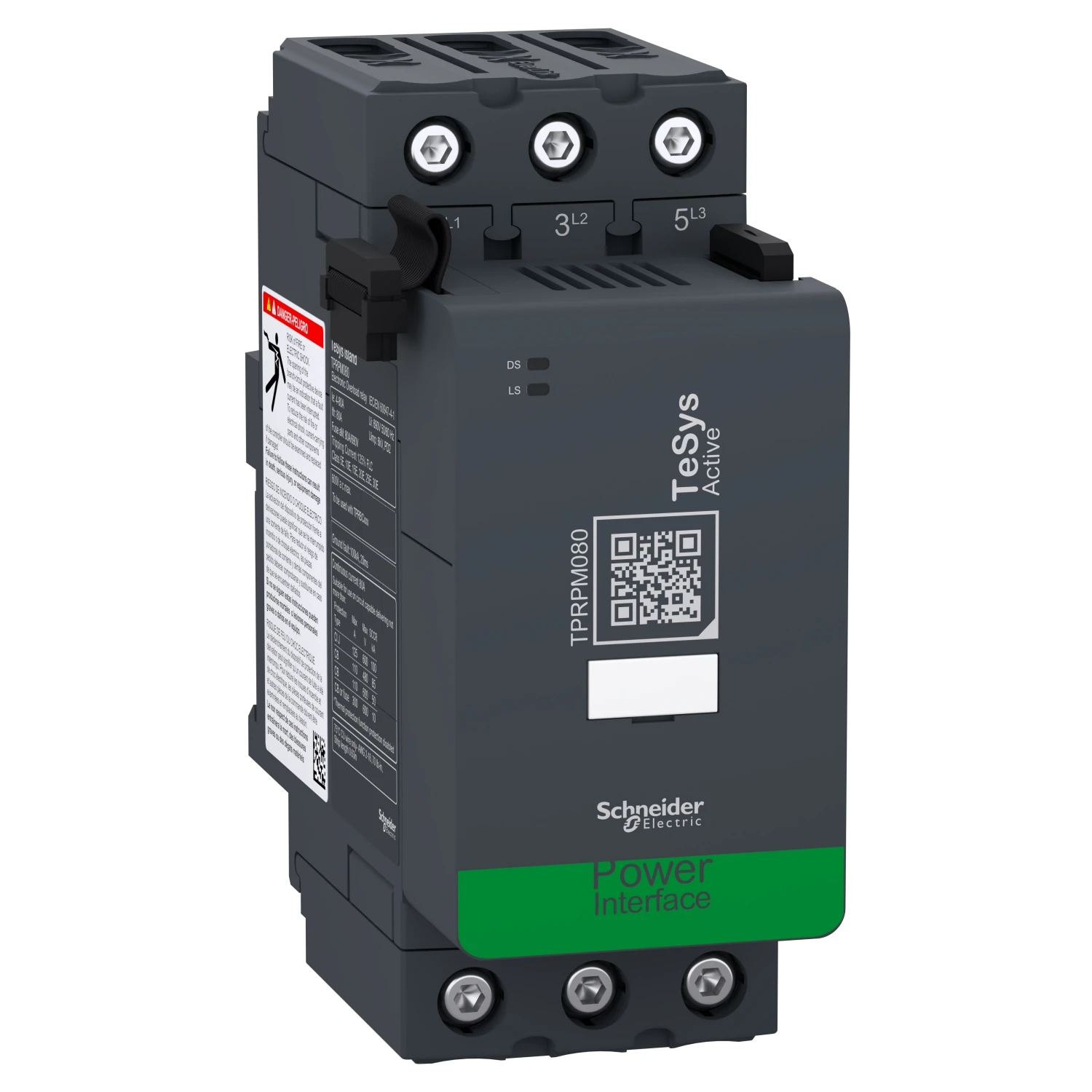

TeSys island power module, 3 poles, 80A/690V. Connected to a TPRBC bus coupler it protects and monitors loads up to 80A and motors up to 37kW@400V / 40hp@480V. External power switching devices could be controlled if associated to a digital IO module TPRDG4X2. It provides motor protection functions including thermal overload (setting 4-80A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · · TeSys island power module, 3 poles, 80A/690V. · · Connected to a TPRBC bus coupler it protects and monitors loads up to 80A and motors up to 37kW@400V / 40hp@480V. · · External power switching devices could be controlled if associated to a digital IO module TPRDG4X2. · · It provides motor protection functions including thermal overload (setting 4-80A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. · · Monitoring of the load includes max/average voltages and currents, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: TPRPM080 Categories: , , , , , Brand: Product Code: 2501393217

Description

Technical Specifications  Technical Specifications Fieldbus, decentr. periphery – power module, motor switch Height 136 mm Depth 125 mm Width 55 mm Number of HW-interfaces USB 0 Number of HW-interfaces Wireless 0 Number of HW-interfaces PROFINET 0 Number of motor outlets 1 Number of HW-interfaces parallel 0 Number of HW-interfaces other 2 Number of HW-interfaces serial TTY 0 Number of HW-interfaces industrial Ethernet 0 Number of HW-interfaces RS-232 0 Number of HW-interfaces RS-422 0 Number of HW-interfaces RS-485 0 Number of inputs 1 Rated operation current of the motor 4 – 80 A Supply voltage AC 50 Hz – – – V Supply voltage AC 60 Hz – – – V Supply voltage DC 20.4 – 28.8 V Permitted voltage at output 0 – 690 V Permitted voltage at input 0 – 690 V Supporting protocol for LON No Suitable for safety functions No Supporting protocol for ASI No Supporting protocol for TCP/IP No Supporting protocol for PROFIBUS No Supporting protocol for CAN No With optical interface No Short-circuit protection, outputs available No Supporting protocol for KNX No Supporting protocol for MODBUS No Supporting protocol for INTERBUS No Supporting protocol for Data-Highway No Supporting protocol for SERCOS No Supporting protocol for INTERBUS-Safety No Radio standard Bluetooth No Radio standard WLAN 802.11 No Supporting protocol for DeviceNet No Supporting protocol for SUCONET No Supporting protocol for other bus systems Yes System accessory Yes With brake output No With motor current parameter setting No With thermal motor protection Yes Fieldbus connection over separate bus coupler possible Yes Wall mounting/direct mounting No Appendant operation agent (Ex ia) No Appendant operation agent (Ex ib) No Front built-in possible No Rack-assembly possible No IO link master No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for EtherNet/IP No Supporting protocol for DeviceNet Safety No Supporting protocol for Foundation Fieldbus No Supporting protocol for PROFINET IO No Supporting protocol for PROFINET CBA No Supporting protocol for PROFIsafe No Supporting protocol for SafetyBUS p No Radio standard GPRS No Radio standard GSM No Radio standard UMTS No Rail mounting possible Yes · Technical Data Sheet – Click to Download
