Power Meter Mounting 1Mod2Eth Upto 63Th H - 1.1m 4Di/2Do 52Alarms
Power Meter Mounting 1Mod2Eth Upto 63Th H - 1.1m 4Di/2Do 52Alarms
Power Meter Mounting 1Mod2Eth Upto 63Th H - 1.1m 4Di/2Do 52Alarms - Image 2
Power Meter Mounting 1Mod2Eth Upto 63Th H - 1.1m 4Di/2Do 52Alarms - Image 3

Power Meter Mounting 1Mod2Eth Upto 63Th H – 1.1m 4Di/2Do 52Alarms

£1,392.35 Incl. VAT

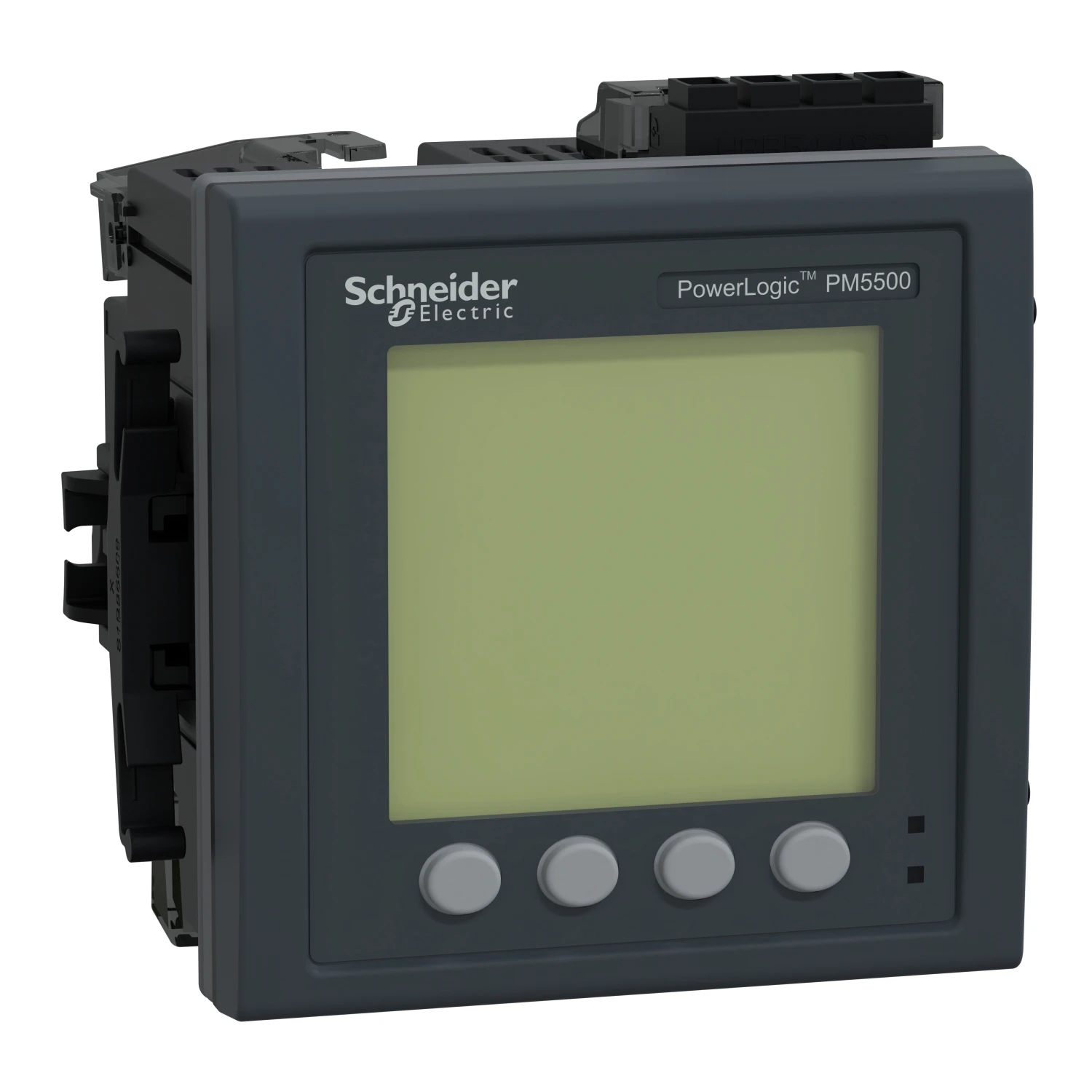

PM5560 power meter 4DI/2DO Modbus & Eth · · · This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. · · The meter provides Class 0.2S accuracy per IEC 62053-22 standard and 128 samples per cycle. · · The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 63rd Harmonic. · · Include 1.1 MegaBytes of memory for up to 14 selectable parameters with configurable interval and duration. · · This meter also feature the direct monitoring of neutral current. · · The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 480 VAC and 125 to 250 VDC. · · Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. · · The range of measurement voltage between Phases is 20 to 690 VAC at 45 to 65 Hz. · · Measurement range between Phase and Neutral is 20 to 400VAC at 45 to 65 Hz. · · Communication protocol are Modbus RTU and ASCII 2 wires with RS485 port support plus Modbus TCP/IP, Ethernet/IP and BACnet/IP based on 10/100 Mbit/s, daisy chain Ethernet with RJ45 port support.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: METSEPM5560 Categories: , Brand: Part Number: 2500641535

Description

Technical Specifications  Technical Specifications Electricity meter Accuracy class C Pulse output Optic Interface type RS-485 Pole type Four conductor Degree of protection (IP rating) IP52 Tariff type Multi-tariff Pulse type S0 Suitable for Purchase Type of indicator Digital Tariff control External Nominal current (In) 10 A Max. current (Imax) 20 A Width in number of modular spacings 6 Type of meter Electronic Energy type Effective power and reactive power Model Measurement transformer Mounting method Plug-in technique Number of positions total (counter) 0 Frequency 45 – 65 Hz Nominal voltage (Un) N-L 20 – 400 V Nominal voltage (Un) L-L 35 – 690 V Pulse rate 1 – 9999999 Imp/kWh (kvarh) Calibrated Yes Escapement mechanism No EEC40 signature No With lock code No Measuring type load profile Yes · Technical Data Sheet – Click to Download
