Power Meter Mounting Modbus Upto 31st H – 256K 2Di/2Do 35Alarms

£626.10 Incl. VAT

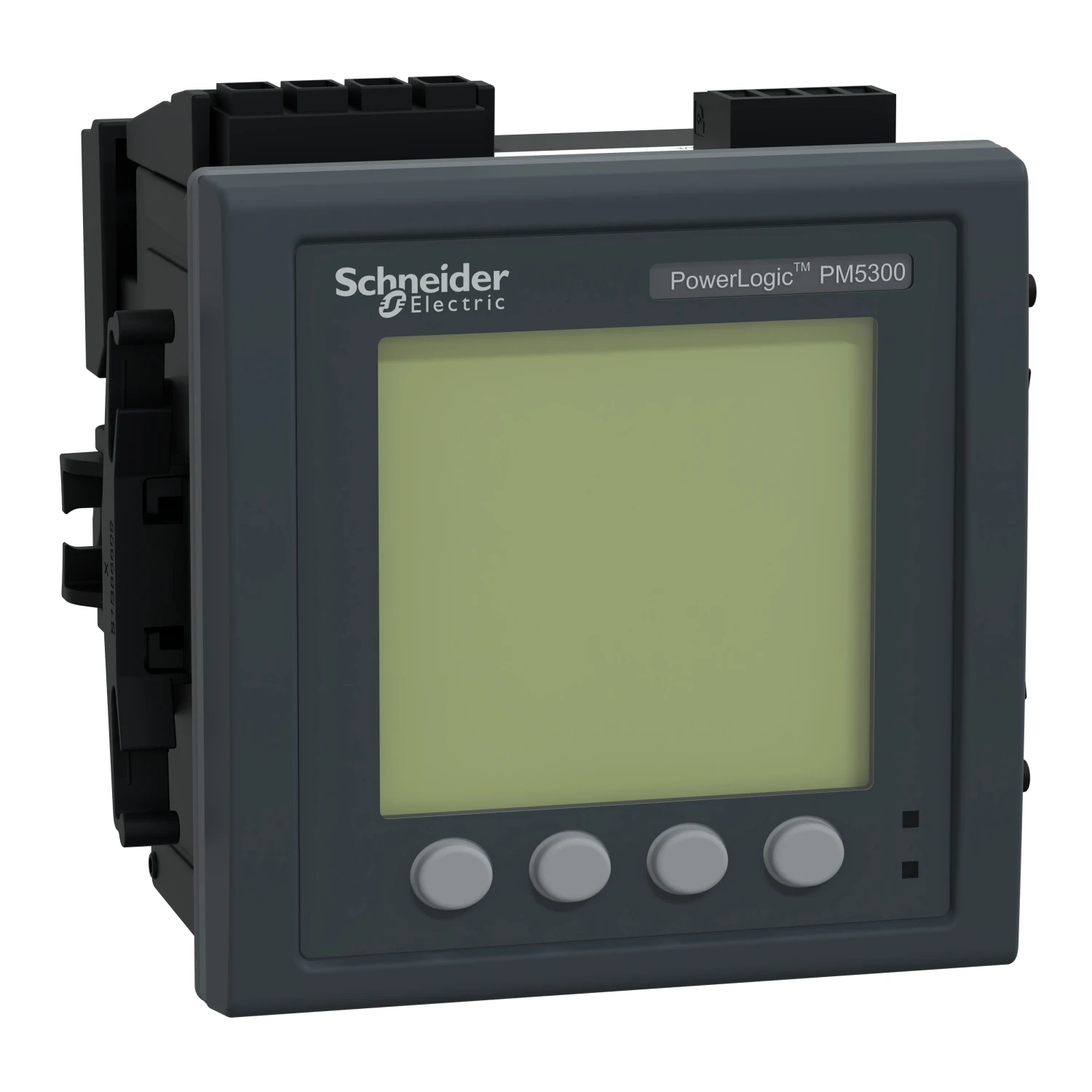

PM5330 power meter 2DI/2DO/2REL Modbus · · · This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. · · The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. · · The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. · · Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. · · The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. · · Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. · · The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. · · Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. · · Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support.

12 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: METSEPM5330 Categories: , Brand: Part Number: 2500641531

Description

Technical Specifications  Technical Specifications Electricity meter Accuracy class C Pulse output Electrical Interface type RS-485 Tariff type Multi-tariff Pulse type S0 Degree of protection (IP rating) IP52 Suitable for Purchase Type of indicator Digital Mounting method Plug-in technique Tariff control External Type of meter Electronic Energy type Effective power and reactive power Pole type Three conductor Model Measurement transformer Width in number of modular spacings 6 Max. current (Imax) 20 A Number of positions total (counter) 0 Nominal current (In) 8.5 A Frequency 45 – 65 Hz Nominal voltage (Un) N-L 20 – 400 V Nominal voltage (Un) L-L 35 – 690 V Pulse rate 1 – 9999999 Imp/kWh (kvarh) Escapement mechanism No EEC40 signature No With lock code No Measuring type load profile Yes Calibrated Yes · Technical Data Sheet – Click to Download
