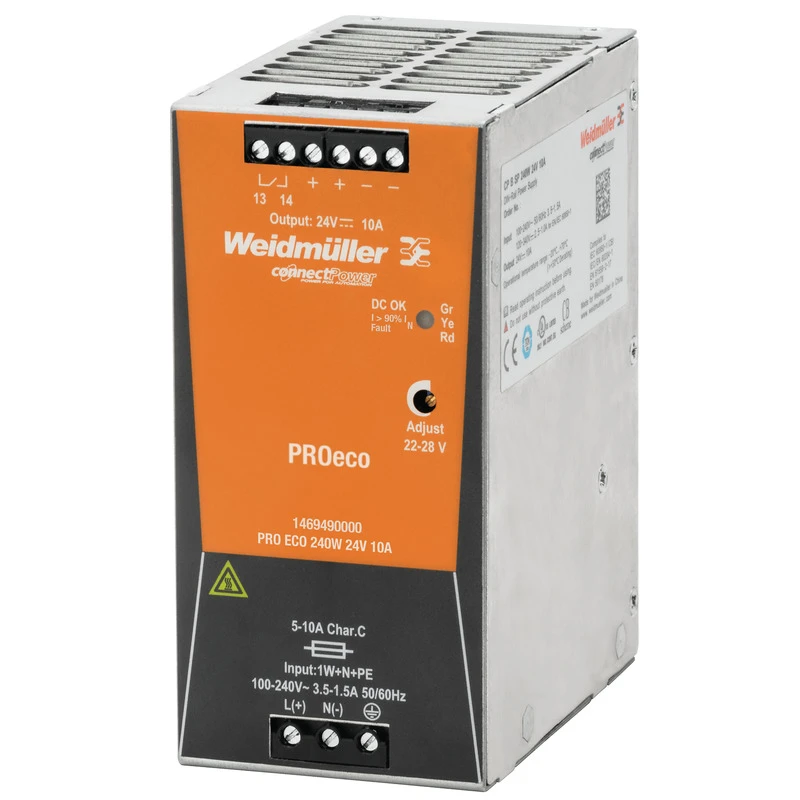

Weidmuller Power Supply Unit Pro Eco Switch-Mode 240W 24V 10A
Weidmuller Power Supply Unit Pro Eco Switch-Mode 240W 24V 10A
Weidmuller Power Supply Unit Pro Eco Switch-Mode 240W 24V 10A - Image 2

Weidmuller Power Supply Unit Pro Eco Switch-Mode 240W 24V 10A

£160.20 Incl. VAT

This model offers all the basic functions and delivers impressively high performance and flexibility. The PROeco switch mode power supply unit features a compact design, high efficiency and is extremely easy to maintain. Short-circuit and overload resistance, it can be universally used in all applications, wide-ranging safety functions and compatibility with our diode and capacitance modules, together with UPS components for setting up a redundant power supply, characterise solutions with PROeco. · · · Operating temperature: -25°C to 70°C · · Storage temperature: -40°C to 85°C · · Unrestricted capacitive load · · Overload protection · · Protection against inverse voltage · · Protection against over heating · · Short-circuit protection · · Floating contact

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1469490000 Categories: , , , , , Brand: Product Code: 2500703413

Description

Technical Specifications  Technical Specifications AC/DC-power supply SIL according to IEC 61508 None Voltage type of supply voltage AC/DC Degree of protection (IP rating) IP20 Type of electric connection Screw connection Depth 100 mm Recess height 225 mm Width 60 mm Power output 494 W Max. output current 1 10 A 1st secondary output voltage at DC 24 – 24 V Height 125 mm Rated supply voltage at AC 50 Hz 85 – 264 V Rated supply voltage at DC 80 – 370 V Rated supply voltage at AC 60 Hz 85 – 264 V Modular version No Secondary voltage adjustable Yes Short-circuit-proof Yes Stabilized Yes Output voltage stabilized Yes Rail mounting possible Yes Suitable for safety functions No Direct mounting possible Yes · Technical Data Sheet – Click to Download
