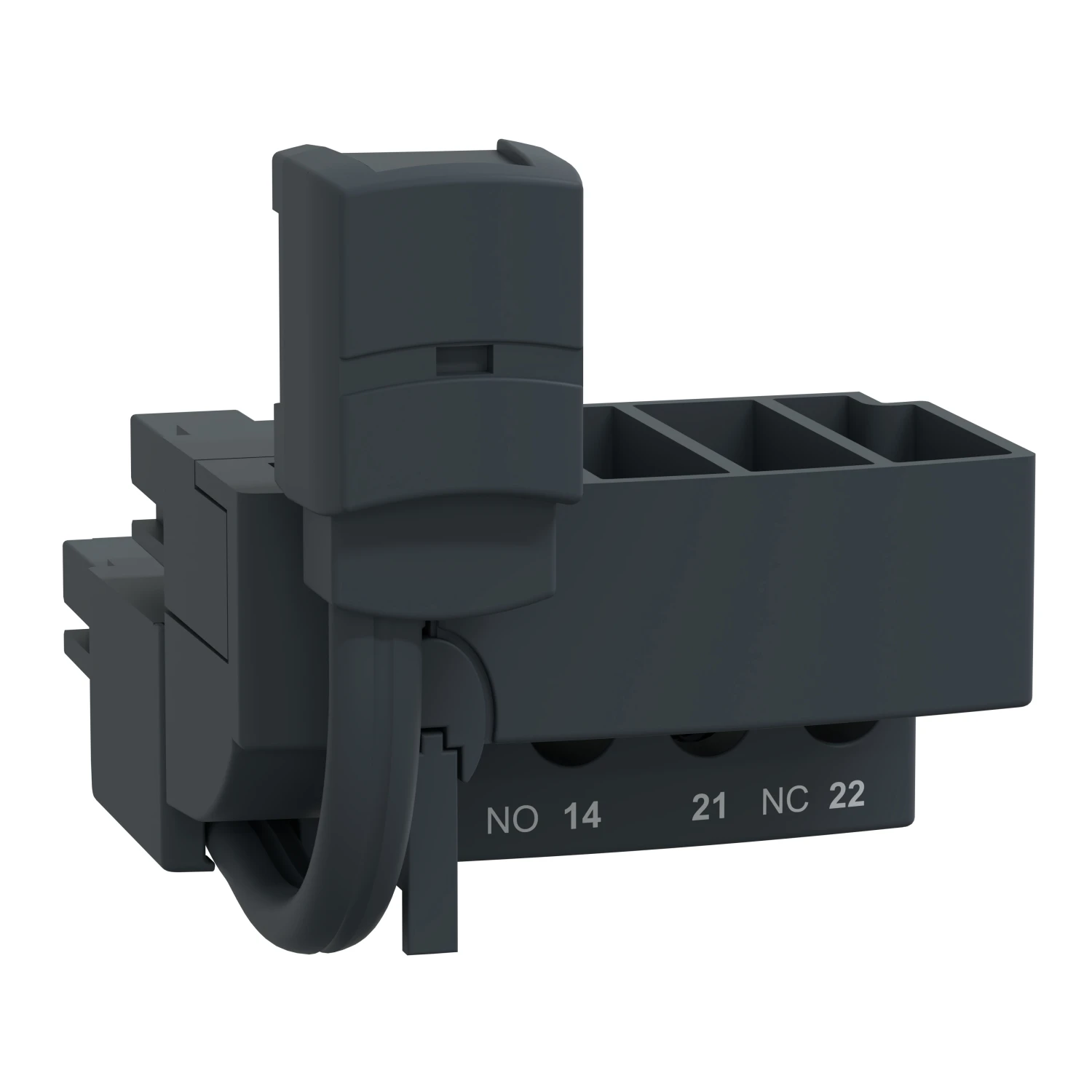

Pre-wired connection, for LUB, coil to communication module, Profibus

TeSys U control terminal block to be inserted in power bases LUB120, LUB320, LUB380 for the centralized control of a starter controller. To be used for ON/OFF control of one direction motor applications with Profibus DP, CANopen, DeviceNet, Advantys STB remote control. It provides screw clamp terminals to connect the internal auxiliary contacts 1NO+1NC, and a pre-wired control cable to be connected to a communication module LULC07, LULC08, LULC09, LULC15 (to be ordered separately). It is powered by the associated communication module. Green Premium compliant (RoHS/REACh). · · · TeSys U control terminal block to be inserted in power bases LUB120, LUB320, LUB380 for the centralized control of a starter controller. · · To be used for ON/OFF control of one direction motor applications with Profibus DP, CANopen, DeviceNet, Advantys STB remote control. · · It provides screw clamp terminals to connect the internal auxiliary contacts 1NO+1NC, and a pre-wired control cable to be connected to a communication module LULC07, LULC08, LULC09, LULC15 (to be ordered separately). · · It is powered by the associated communication module. · · Pre-assembled and ready-to-use · · It comes complete with an earthing kit, fuse links and a removable gland plate with cable knockouts.
